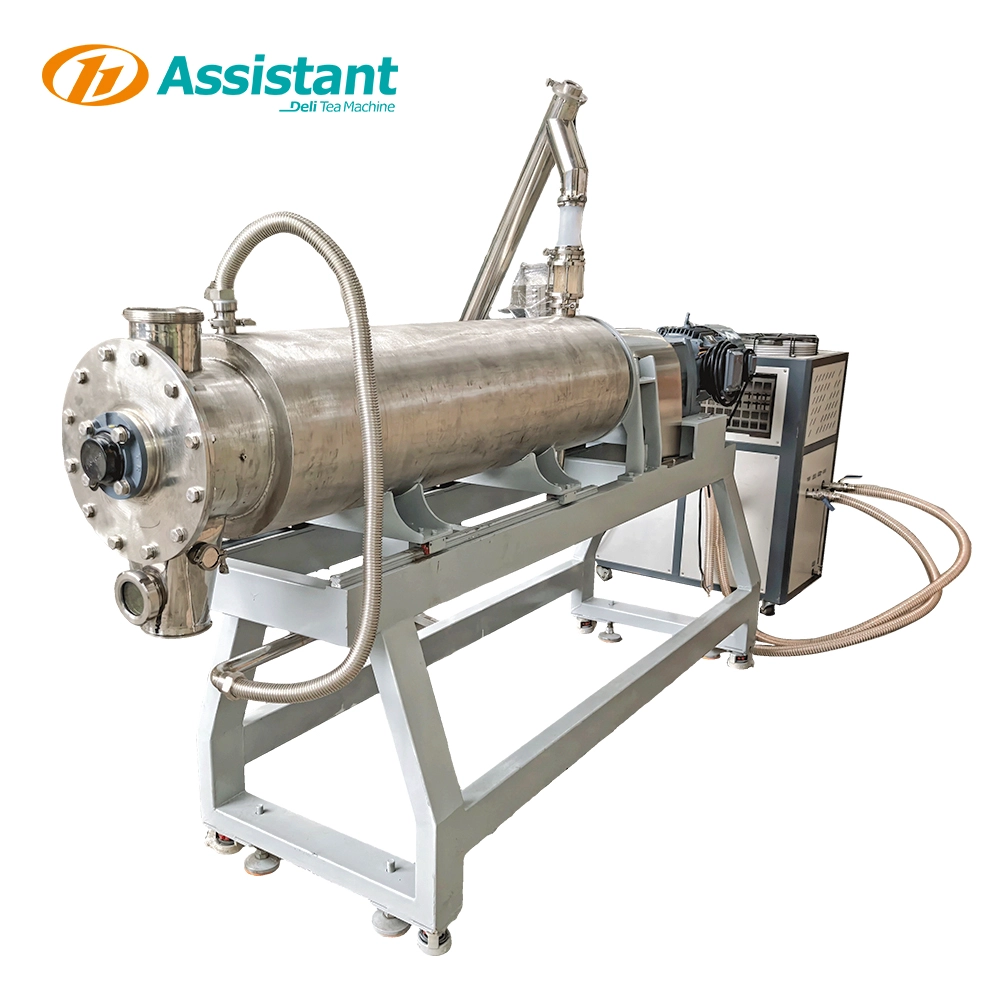

The DQM-150 features a robust 110L inner and outer 304 stainless steel tank powered by an 11kw pure copper core reduction motor. The machine employs an automated feeding system with a 60L large-capacity hopper, transferring raw materials via a flexible screw conveyor driven by a speed-adjustable motor (0-300r/min).
| DESCRIPTION |
The DQM-150 features a robust 110L inner and outer 304 stainless steel tank powered by an 11kw pure copper core reduction motor. The machine employs an automated feeding system with a 60L large-capacity hopper, transferring raw materials via a flexible screw conveyor driven by a speed-adjustable motor (0-300r/min).
| ADVANTAGE |
Continuous High Yield: Capable of continuous feeding and powder collection without machine downtime, delivering a high output of 15-30kg/h, vastly outperforming traditional ball mills.

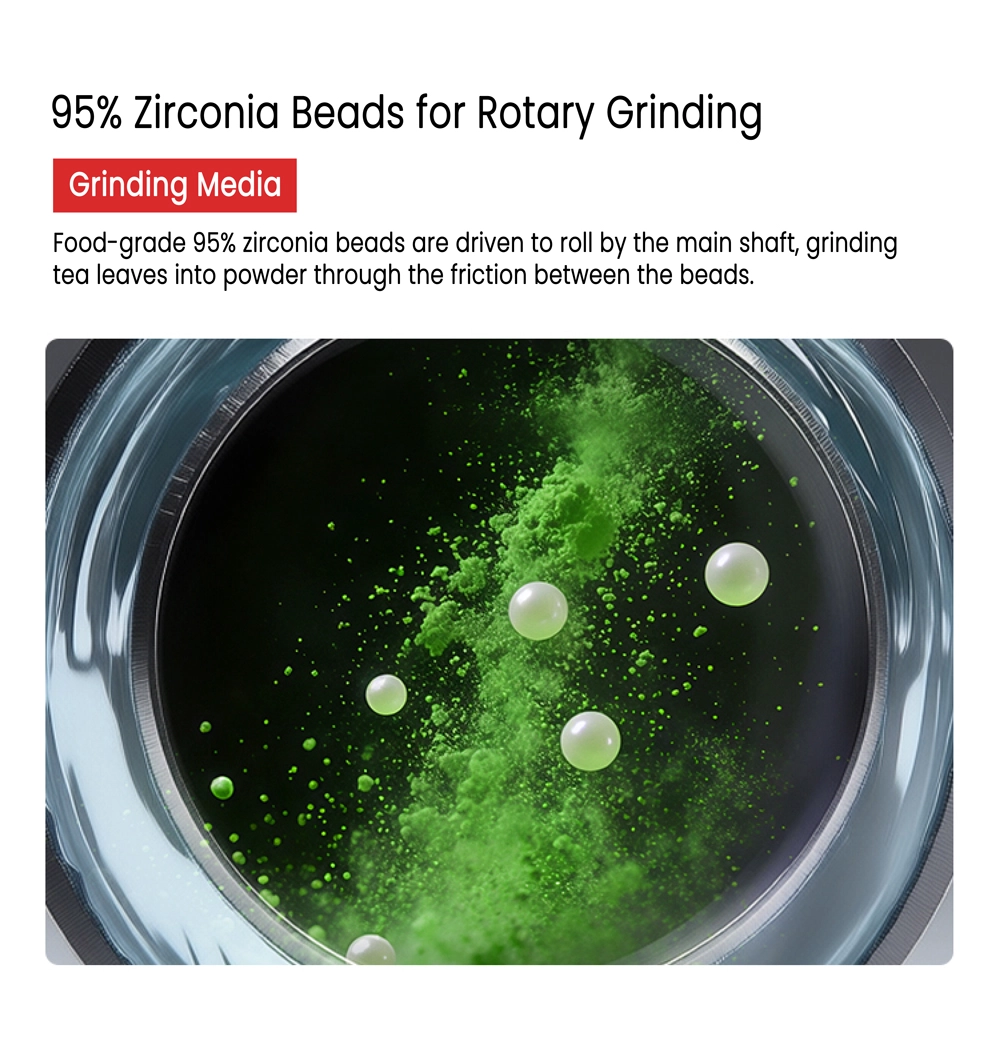

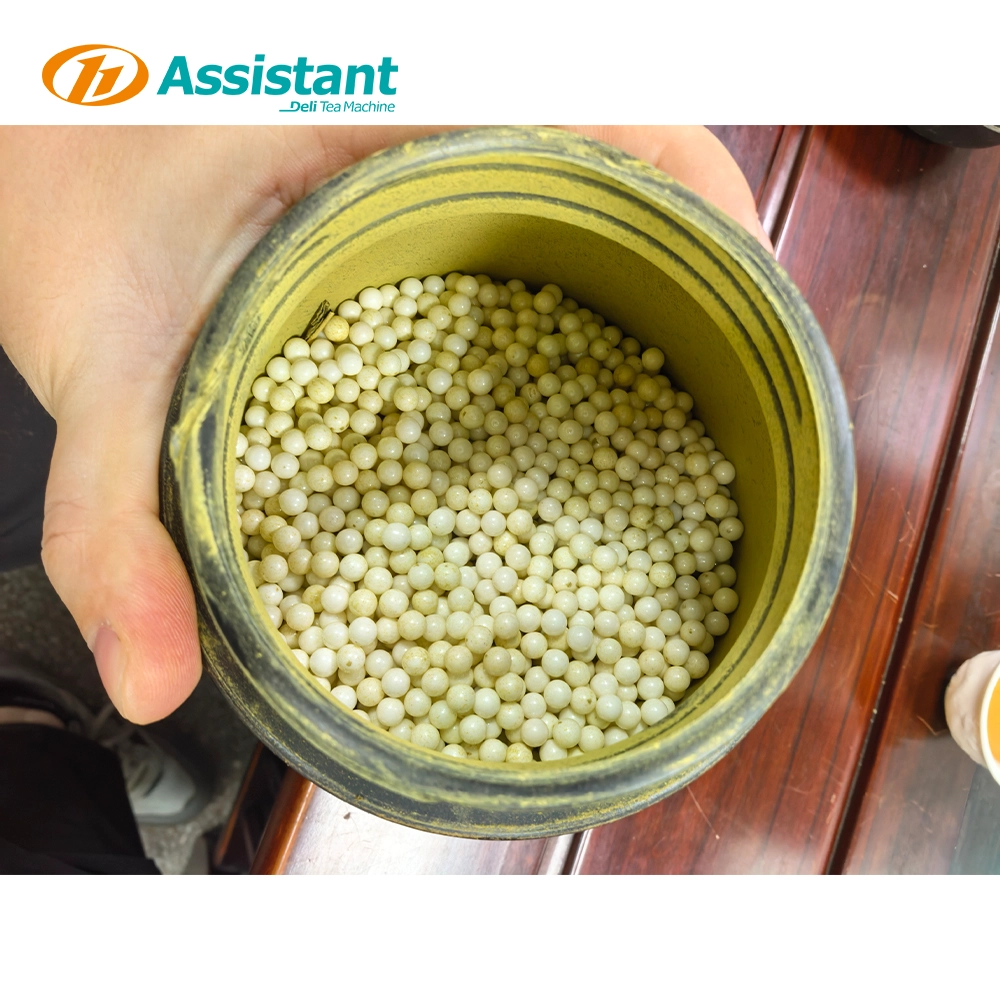

Ultra-Fine & Safe Grinding: Utilizes small, food-grade 95% zirconia beads instead of alumina beads, preventing heavy metal contamination and achieving an ultra-fine, uniform powder up to 2500 mesh.
Low-Temperature Preservation: The built-in water-cooling system keeps the output temperature at approximately 40°C, touching human body temperature, which is essential for preserving the tea's color and fragrance.
Magnetic Filtration: The powder outlet can be equipped with a magnet to absorb and filter out any metallic impurities, ensuring food safety.

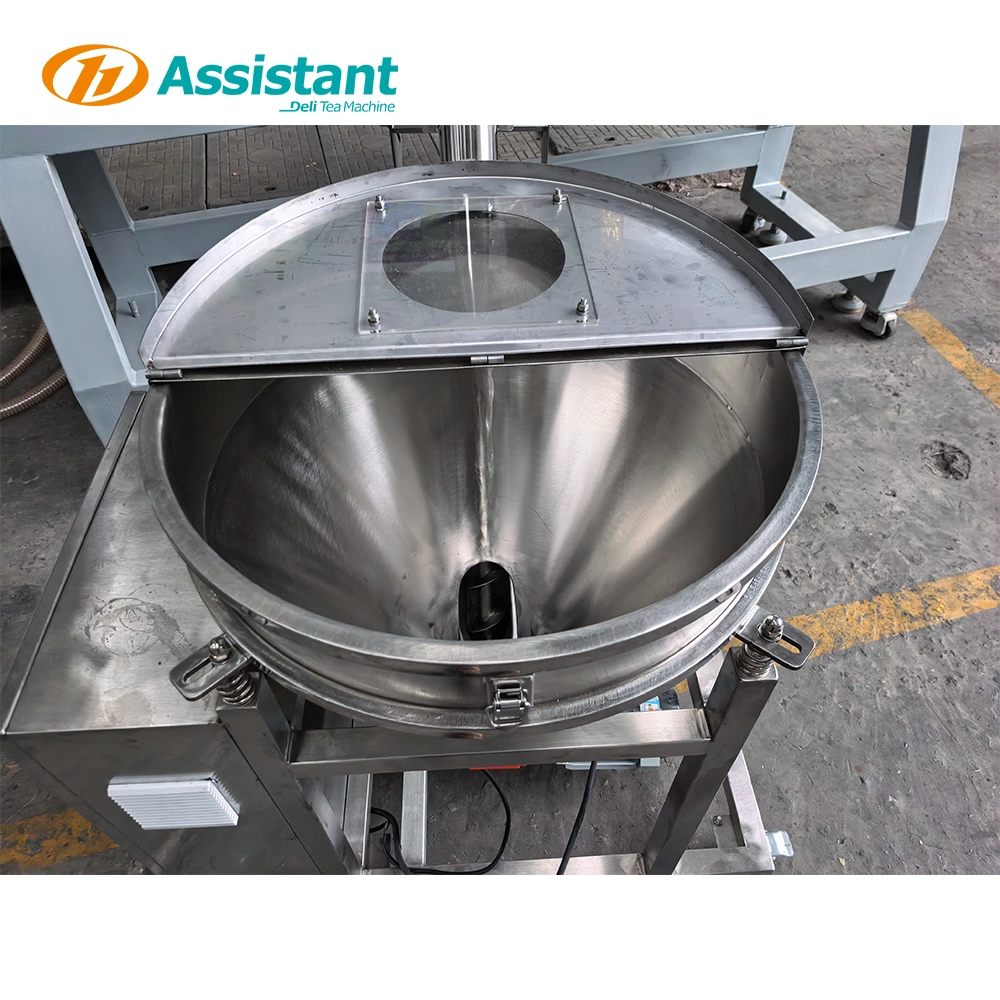

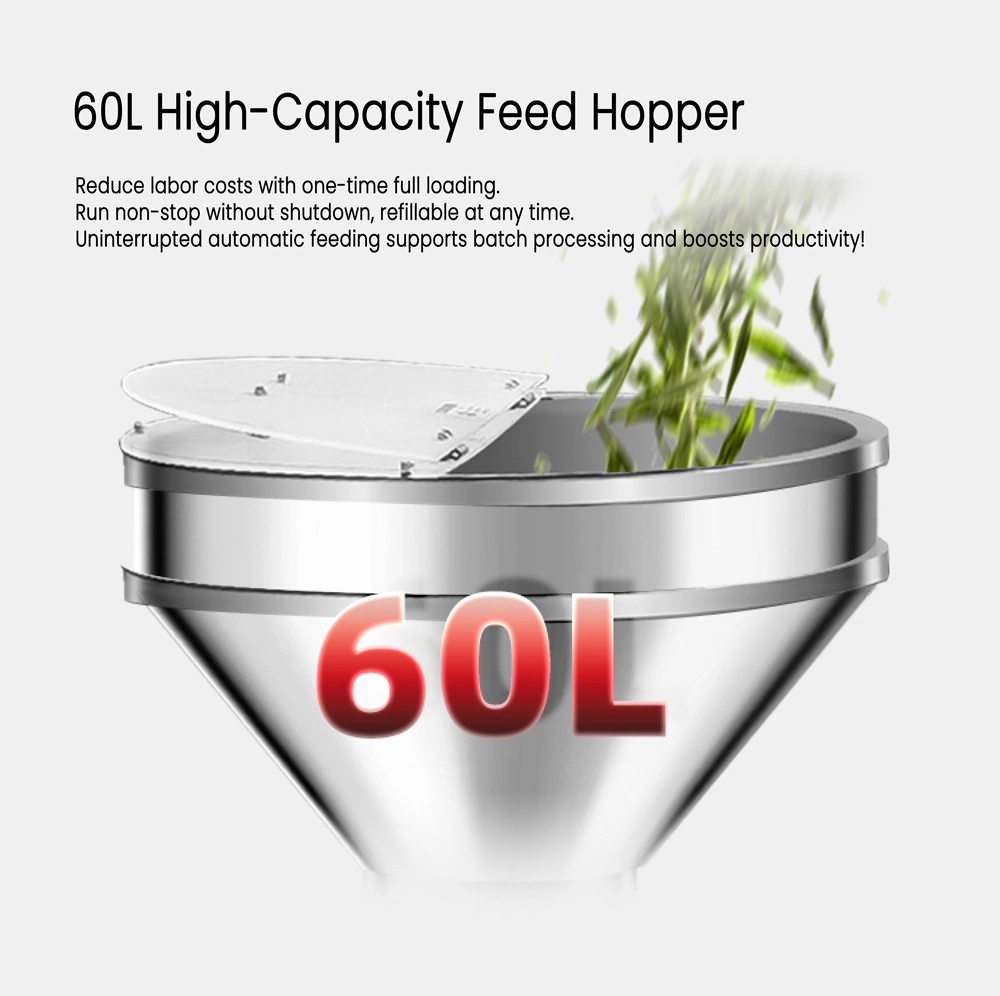

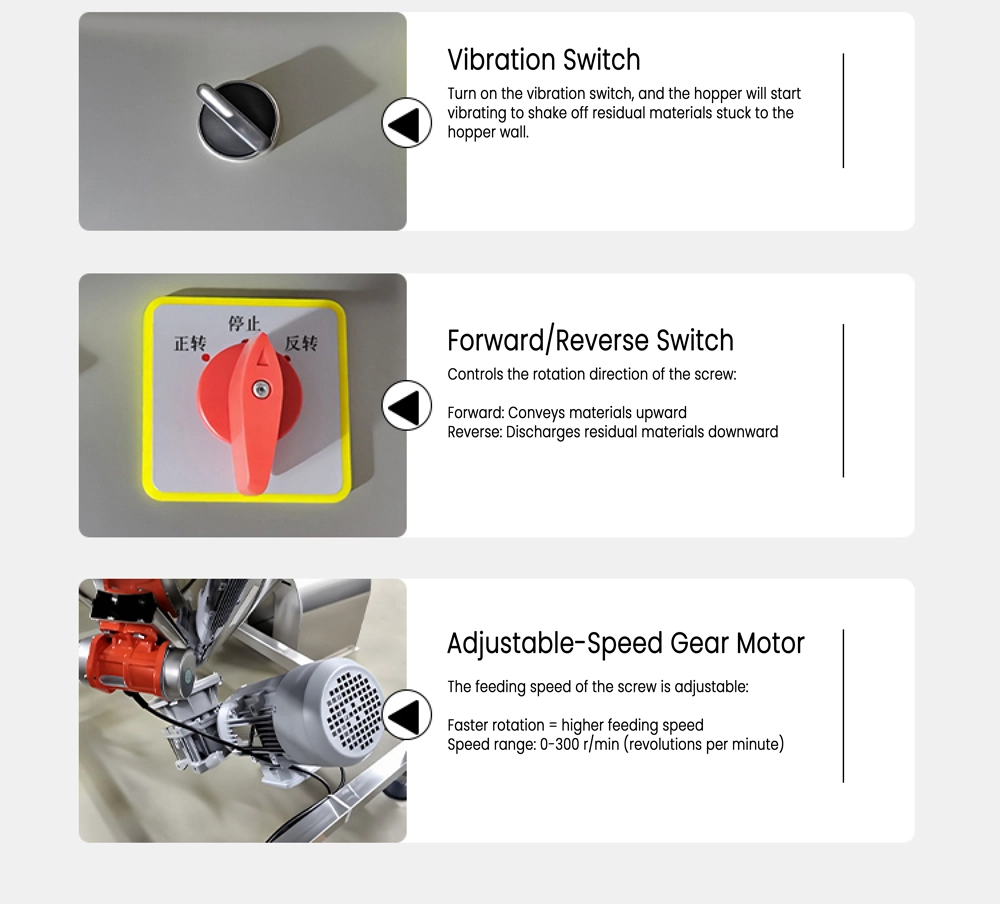

Automated Labor Saving: Features a 60L feeding hopper with an automatic vibration switch that shakes off residual materials, requiring zero manual supervision once the machine is running.

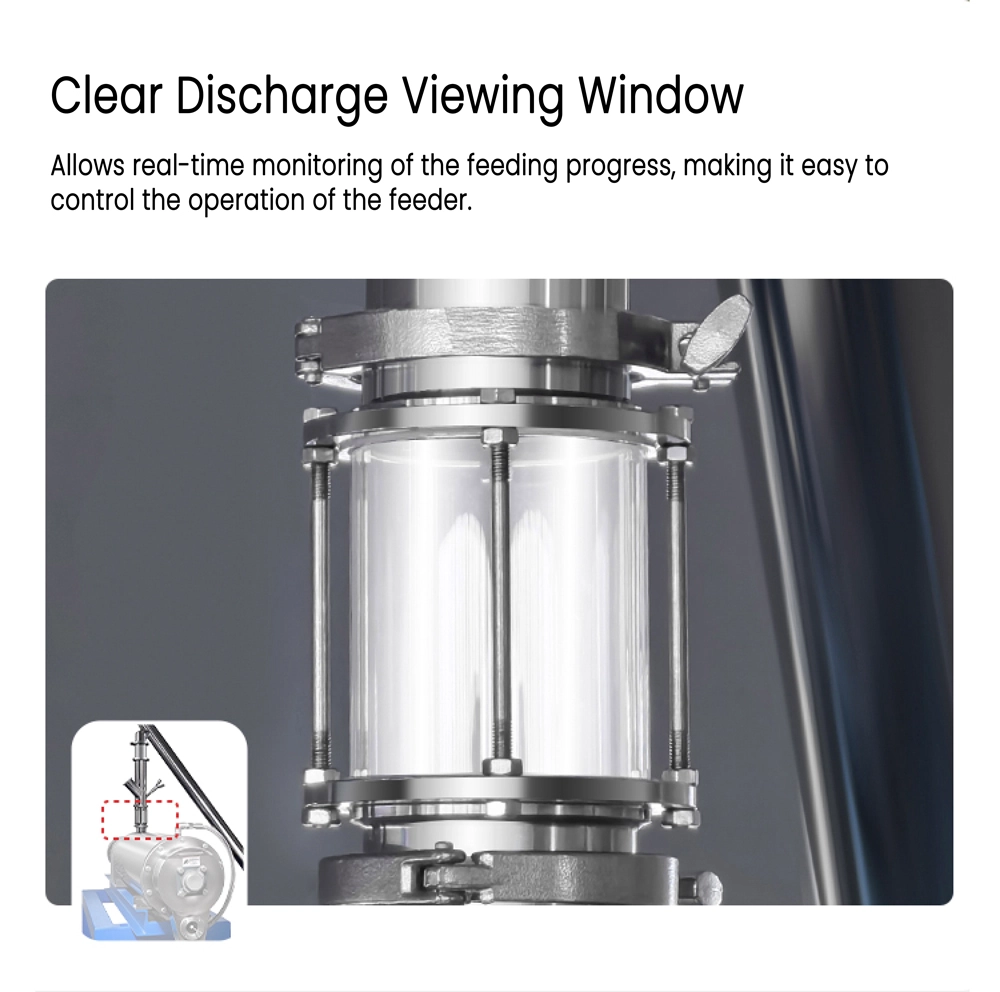

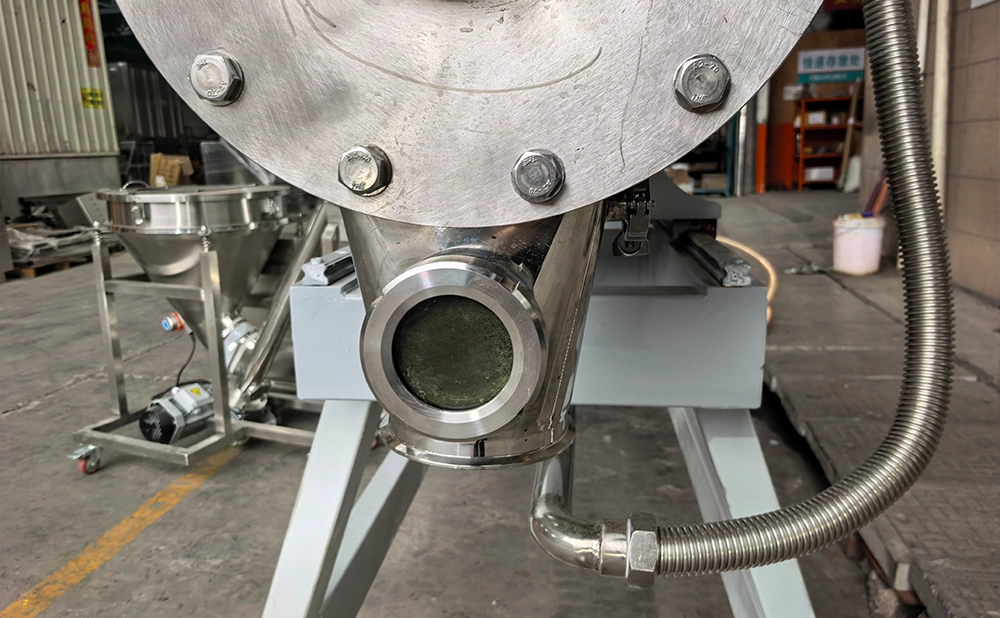

User-Friendly Monitoring: Transparent observation ports for feeding and top/bottom powder output allow operators to monitor material progress and powder fineness in real-time.
| APPLICATION |

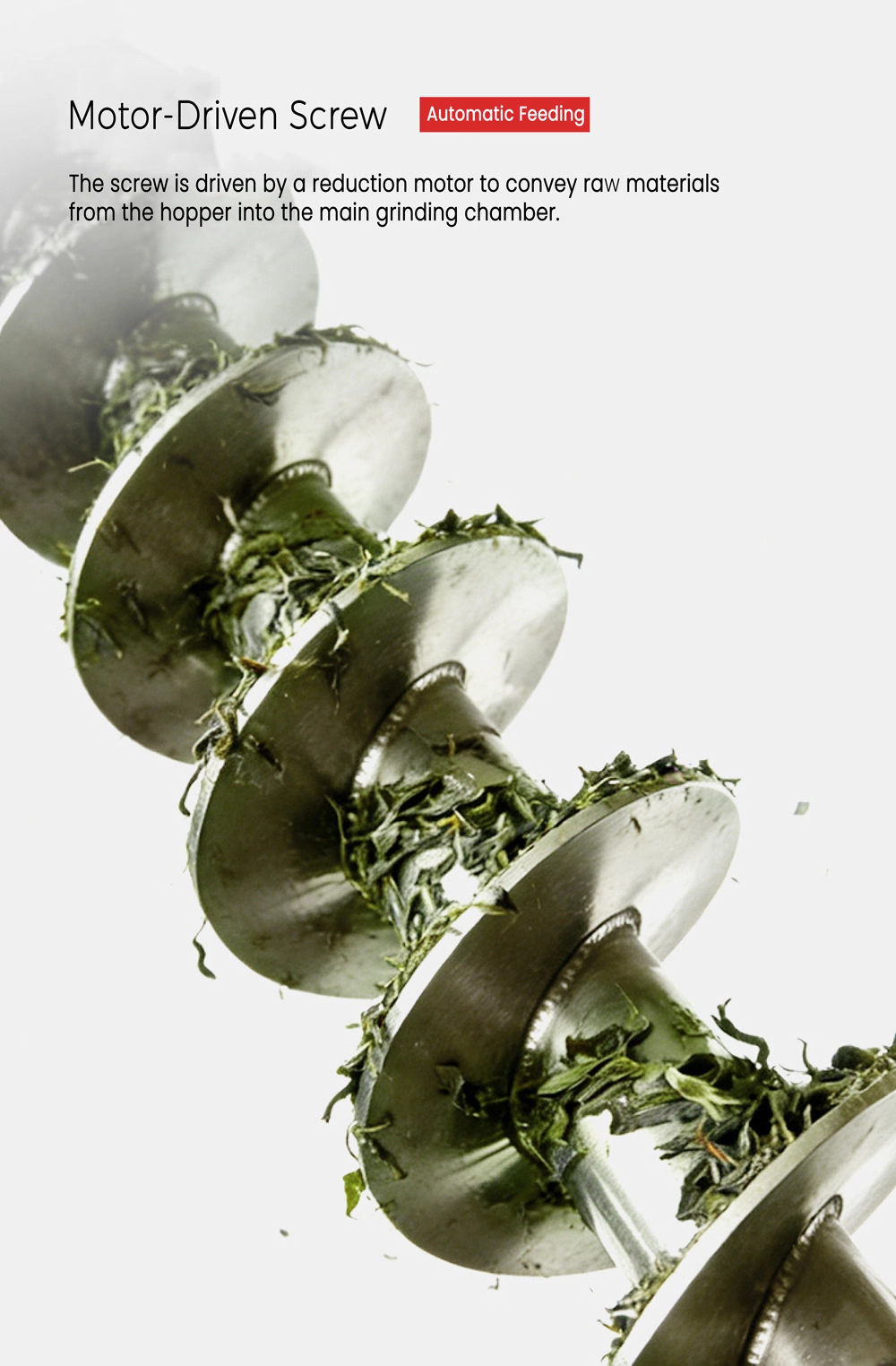

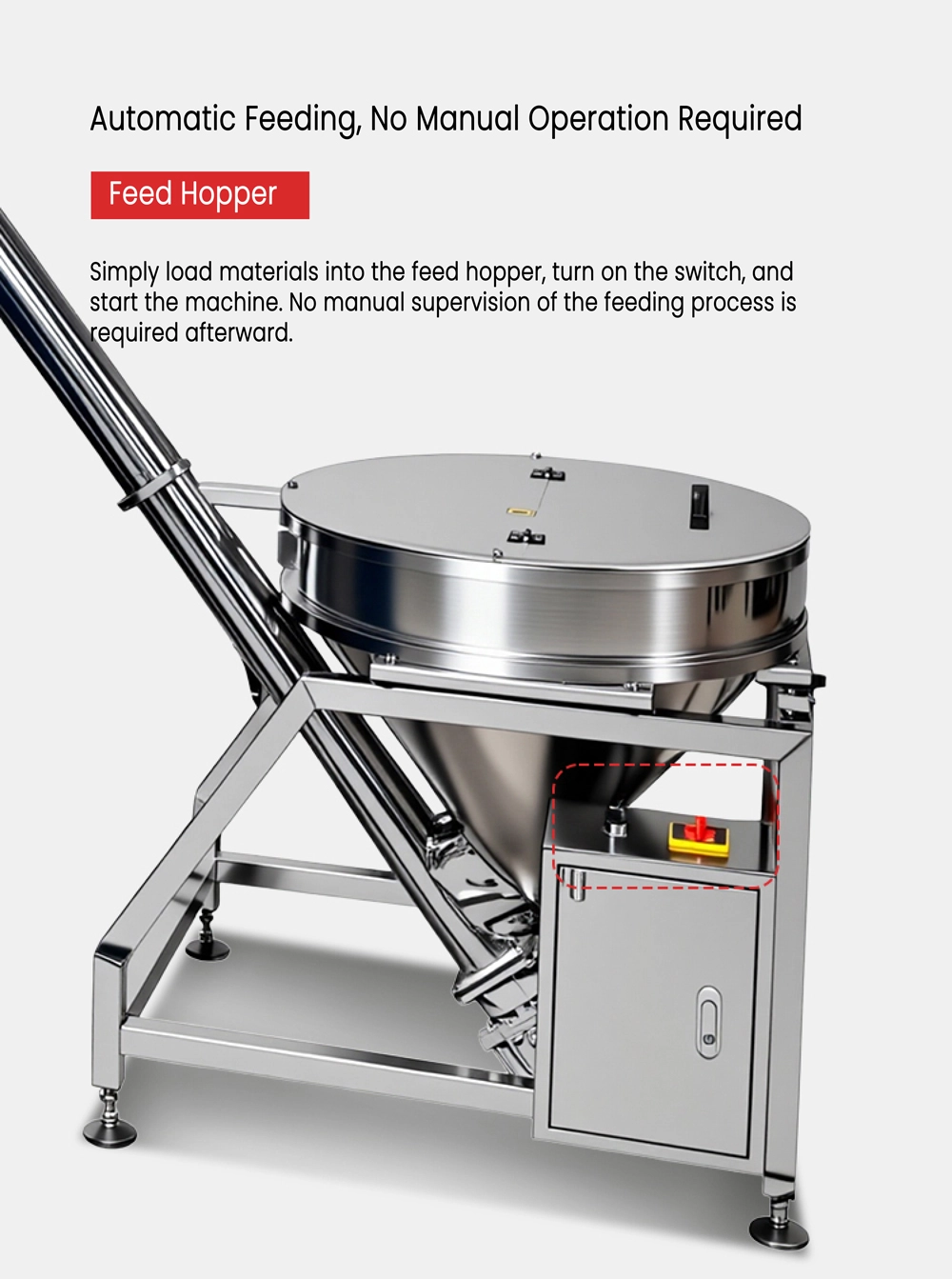

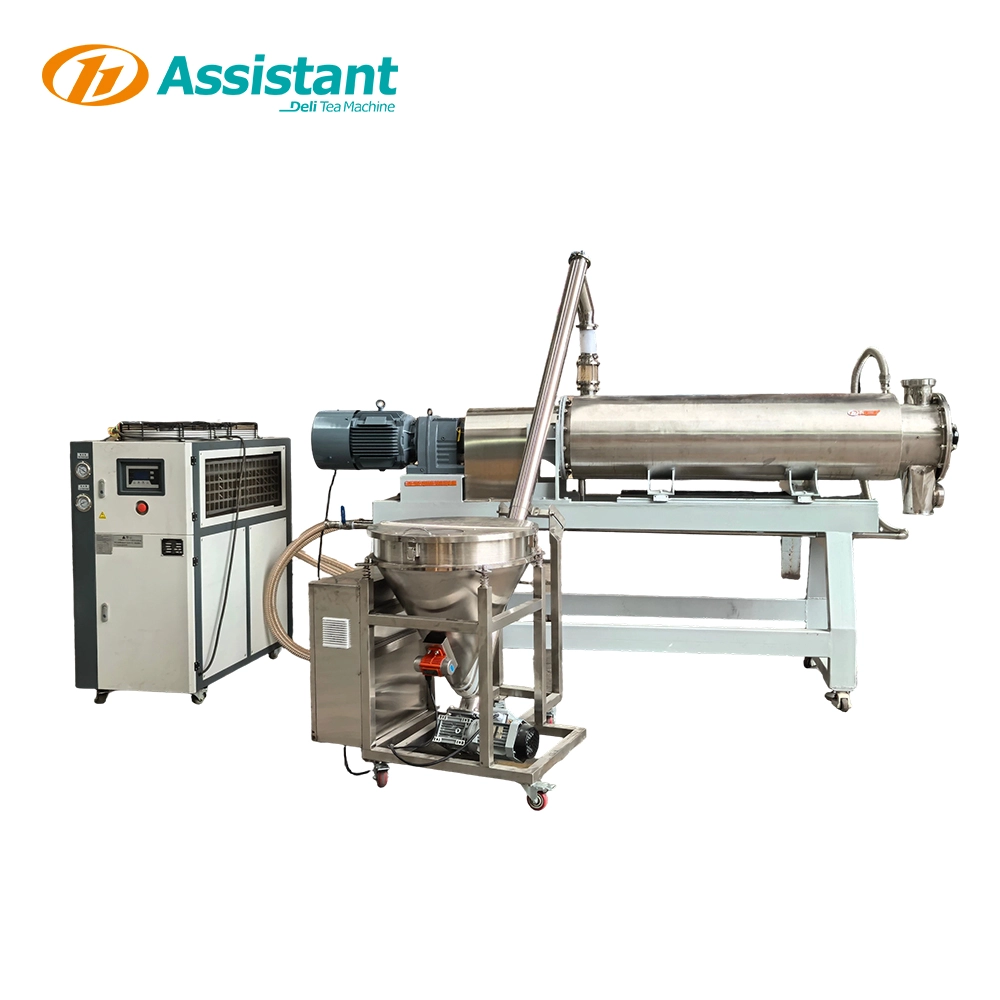

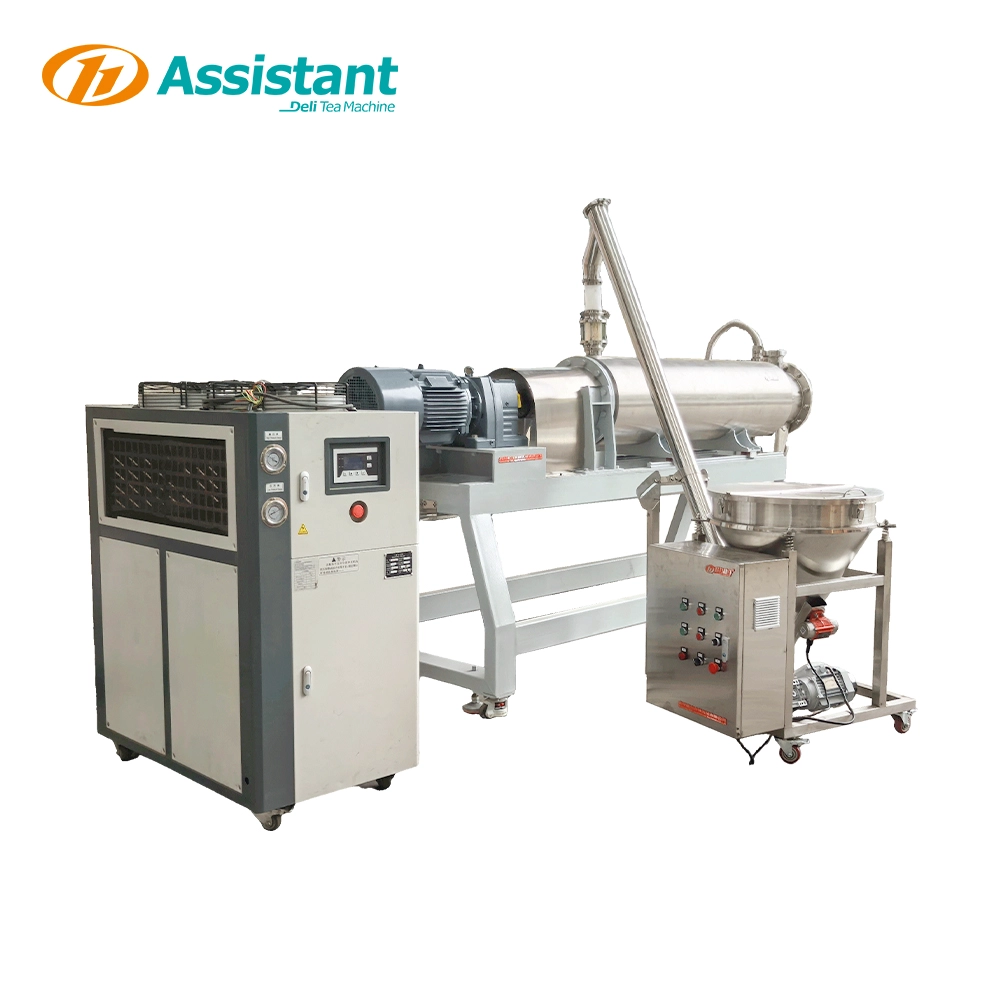

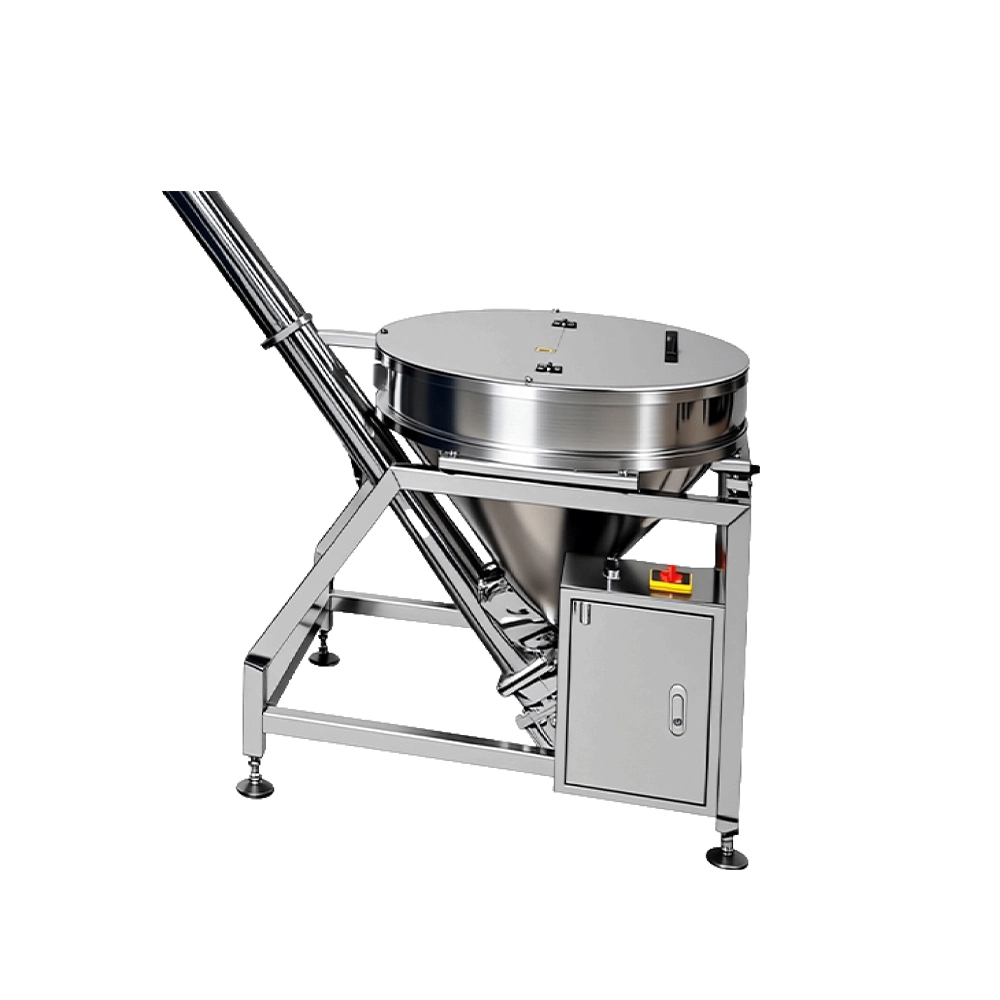

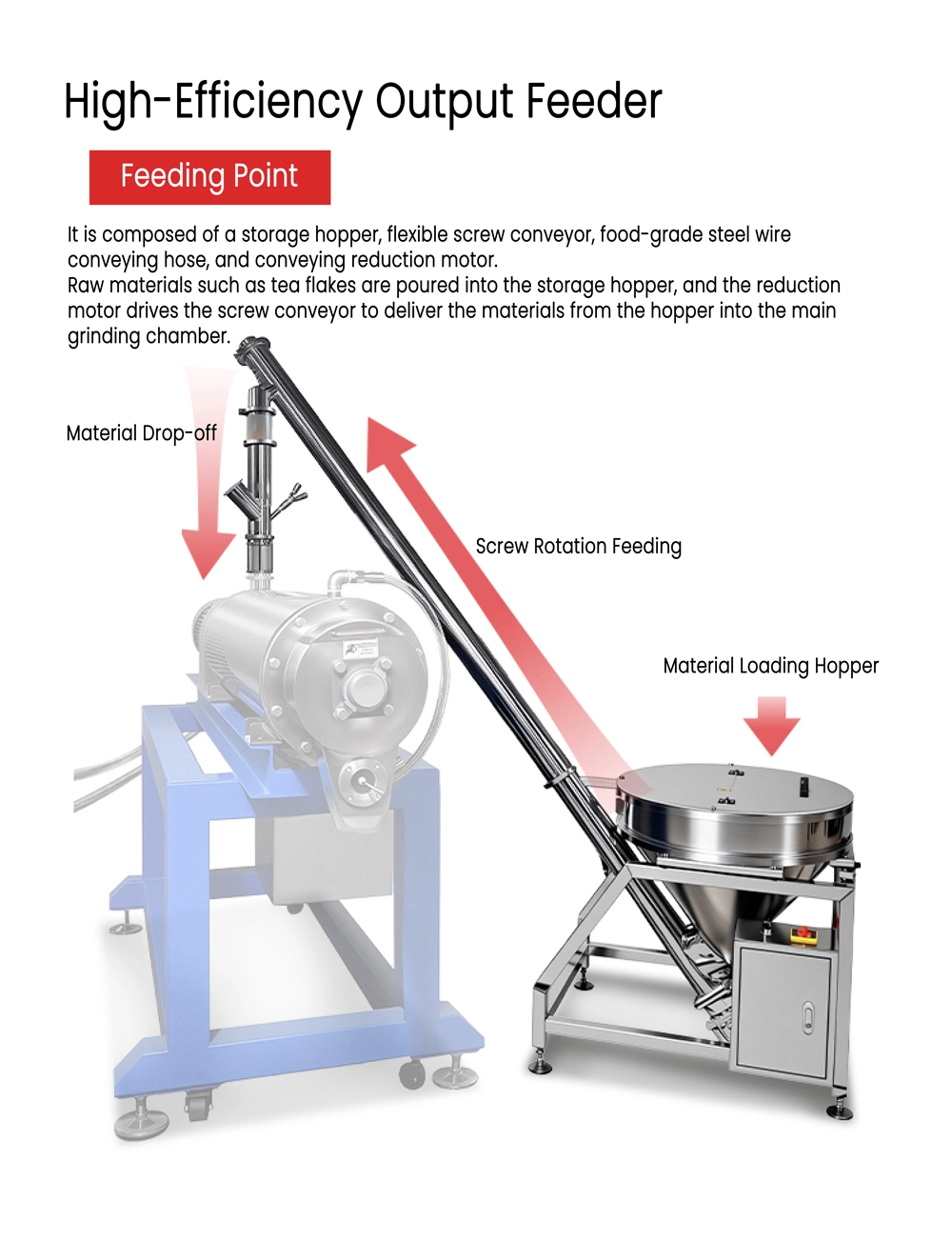

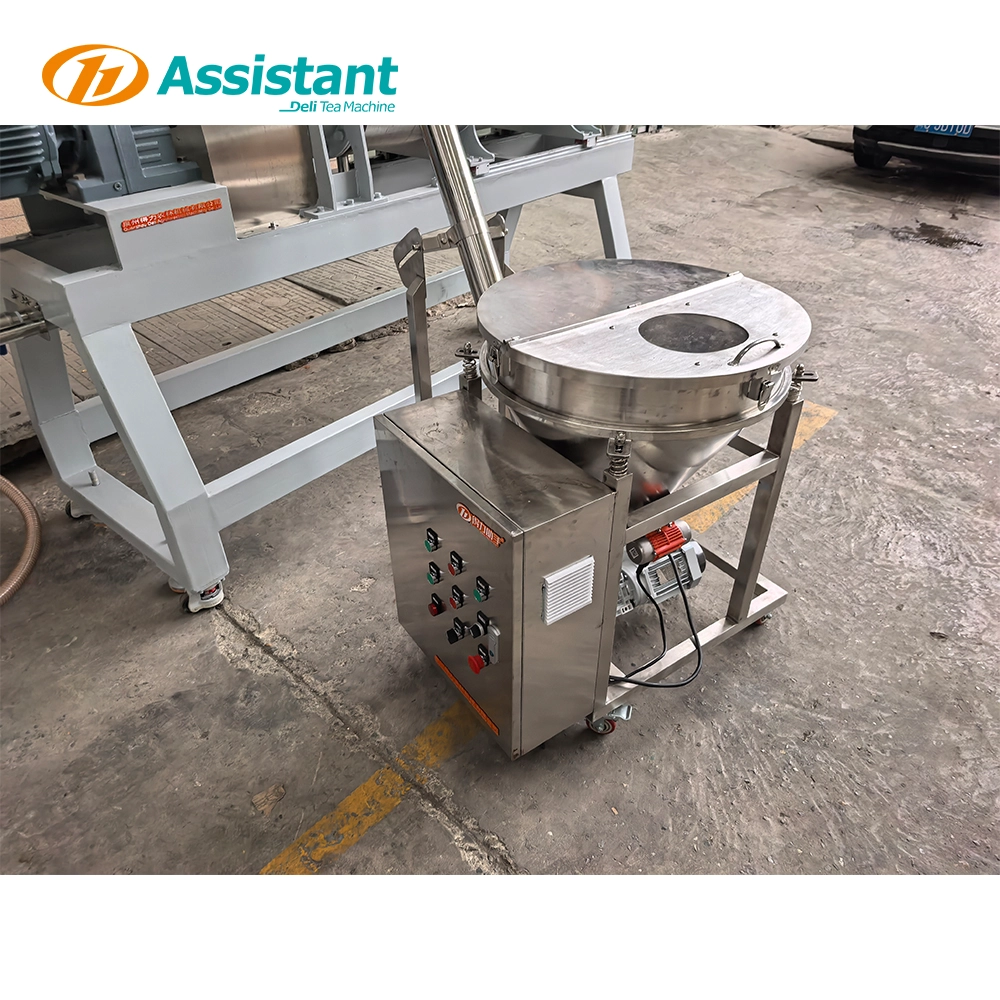

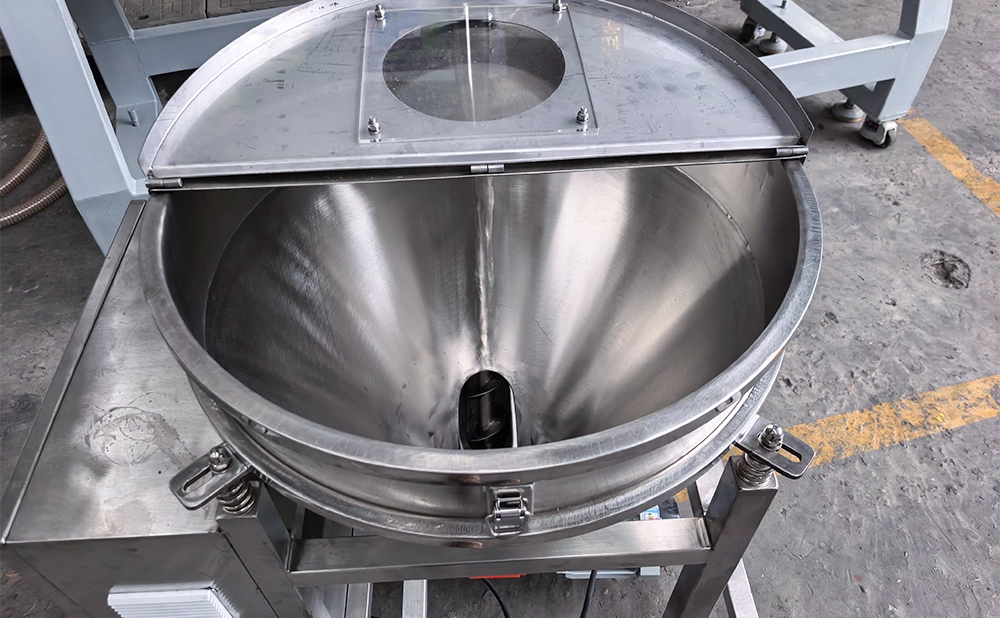

① Automatic Feeding Machine (HF-01)Made up of storage hopper, flexible auger, food-grade stainless steel conveying pipe and reduction motor. Raw tea pieces are loaded into hopper, then transported into grinding chamber by auger driven by reduction motor. Transparent observation window reserved on feeder & host connection for real-time feeding inspection.

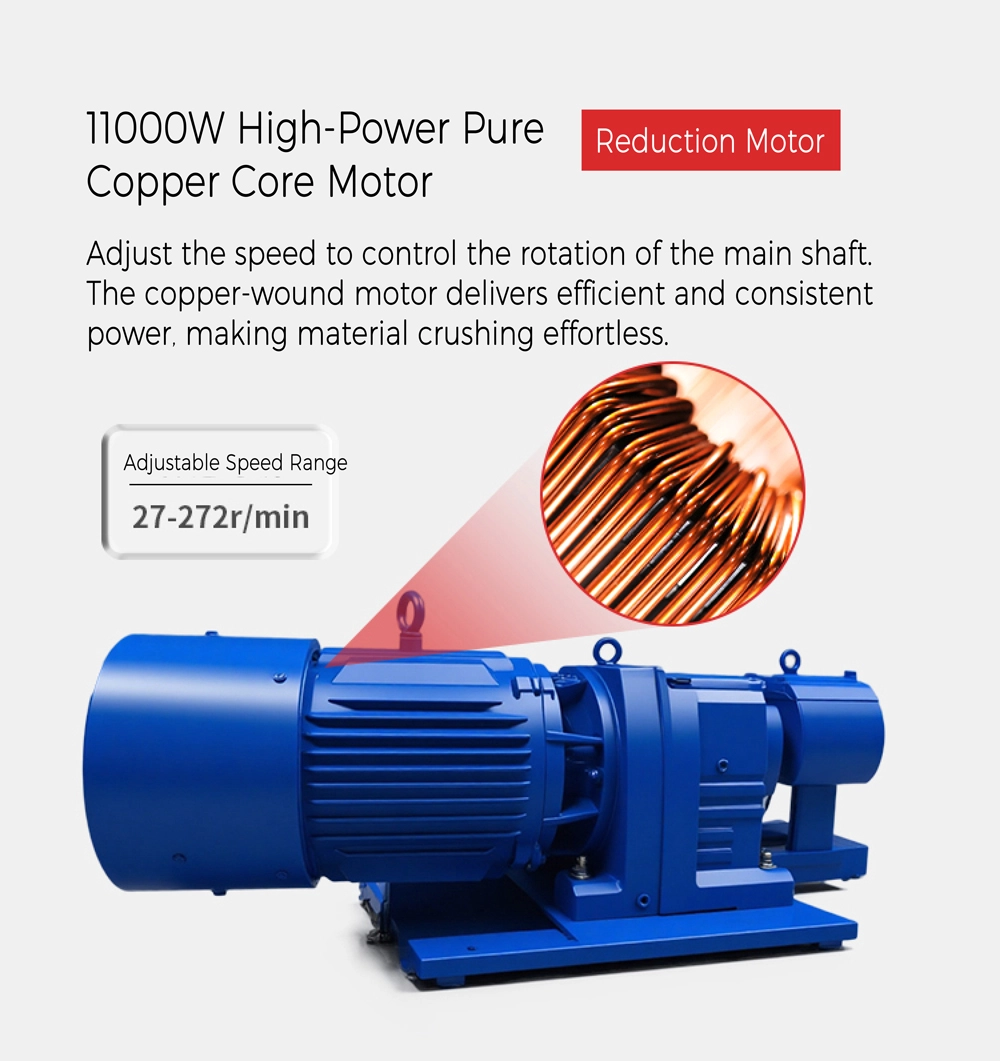

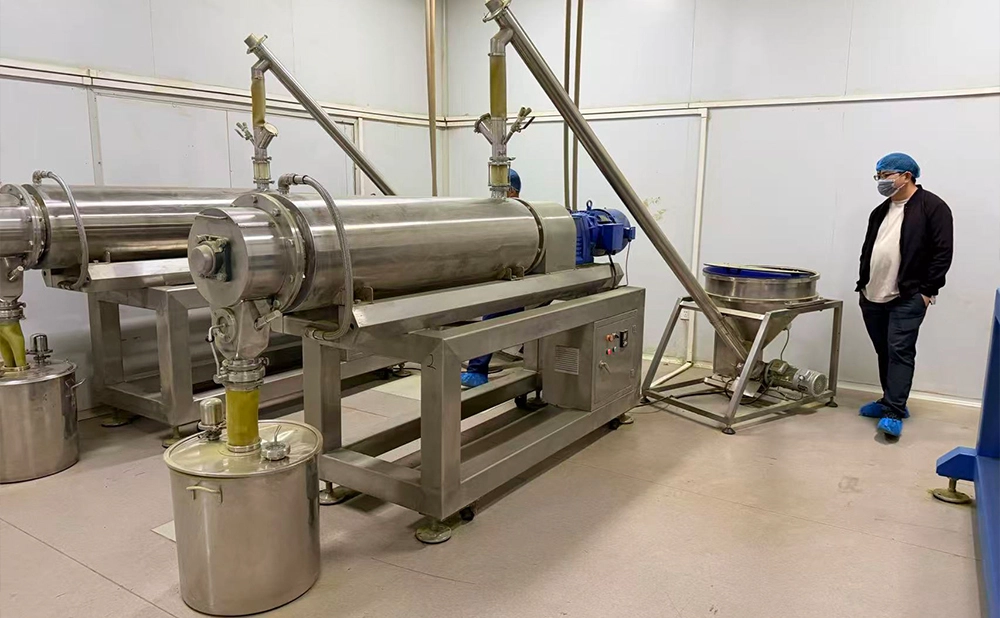

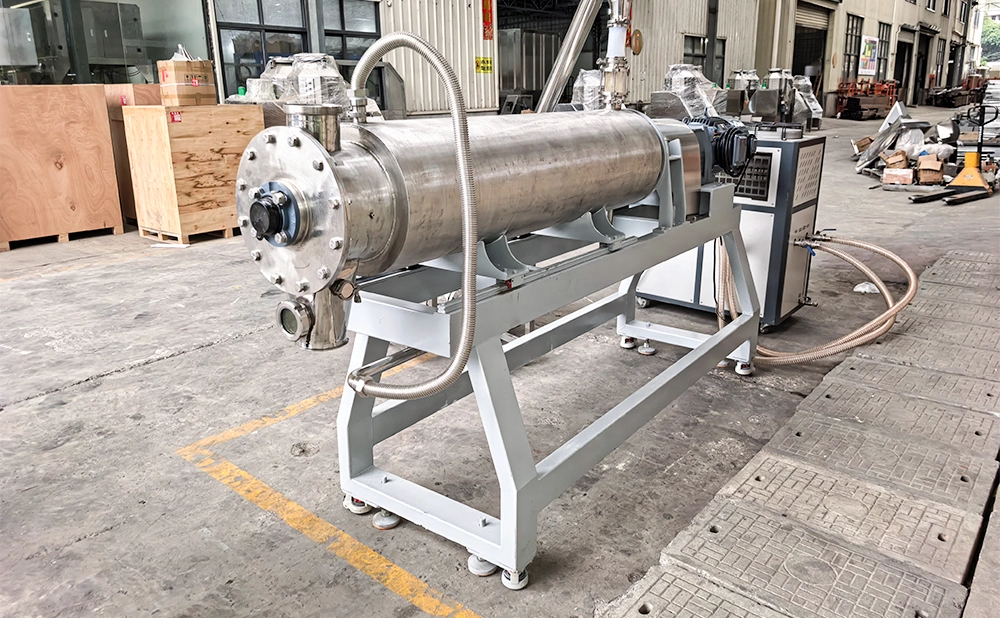

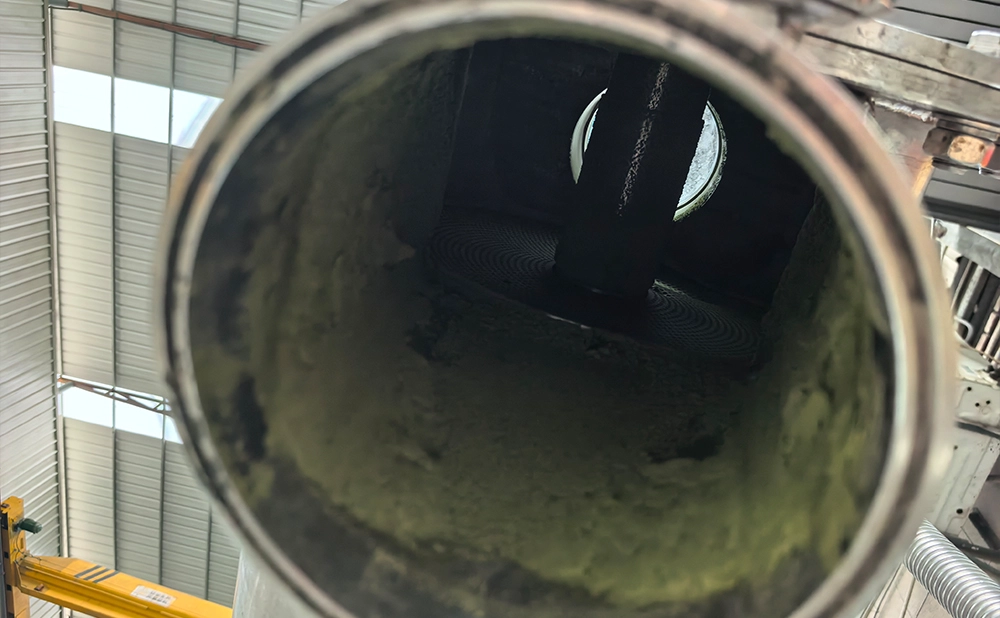

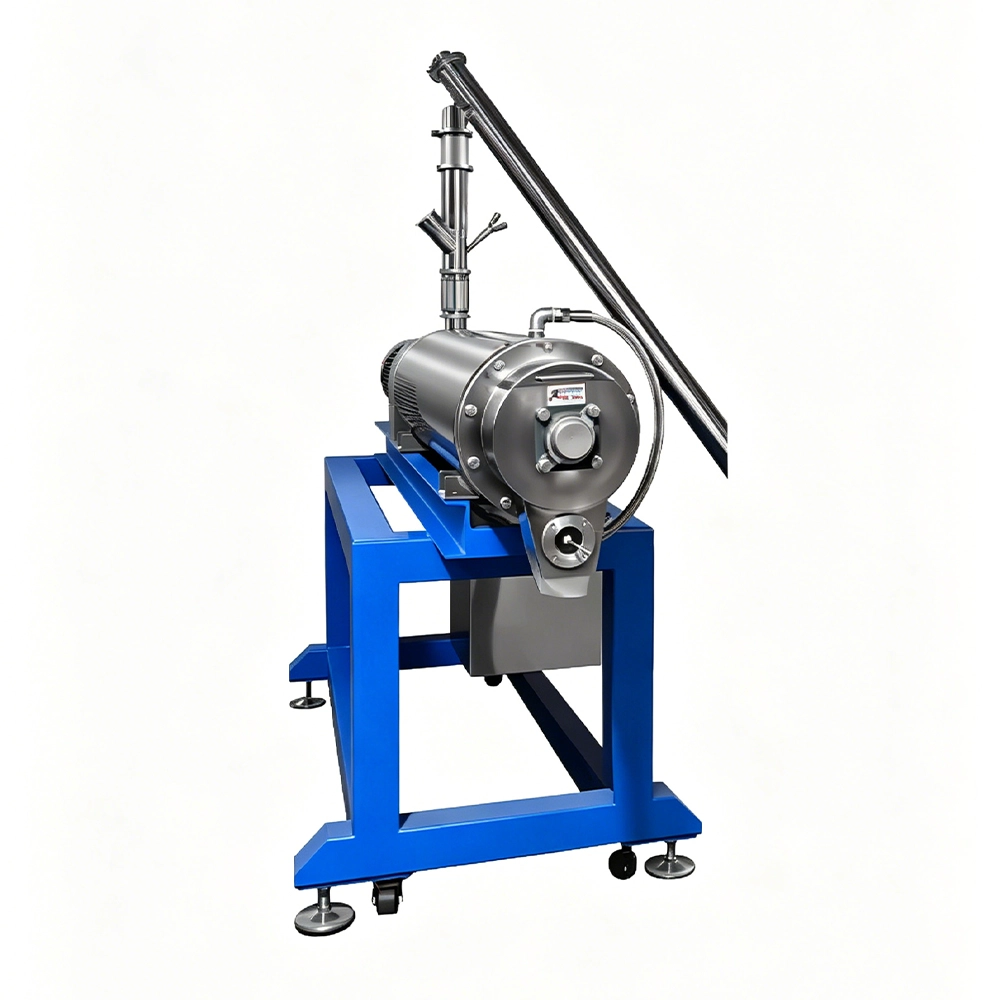

② Main Grinding Host (DQM-150)Composed of reduction motor, coupling, stirring shaft, stainless steel cylinder and zirconia grinding medium as core grinding structure.

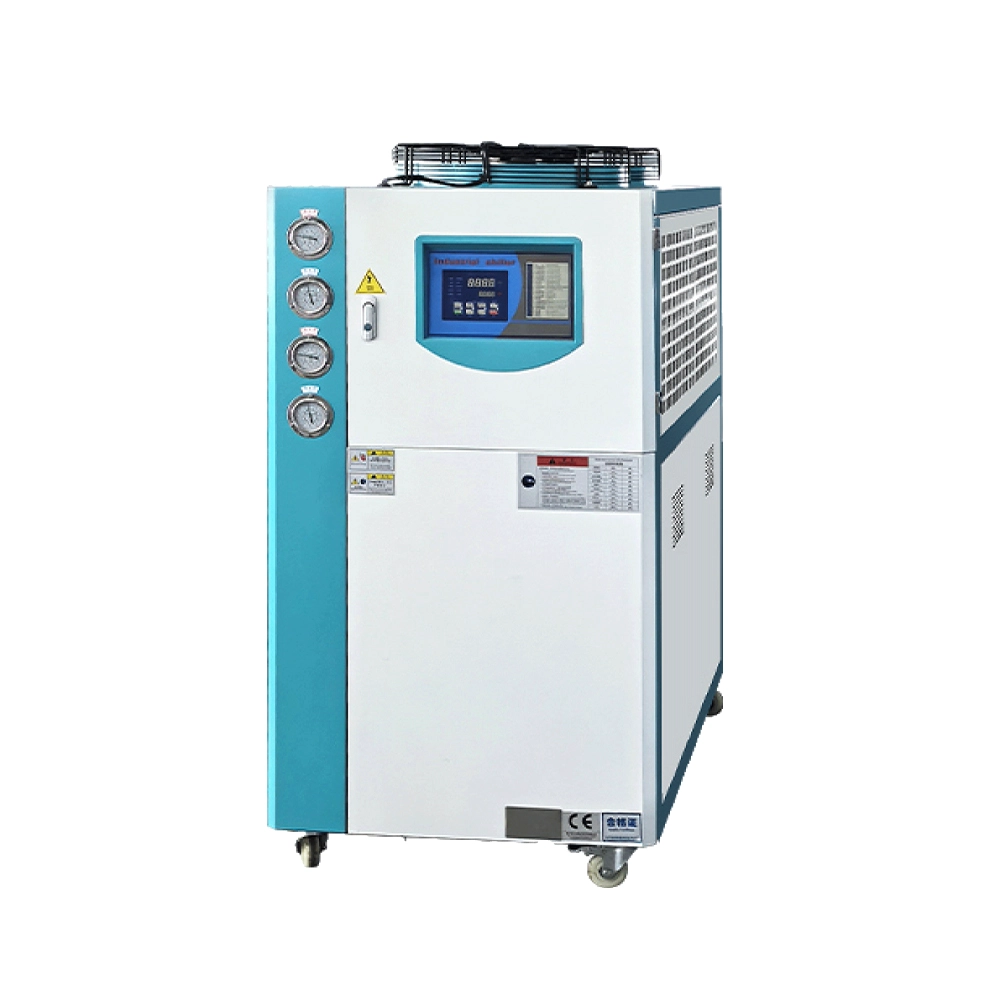

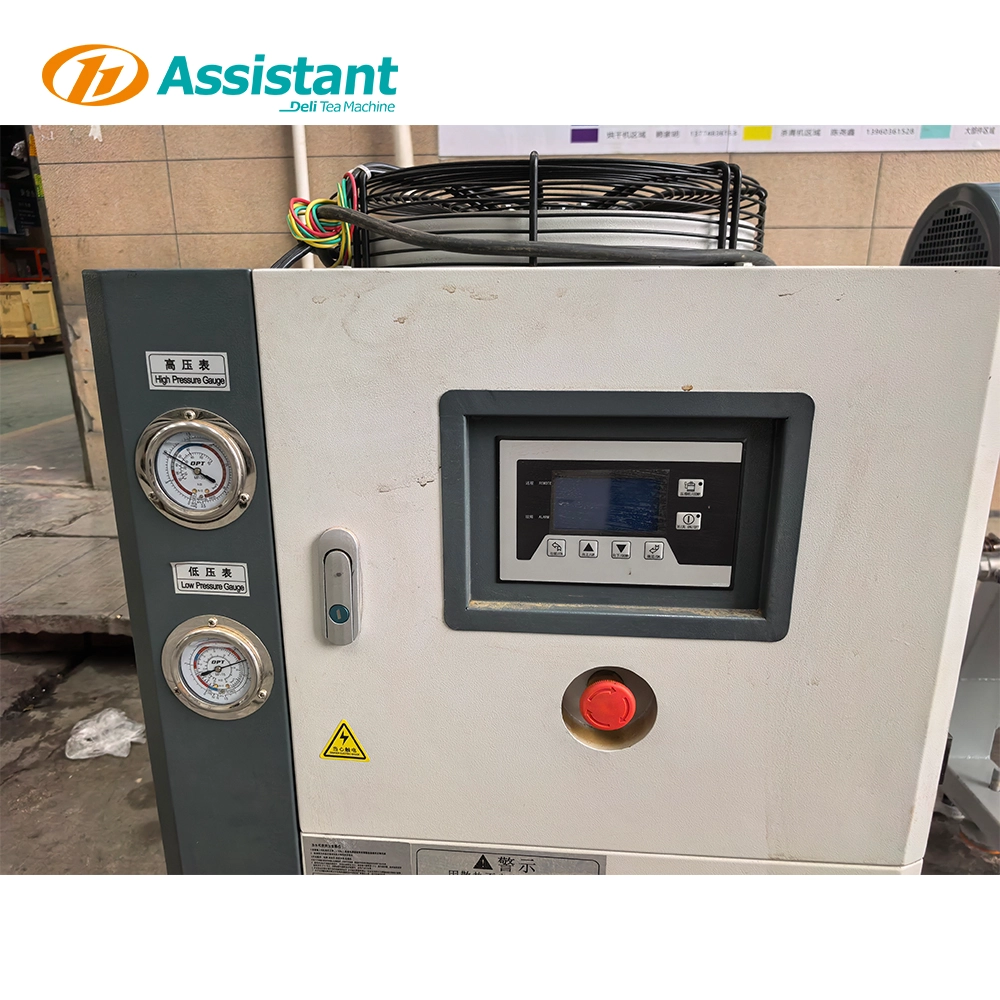

③ Water Cooling Chiller (XC-8HP)Matched cooling unit with connecting pipes and heat dissipation assembly, continuously circulate cold water to lower inner cylinder temperature during grinding process.

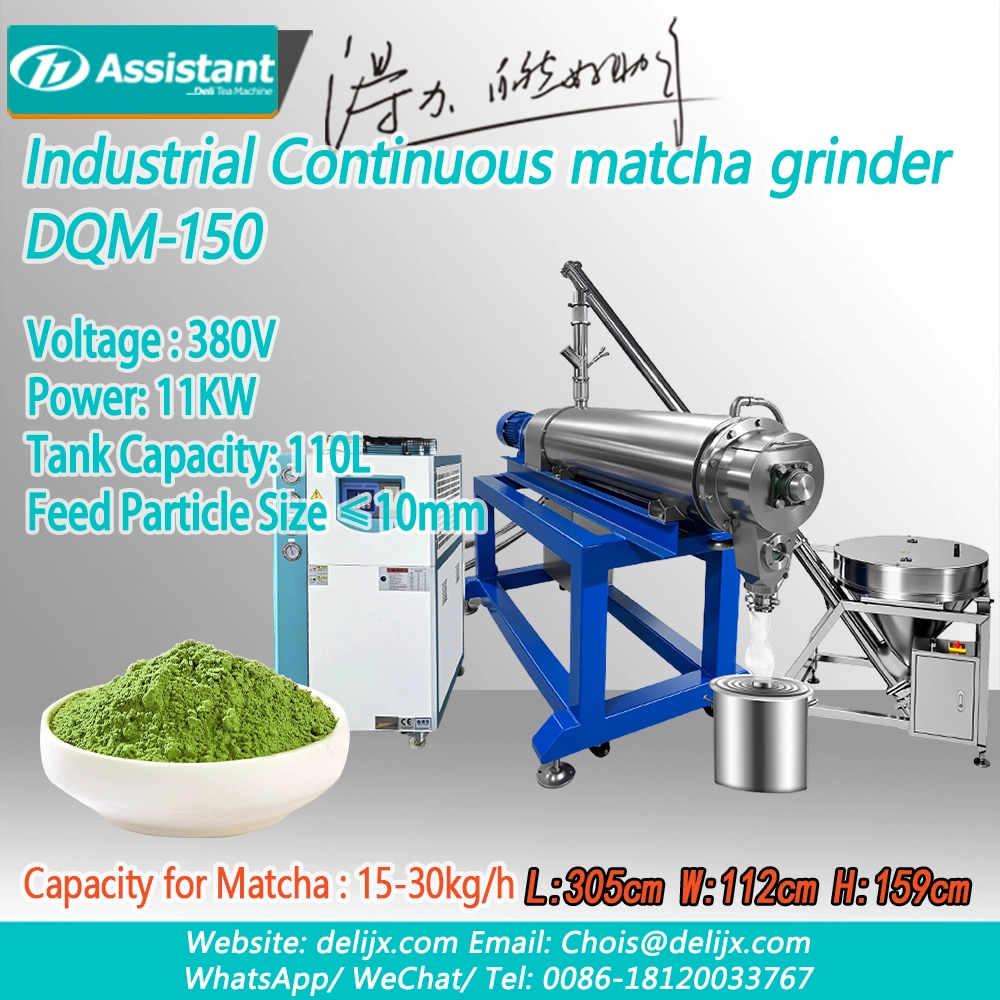

| SPECIFICATION |
 |
|
| Voltage | 380V |
| Main Motor Power | 11kw |
| Tank Capacity | 110L |
| Main Unit Weight | 1150kg |
| Main Rotation Speed | 27-242r/min |
| Feed Particle Size | ≤10mm |
| Output Capacity | 15-30kg/h |
| Main Unit Dimensions | 3050*1120*1585mm |
 |
|
| Voltage | 220V/380V |
| Power | 1.5kw |
| Rotation Speed | 0-300r/min |
| Conveying Capacity | 1500kg/h |
| Conveying Length | ≥1.6m |
| Screw Diameter | Φ114mm |
| Error | ±1% |
| Dimensions | 930*750*860mm |
 |
|
| Voltage | 380V |
| Power | 7.25kw |
| Cooling Capacity | 18748 kcal/h |
| Maximum Flow Rate | 170L/min |
| Refrigerant | Water/R22 |
| Weight | 270kg |
| Dimensions | 1440*700*1450mm |
If you have special need, it can be customized according to the needs of customers.
