The Matcha ball mill is designed for post-drying grinding of agricultural products (e.g., ground tea, Chinese medicinal materials) with advantages of low-temperature grinding (5-15℃) to retain raw material color and aroma, fine fineness (500-1000 meshes), PLC-controlled easy operation, and durable structure.
| DESCRIPTION |
Functional Positioning: For grinding agricultural products post-drying; suitable for tea, Chinese medicinal materials, grains; grinds ground tea to 300-800 meshes.
Structural Design: Drum-type with chain transmission; adjustable drum angle (10°-20° or 90° vertical reset); equipped with a tea discharge drawer.

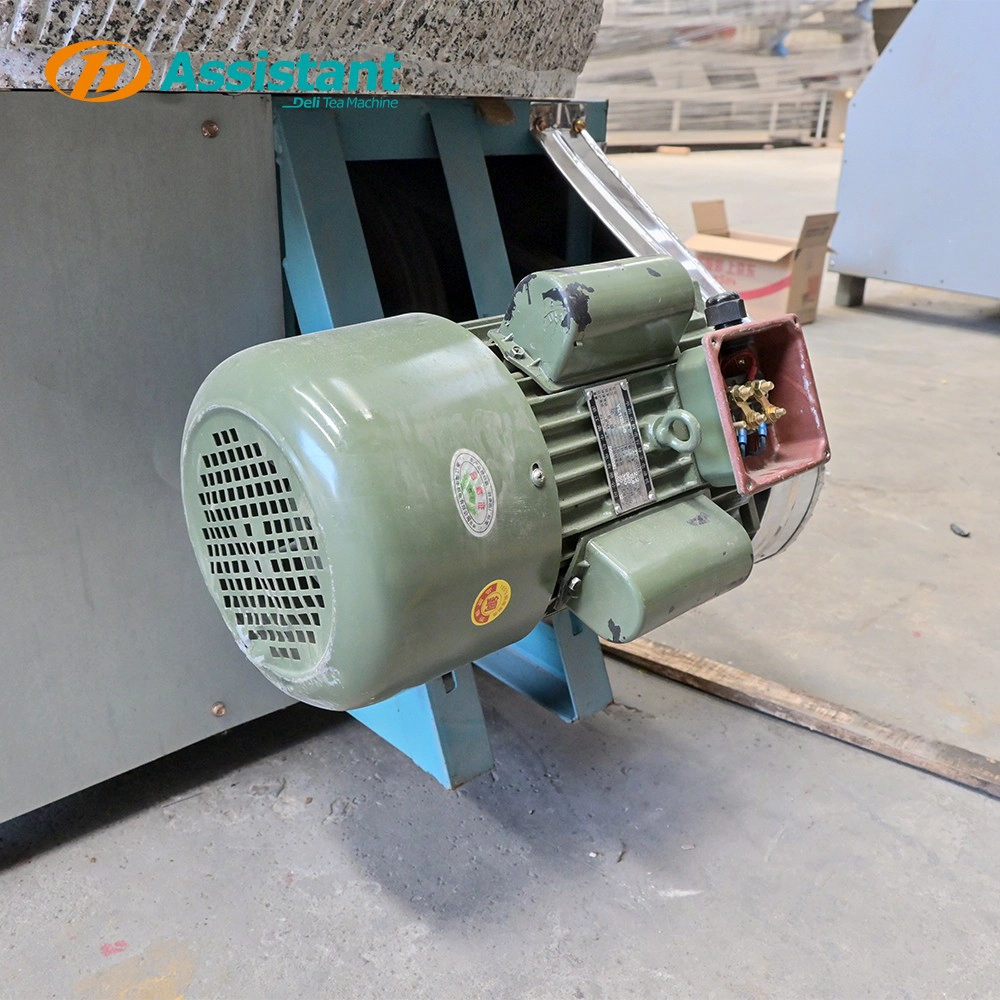

Core Configuration: 2.2KW motor , PLC control system, supporting variable-frequency speed regulation and 10-20h timing.
Basic Parameters: Total weight 400kg, dimension approx. 1150×1120×1130mm, single input of ground tea 10kg; to be used in a sound-insulated, heat-preserved room at 5-15℃.
| ADVANTAGE |
High Grinding Quality: 5-15℃ air cooling + Granite drum preserves raw material color and aroma; fineness up to 500-800 meshes, with uniform and stable finished products.
Easy Operation: Supports variable-frequency speed regulation (mainly 40-50Hz) and precise timing; adjustable drum angle, clear PLC panel, and forklift holes on the frame for easy movement.
Durable Structure: Key components made of Granite, frame of carbon steel; transmission system maintainable regularly to extend service life.
Safe & Efficient: Equipped with safety shield, grounding protection, and emergency stop button; single-machine capacity 10kg/h; compact structure saves space, suitable for large-scale production.
| APPLICATION |
Matcha tea stone mill grinder is mainly process matcha, the following is the working time required for the above tea production.
| Type Of Tea | Working Time |
| Black Tea | Hours |
| Green Tea | Hours |
| White Tea | Hours |
| Oolong Tea | Hours |
| Herbal Tea | Hours |
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.
| SPECIFICATION |
Matcha tea Ball mill grinder specification list:
|
Model
|
DL-6CYM-70
|
|
Dimension
|
115×112×133cm
|
|
Voltage
|
220V / 380V
|
|
Power
|
2.2 kw
|
|
Plate Diameter
|
70cm
|
|
Plate Thickness
|
26cm * 2
|
|
Plate Materials
|
Granite
|
|
Matcha Size
|
≈ 50μm
|
|
Capacity
|
10 kg/h
|
|
Machine weiht
|
400 kgs
|
If you have special need, it can be customized according to the needs of customers.
| PHOTOS |
| CONTACT |
If you are interested in this product, please contact us to get the price.
