Custom heightened small matcha stone mill DL-6CYMJ-32W, equipped with 30cm natural stone plates. Low-speed low-temperature grinding, produce ultra-fine matcha powder ≤15μm. 50g/h capacity, stainless steel body, ideal for boutique tea shops & small-batch matcha production.
| DESCRIPTION |
This customized heightened mini matcha stone mill adopts traditional stone grinding technology, low-speed cold grinding avoids overheating, preserves tea’s natural aroma, color and nutrients.
| ADVANTAGE |
High Grinding Quality: 5-15℃ air cooling + Granite drum preserves raw material color and aroma; fineness up to 500-800 meshes, with uniform and stable finished products.

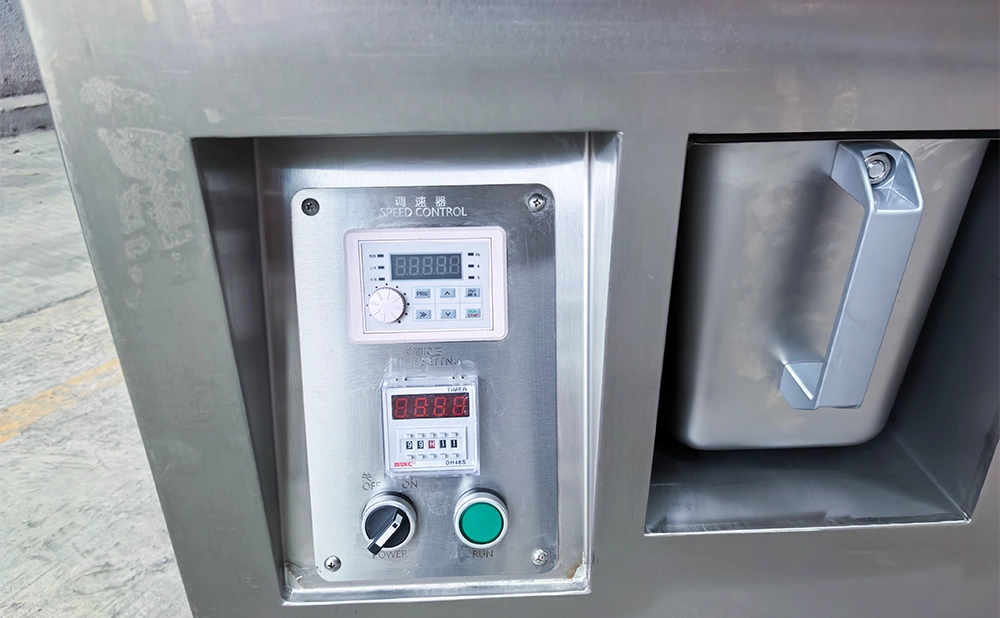

Easy Operation: Supports variable-frequency speed regulation (mainly 40-50Hz) and precise timing; adjustable drum angle, clear PLC panel, and forklift holes on the frame for easy movement.
Durable Structure: Key components made of Granite, frame of carbon steel; transmission system maintainable regularly to extend service life.
Safe & Efficient: Equipped with safety shield, grounding protection, and emergency stop button; single-machine capacity 10kg/h; compact structure saves space, suitable for large-scale production.
| APPLICATION |
Matcha tea stone mill is mainly process matcha, the following is the working time required for the above tea production.
| Type Of Tea | Working Time |
| Black Tea | Hours |
| Green Tea | Hours |
| White Tea | Hours |
| Oolong Tea | Hours |
| Herbal Tea | Hours |
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.
| SPECIFICATION |
c specification list:
|
Model
|
DL-6CYMJ-32M
|
|
Dimension
|
65*68*130 cm
|
|
Voltage
|
220V 50/60Hz
|
|
Stone plate diameter
|
32 cm
|
|
Stone plate thickness
|
12 cm
|
|
Stone plate quantity
|
2 pcs
|
|
Power
|
0.55 KW
|
|
Matcha Size
|
≤ 15μm
|
|
Capacity
|
≈ 50g/hour
|
|
Machine weiht
|
110 kgs
|
If you have special need, it can be customized according to the needs of customers.

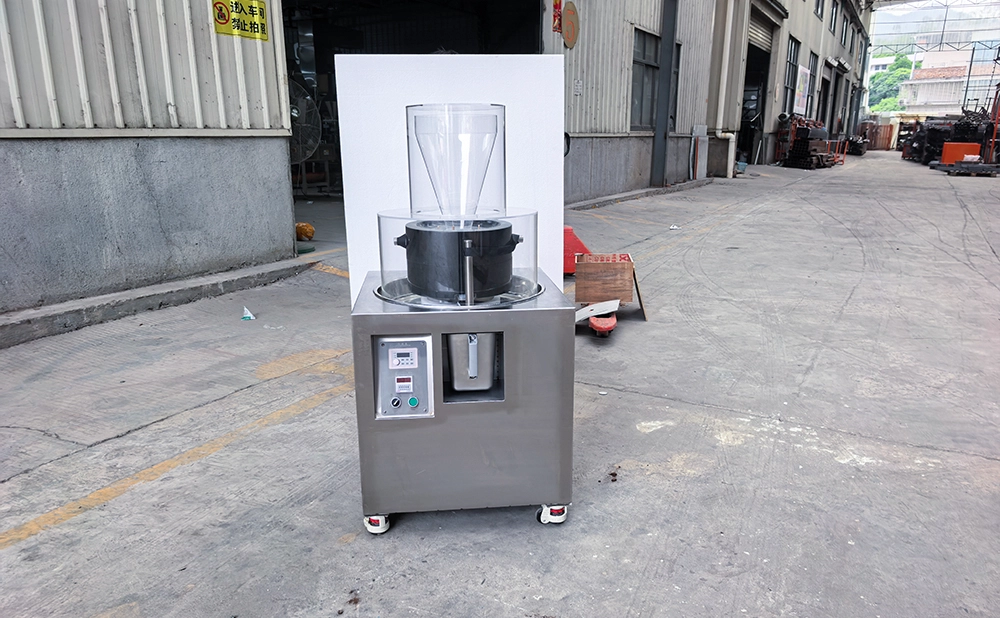

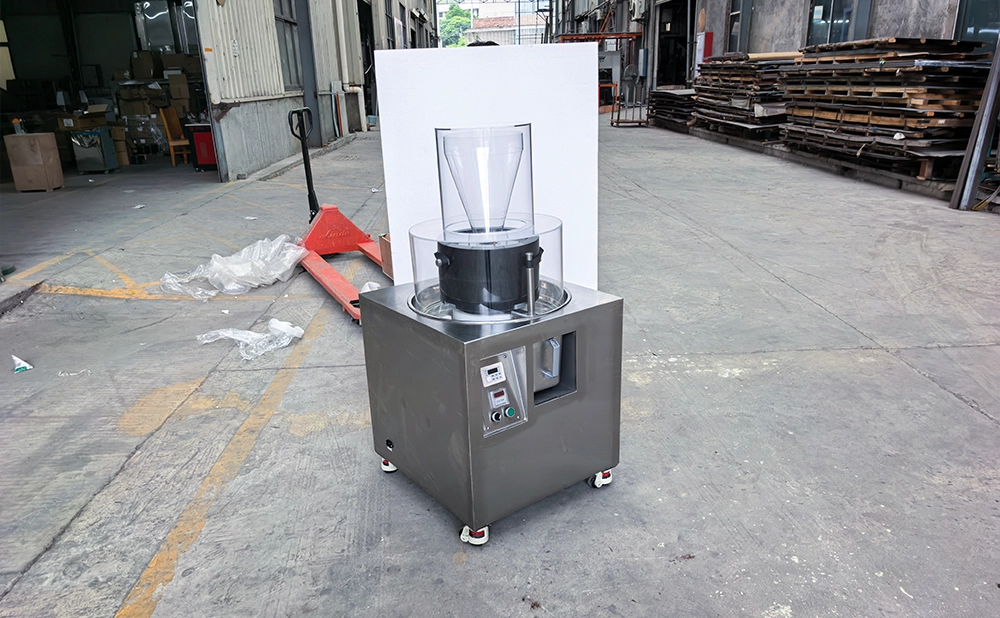

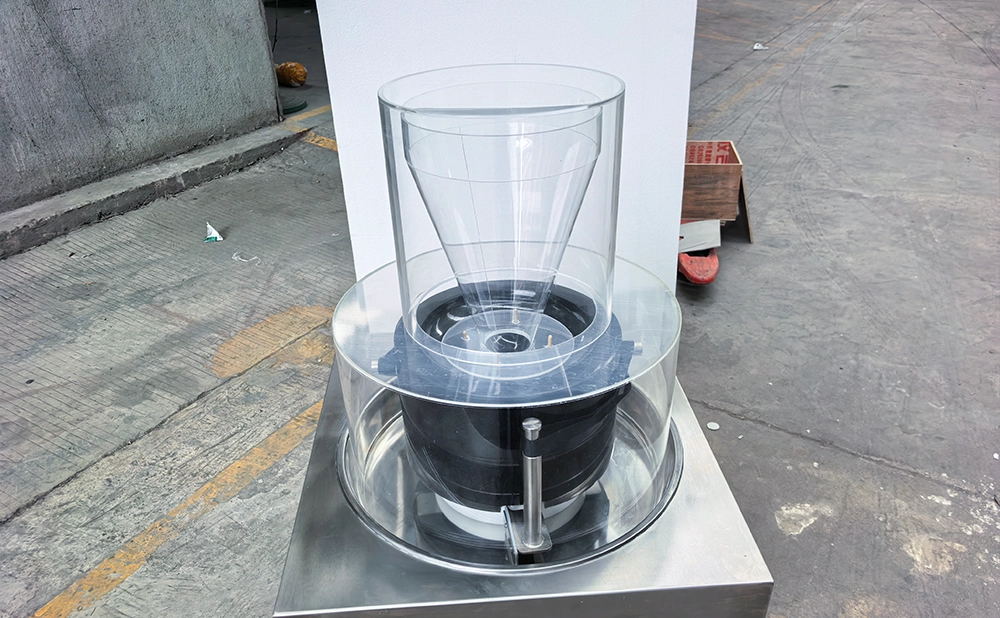

| PHOTOS |
| CONTACT |
If you are interested in this product, please contact us to get the price.
↑ ↑ Click the icon to get the latest price directly ↑ ↑
Tel:+8617750811550
Wechat:+8617750811550
Contact Person:MANAGER
PDF Show:PDF
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
