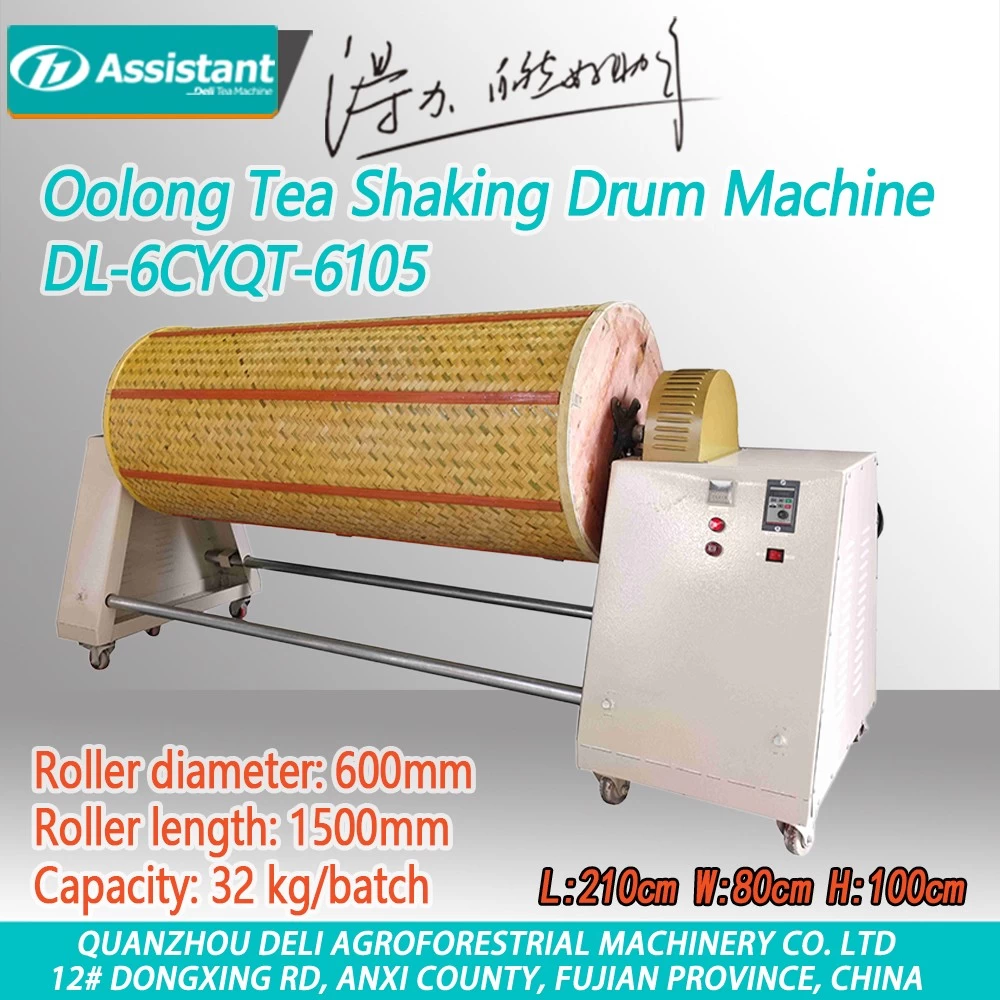

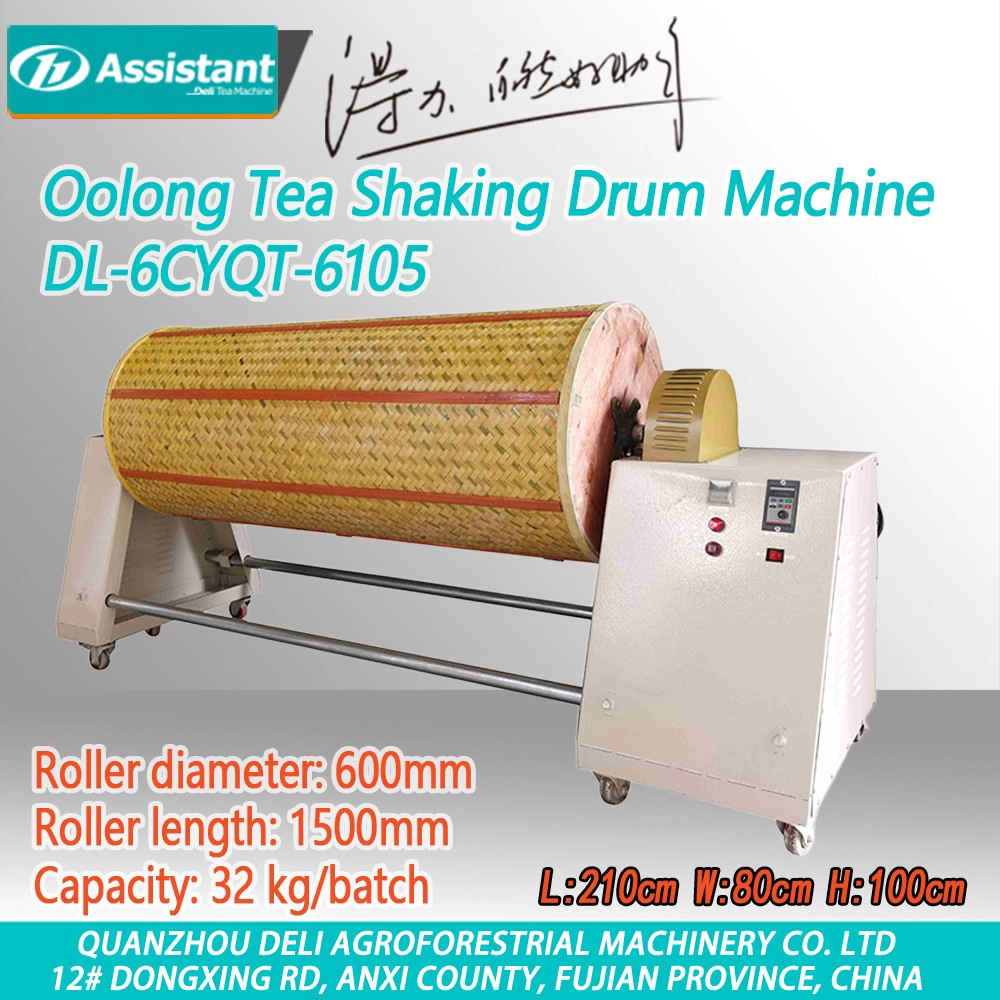

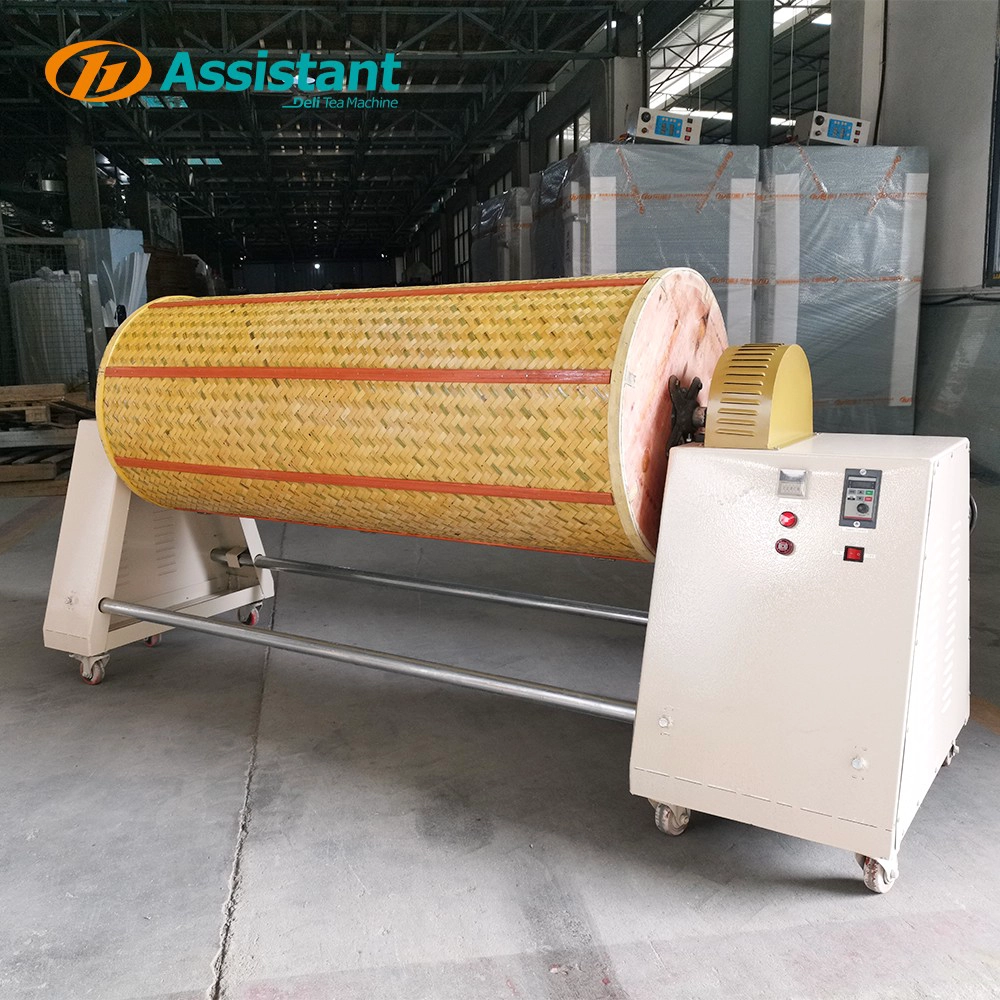

DL-6CYQT-6105 mainly used for Oolong tea processing, drum made of bamboo, the activity of withered tea was increased by shaking, It can make tea taste more fragrant, Capacity about 32 kg per batch.
| DESCRIPTION |
Oolong Tea Shaking Machine is one of the important equipment in the process of oolong tea production.
The shaking cage is made of pure natural top layer bamboo, which is environmentally friendly and does not damage tea leaves. The shaking cage has small holes, which can filter out debris falling from the leaves and play a cleaning role.
The machine is equipped with a speed regulating device, which can adjust the speed of shaking. The time control system is added. When the time is up, it will automatically stop working.
It is easy to operate and saves time and effort.
It is one of the essential equipment for high quality oolong tea production.
| ADVANTAGE |
1. The drum is made of bamboo material, which is hygienic and environmentally friendly;
2. Using electromagnetic speed control motor, the speed is stable and durable;
3. Can be electronic timing, easy to operate.
| APPLICATION |
Oolong tea shaking drum machine is suitable for processing oolong tea, the following is the working time required for the above tea production.
| Type Of Tea | Working Time |
| Black Tea | Total about 1 hour |
| Oolong Tea | Total about 1 hour |
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.
| SPECIFICATION |
Specification of DL-6YQT-6015 oolong tea shaking drum.
| Model | DL-6CYQT-6015 | ||
| Input voltage | 220V / 380V | ||
| Dimensions(L*W*H) |
2100×800×1000 mm
|
||
| Roller diameter | 600 mm | ||
| Roller length | 1500 mm | ||
| Drive motor | power | 0.75 kW | |
| speed | 1400 r/min | ||
| Rated voltage | 220/380 V | ||
| Working speed of roller | 0-30 r/min | ||
| Roller materials | Bamboo | ||
| Capacity | 32 kg/time | ||
All specification list of tea shaking drum.
| Model | 6CYQT-6015 | 6CYQT-8012 | 6CYQT-9025 | 6CYQT-9025-2 |
| Drum Diameter | 60 cm | 80 cm | 90 cm | 90 cm |
| Drum Length | 150 cm | 120 cm | 250 cm | 250 cm |
| Drum Quantity | 1 pcs | 1 pcs | 1 pcs | 2 pcs |
| Capacity | 32 kg | 46 kg | 120 kg | 240 kg |
We also can customized the oolong tea shaking drum machine according your needs.
| DETAILS |

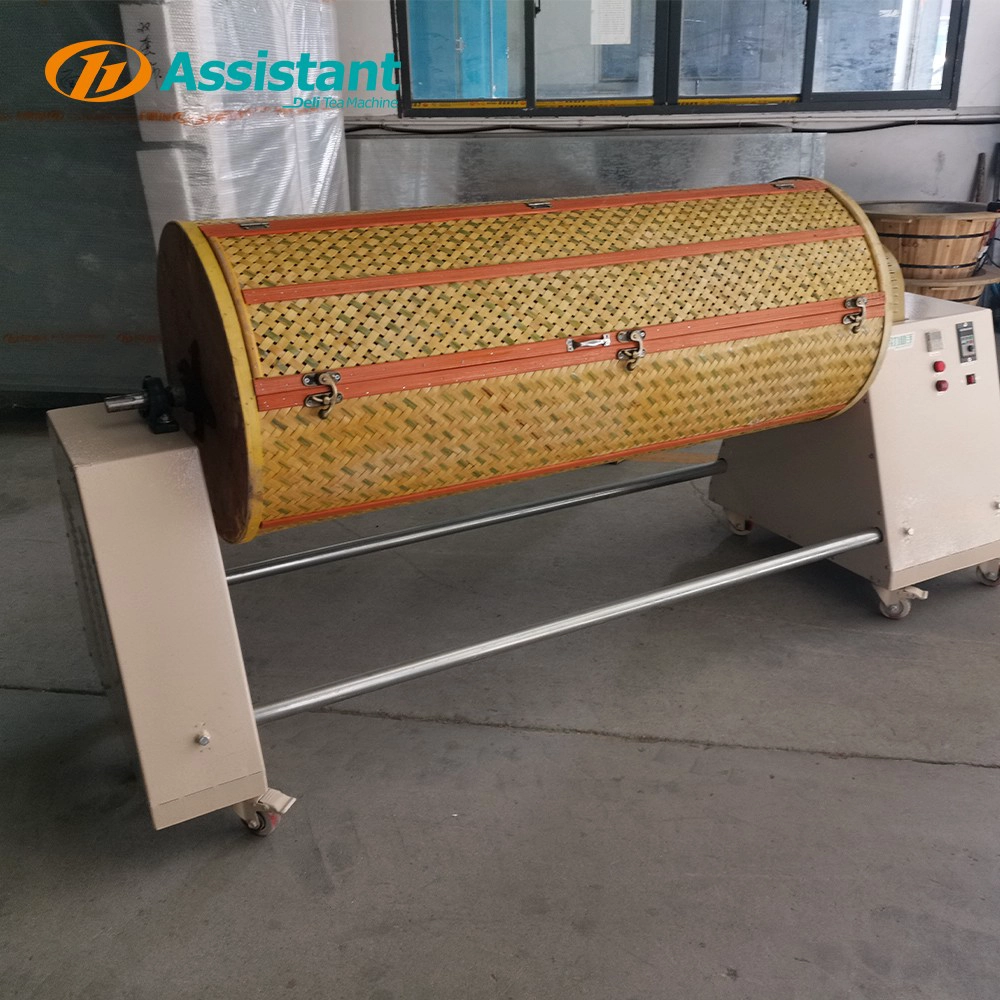

Convenient design of copper lock, with spring locking function, can quickly open and close bamboo door.

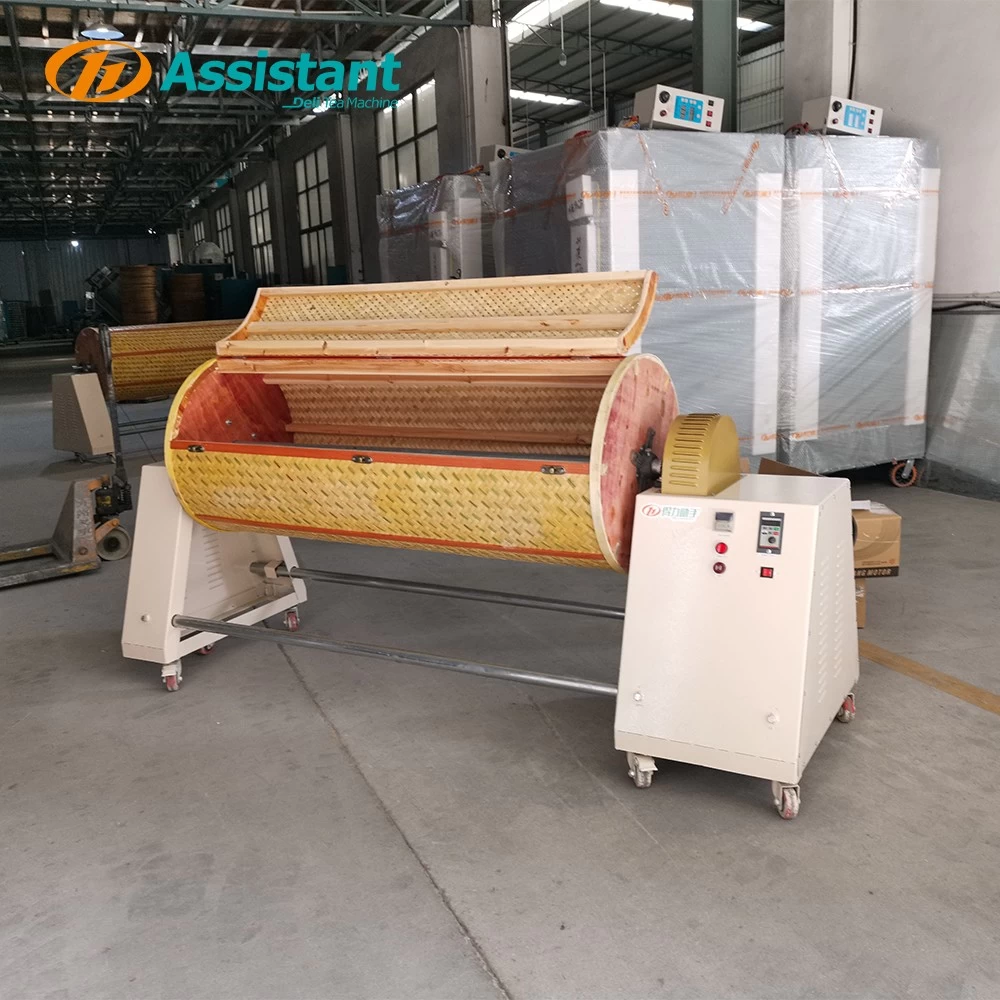

The bamboo door with holes can screen out the broken tea leaf dust during oolong tea tossing step, and can improve the quality of tea.
Steel tube and steel ring reinforcement design, the machine runs smoothly, and the body vibration is small.

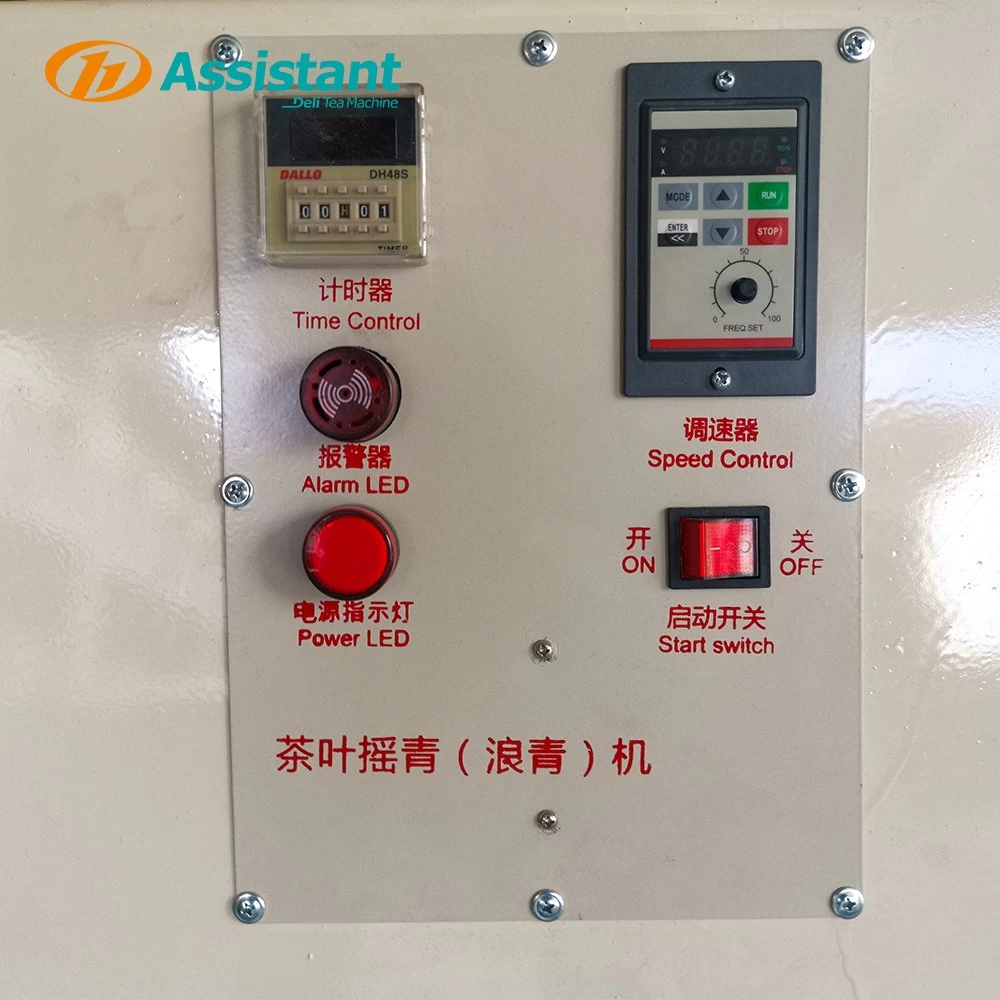

Integrated Chinese and English control panel, with time control function and adjustable speed, is the necessary equipment for the production of high-grade oolong tea.
