DL-4C-A use NATIKA 2 stroke gasoline engine, power 0.7kw 0.9HP, displacement 25.4cc, cutting width 45/50/60cm, 1 hour can pick about 500-600kg tea leaf.
| DESCRIPTION |

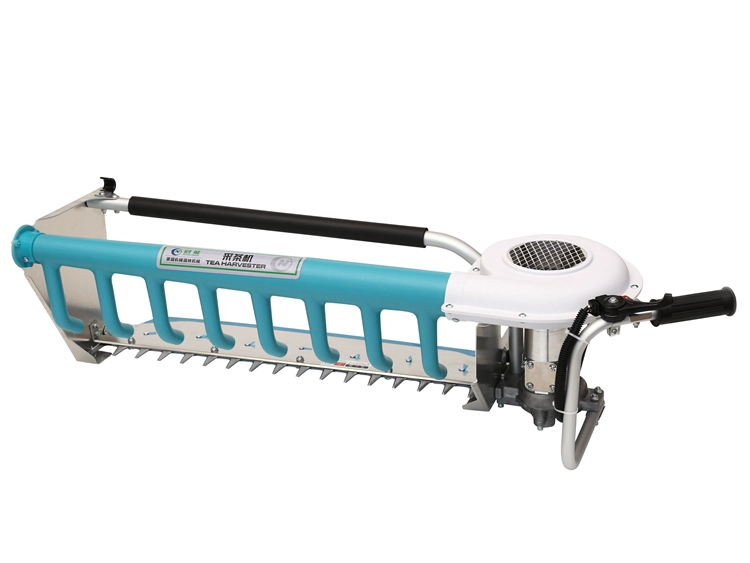

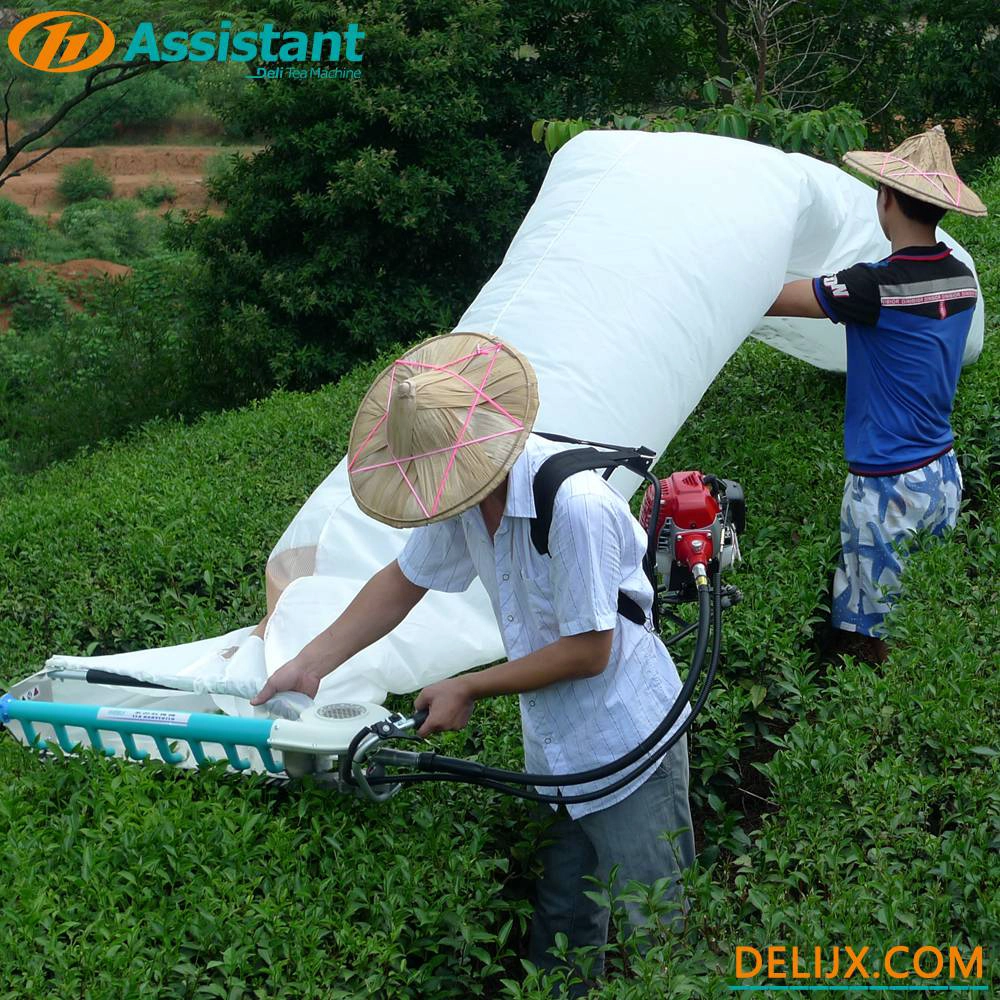

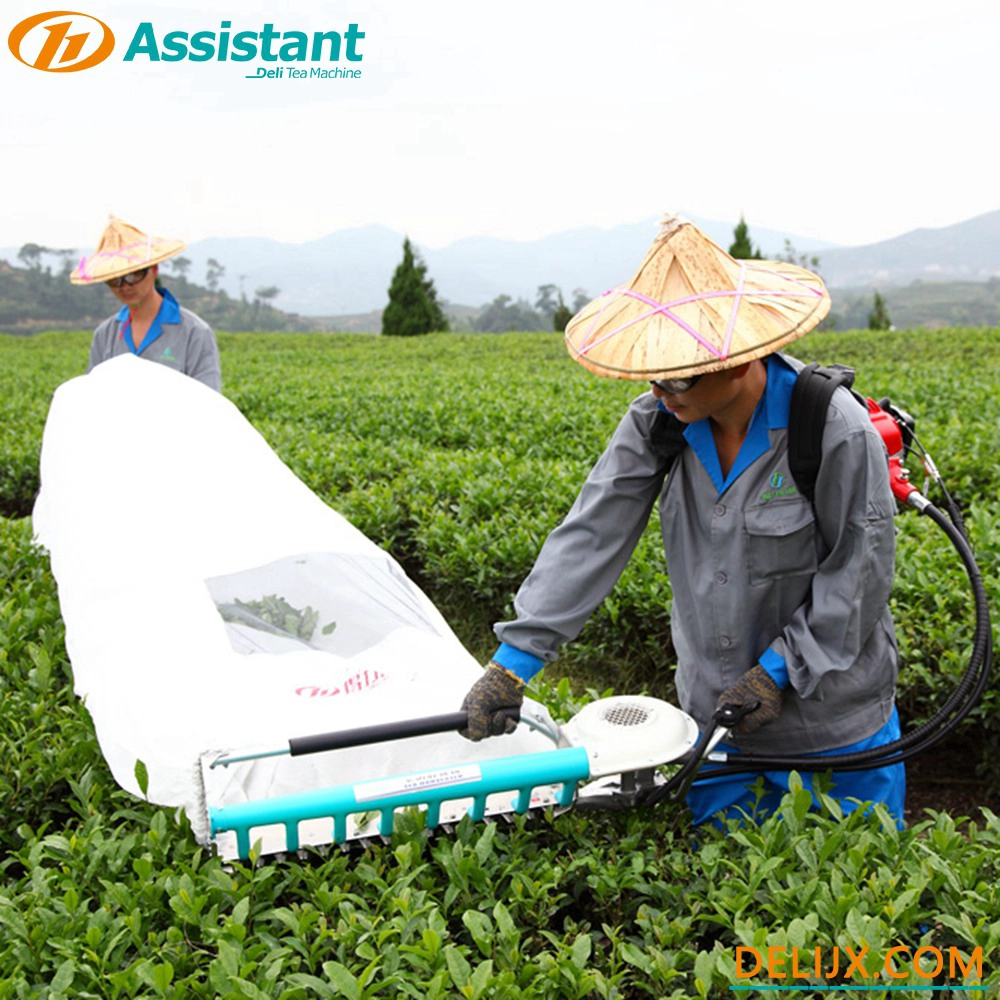

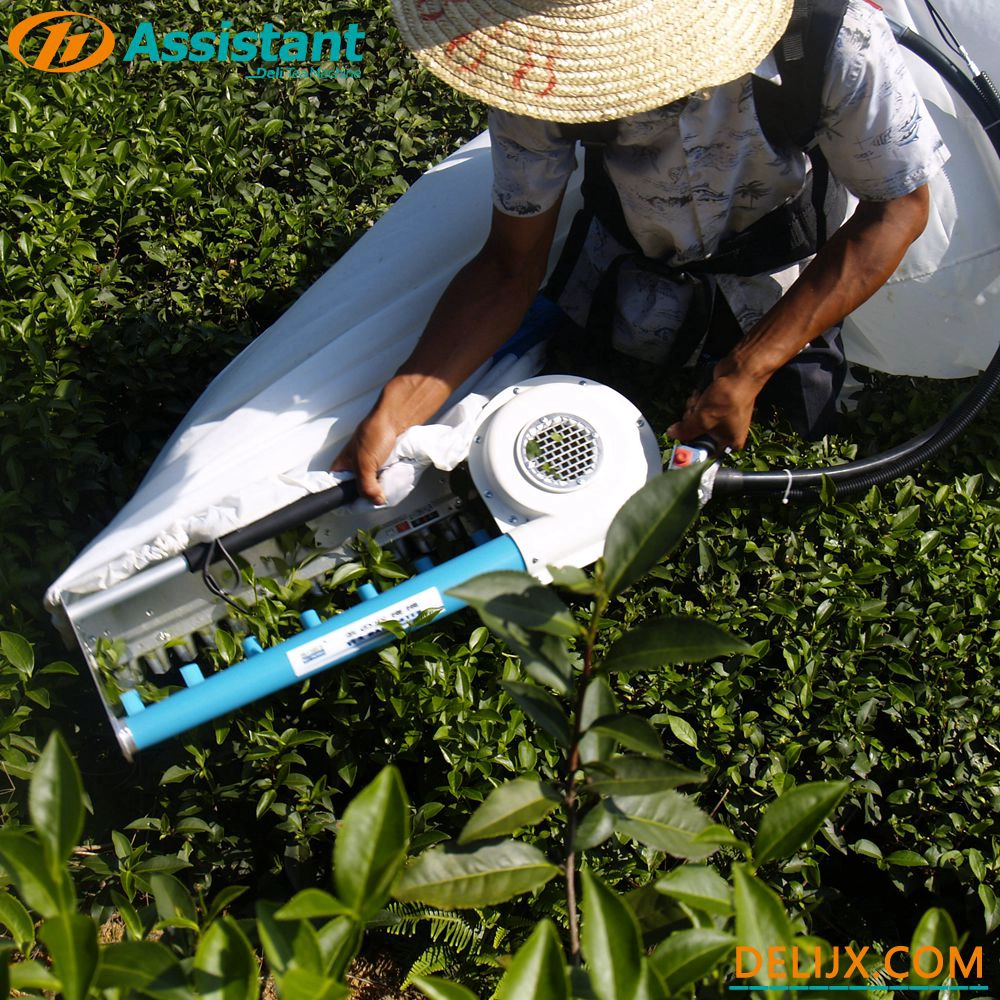

The Portable Gasoline Tea Plucking Machine is mainly used for tea picking in mountain, hilly, plain and other terrain. It is produced with international advanced technology. It has the advantages of low noise, large air volume, stable quality and high production efficiency. It is an ideal machine for tea picking.

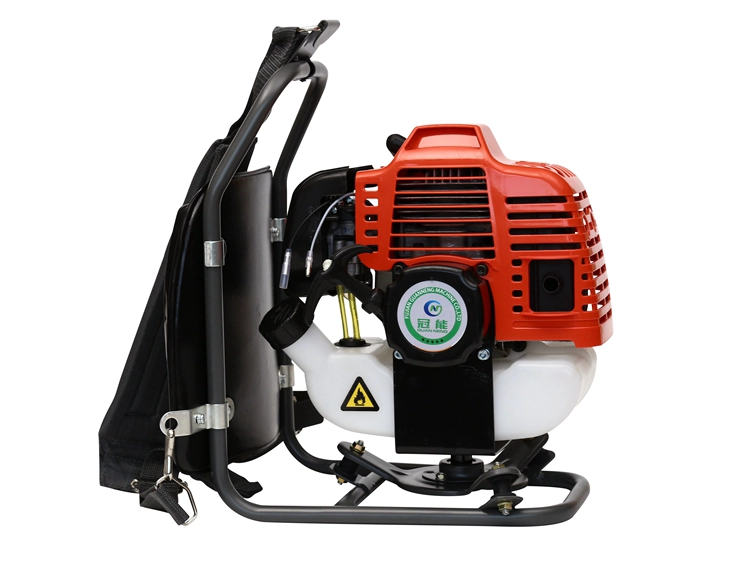

4C-A Law Weight Tea Harvesting Machine using our own engine NATIKA 2 stroke, 24.4 CC, 0.7KW gasoline engine, output power is larger than 4 stroke, please note that the ratio of engine oil to gasoline is 25:1. The performance is more stable, and the high temperature does not extinguish. Tea picking is more efficient and efficiency is 40 times that of manual labor.
| ADVANTAGE |
SK5 carbon tool steel has been quenched with high hardness and strong wear resistance. It can cut 1 cm thick branch directly.
Each set of tea picking machine is free of charge with a 6-meter long nylon cloth bag, which is wear-resistant and durable. The bag has a tie rope, and the working length can be adjusted arbitrarily.
Tea Leaf Plucking Machine after 20 years of continuous optimization and improvement, now all parts are produced by ourselves, we ensure that every part is of the best quality, and the service life is increased by 100% compared with peers!
For the tea producing areas with large leaves and the special needs of picking lavender and other flower, we have developed a new type of increased turret, which is 10 cm higher than the conventional one, which greatly improves the picking efficiency.
| DETAILS |
![]()

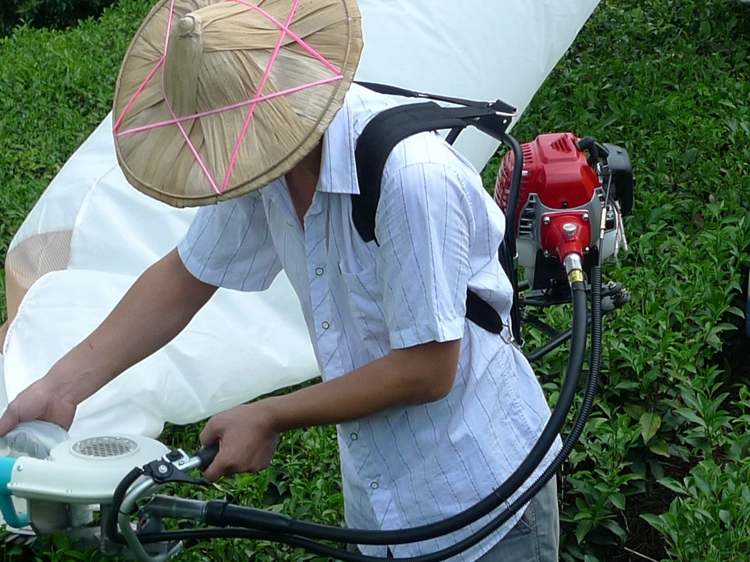

Custom widened and thickened shoulder strap. The width of the strap is widened by 30% and the thickness is increased by 20%. The back board is natural against the waist and conforms to ergonomics, the shoulder and waist will not ache during use.
![]()
Ergonomic handle design, reasonable balance weight of knife rest, more labor-saving tea picking
![]()

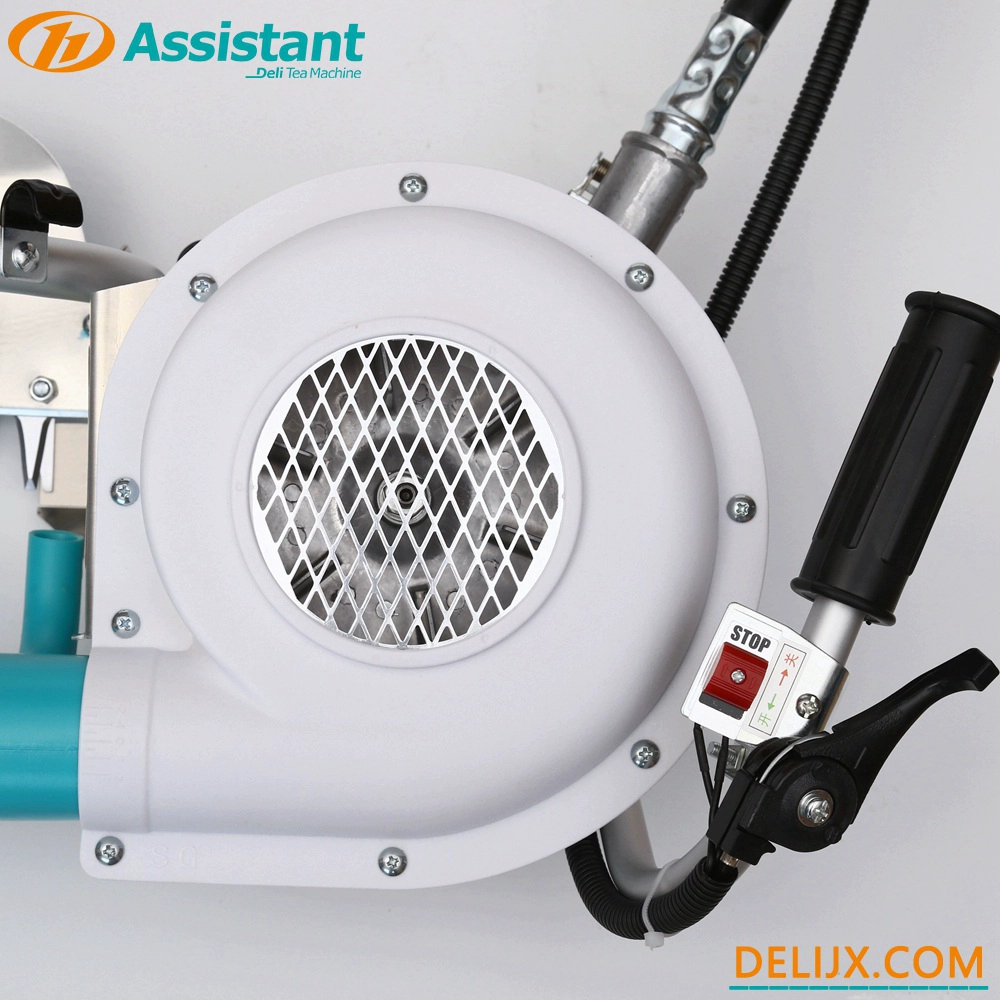

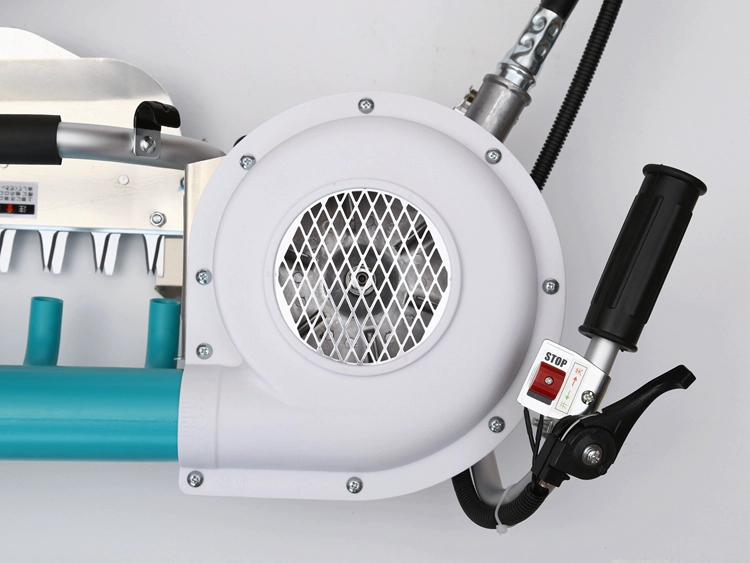

Independently designed fan blade and fan cover, plastic fan and aluminum fan are available for higher strength and more sufficient air volume
![]()

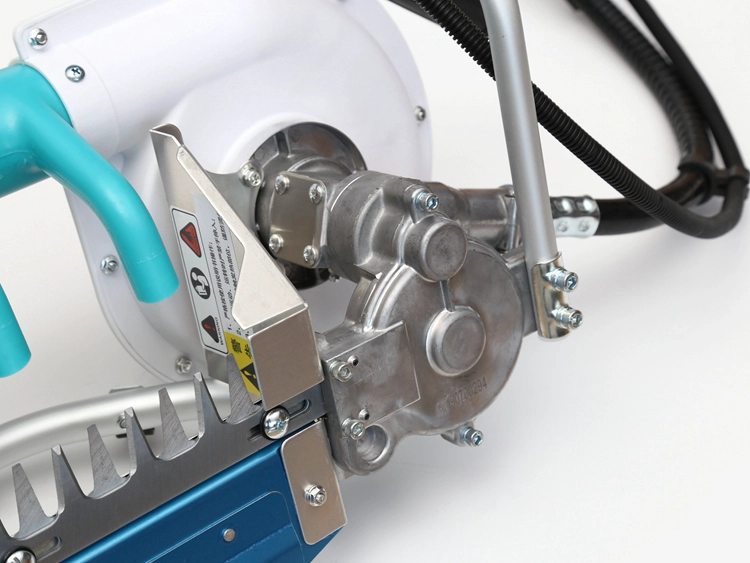

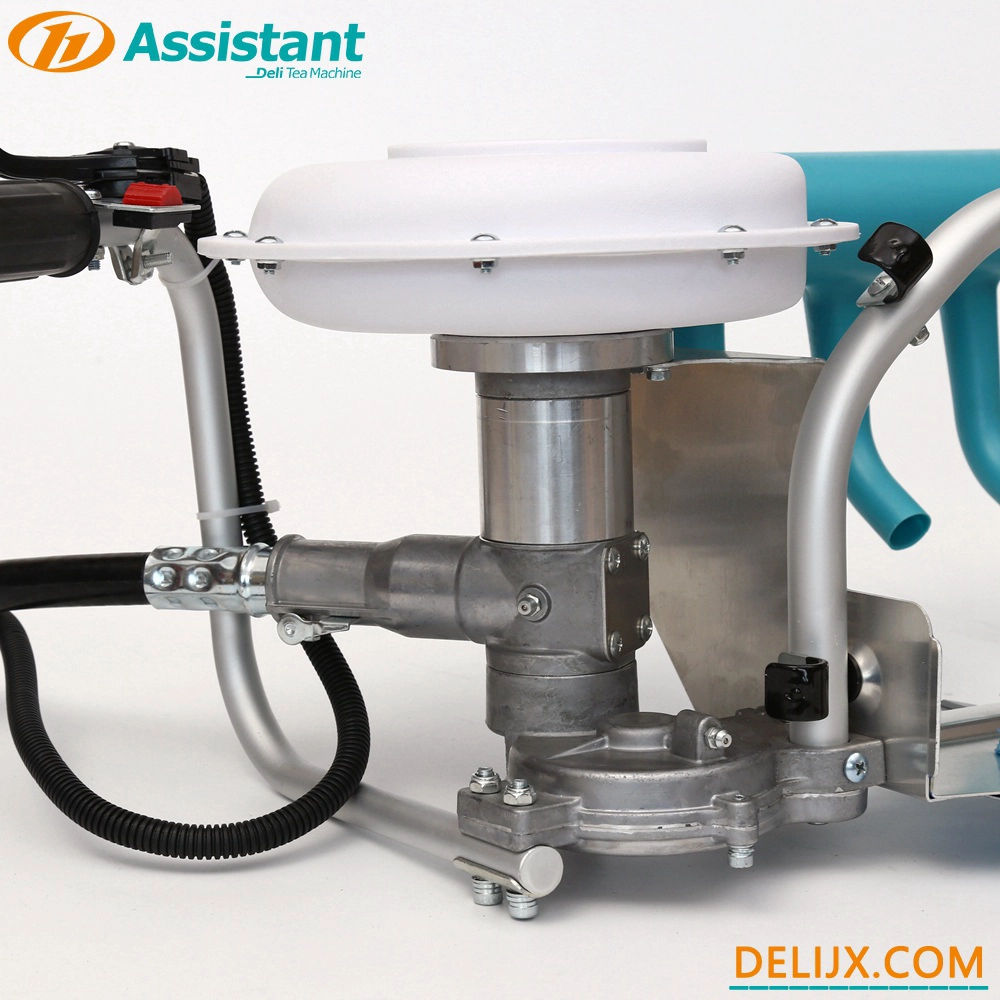

Since eight years ago, we were not satisfied with using gearbox accessories of the same poor quality as other peers. We spent hundreds of thousands of dollars to build our own gearbox components, which increased the life of the machine by 100%
| SPECIFICATION |
Petrol Opereted Tea Plucking Machine specification list:
| Model | DL-4C-A |
| Cutting Width | 40/50/60 cm |
| Engine Model | NATIKA 1E34F |
| Stroke | 2 Stroke |
| Displacement | 25.4 CC |
| HP | 0.9HP |
| Power | 0.7 KW |
| Total weight | 9.2kg |
![]()
Specification of all of Gasoline Tea Harvester Machine.
| Model | Engine | Stroke | Power |
| DL-4C-H3 | HONDA GX35 | 4 Stroke | 1.35 KW |
| DL-4C-H2 | HONDA GX25 | 4 Stroke | 0.81 KW |
| DL-4C-Z | KOMATSU G26LS | 2 Stroke | 0.81 KW |
| DL-4C-T | MITSUBISHI TU26 | 2 Stroke | 0.7 KW |
| DL-4C-S | HUASHENG 1E34F | 2 Stroke | 0.7 KW |
| DL-4C-A | NATIKA 1E34F | 2 Stroke | 0.7 KW |
| DL-4C-S39 | HUASHENG 139FA | 4 Stroke | 0.7 KW |
If you have special need, it can be customized according to the needs of customers.
