Gas Heating Automatic Tea Roasting Pot For Best Quality Green Tea DL-6CSTG-100

DL-6CSTG-100 use gas heating, imitate tea master roasting tea by hand, with hot air blowing system, the processed tea is comparable to the master's Handmade tea, pot diameter 100cm, speed and temperature adjustable. Capacitu about 20 kg per batch.

  • Model : DL-6CSTG-100
  • Dimension : 1300×1780×1550 mm
  • Voltage : 220/50 V/Hz
  • Pot inner diameter : 1000 mm
  • Pot inner depth : 950 mm
  • Pot speed : 5-37 rpm
  • Heating type : Liquid gas
  • Efficiency : 20 kg/batch
  • Product Details
   DESCRIPTION

This gas heating Tea Roasting Pot highly imitates the process of manual tea roasting; the industry's first pot can rotate 360 degrees, the tea is heated without dead corners, and the fixation is more uniform.
We are the first company in the industry to install hot air pipes on the pot body. You can choose whether to blow hot air into the machine. The hot air can quickly drain the water vapor from the pot to prevent the tea from being stuffed and affecting the tea quality.
The tea made from this machine has almost the same taste as the tea made by an experienced teacher. If you want to produce high-quality tea, this machine can greatly improve the quality of your tea.
This machine uses gas heating, energy-saving, and environmental protection, and the thickness of the steel plate is 6mm. The quality of the tea is even, which is completely close to the tea produced by hand. It is an ideal machine for producing high grade tea!

   ADVANTAGE

1. T-shaped combustion fire platoon covering the tea fixation barrel, burning area up to 100%.
2. There are three valves at the bottom, which can be manually ignited in case of power failure, so tea leaves are not wasted.
3. Automatic solenoid valve design, heating automatically starts and stops, the solenoid valve automatically closes when the temperature reaches the set temperature, and the machine stops heating. When the temperature is lower than the set temperature, the solenoid valve opens and the machine reheats, which can save fuel.
4. Preserve the design of the combustion head of the constant burning flame, reserve the constant burning flame after the ignition is successful, re-ignite from the constant burning flame, reduce the pressure of the ignition needle and the ignition coil, and improve the service life.

   APPLICATION

Tea Roasting Pot is suitable for processing black / green / oolong / white / dark / herbal tea, the following is the working time required for the above tea production.

 Type Of Tea  Working Time
 Green Tea  15-20 Minutes
 Oolong Tea  15-20 Minutes
 Herbal Tea  15-20 Minutes

The above data is for reference only, and the specific processing time shall be determined according to the actual situation.

   SPECIFICATION

Green Tea Factory Manufacturing Processing Machinery Supplier

Gas Heating Tea Roasting Pot specification list:

Model DL-6CSTG-100
Dimension 1300×1780×1550 mm
Voltage 220/50 V/Hz
Pot inner diameter 1000 mm
Pot inner depth 950 mm
Drive motor Power 0.5 KW
Speed 1400 rpm
Voltage 220 V
Pot speed 5-37 rpm
Heating type Gas
Efficiency 20 kg/batch

If you have special need, it can be customized according to the needs of customers.

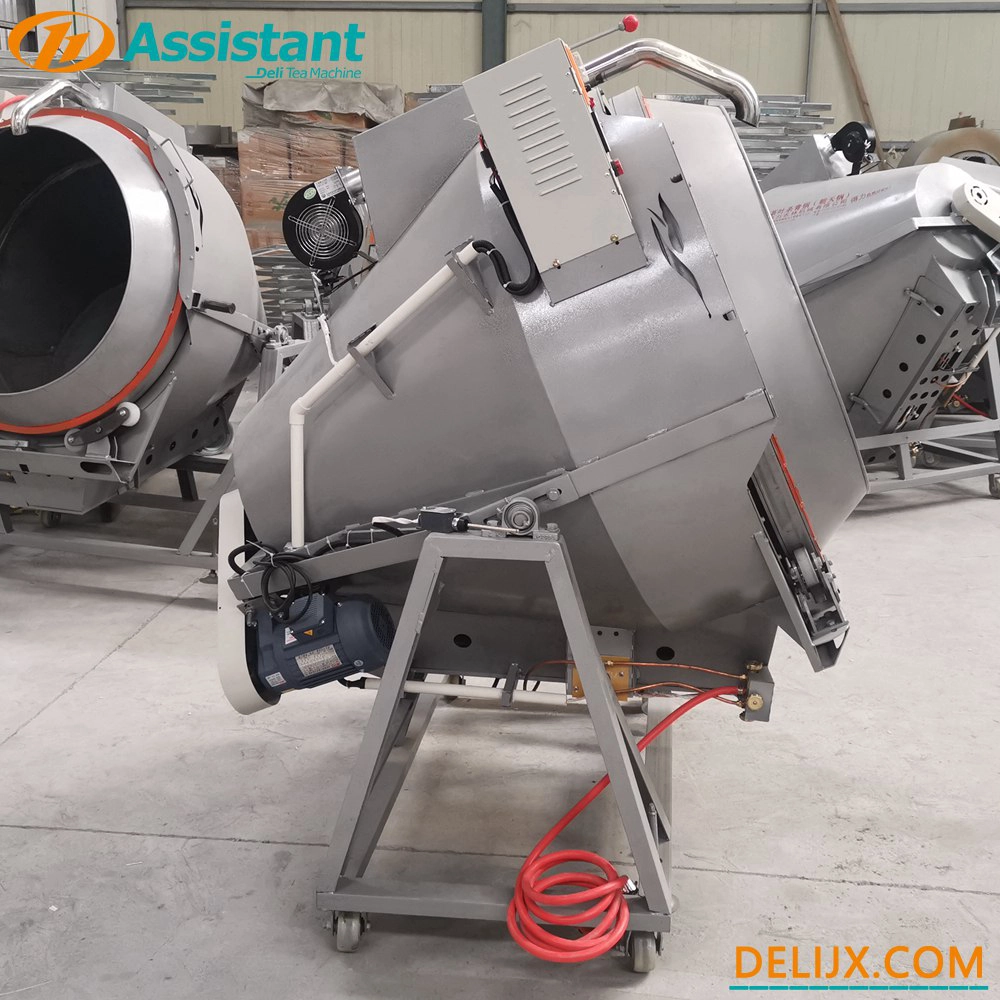

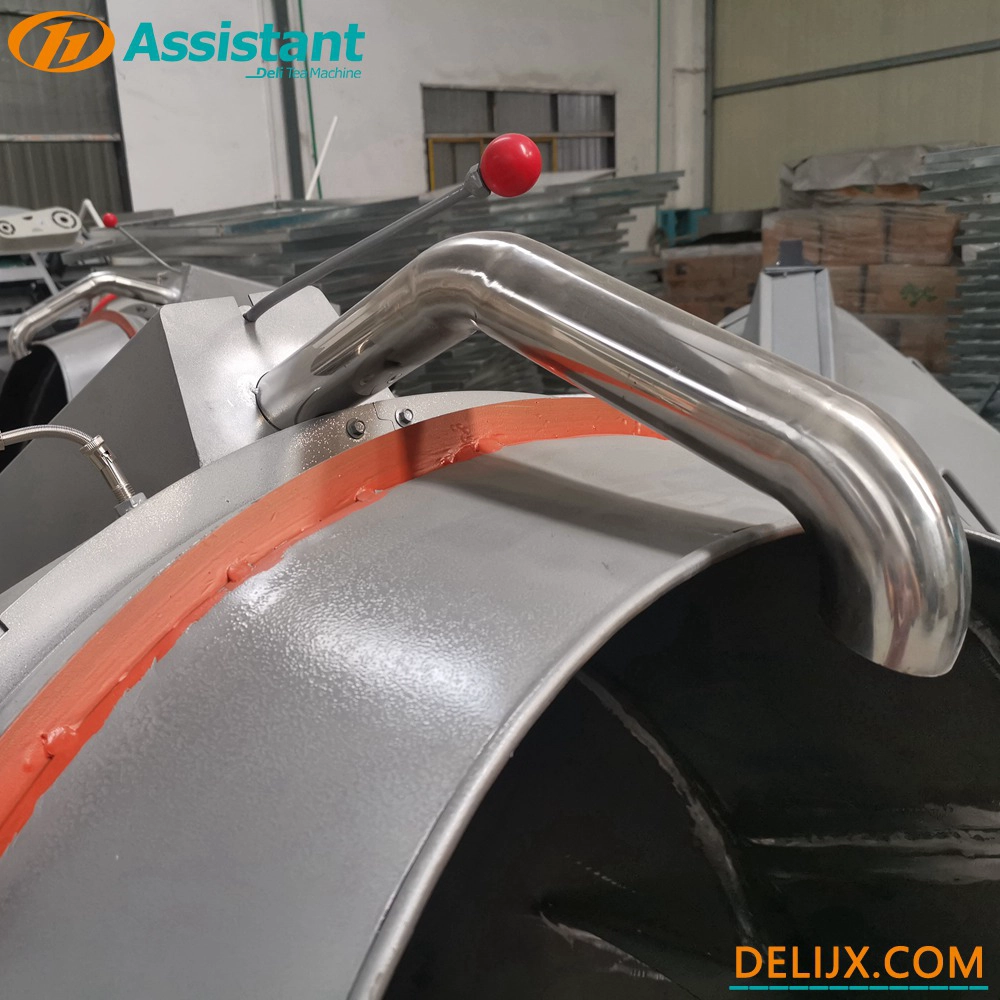

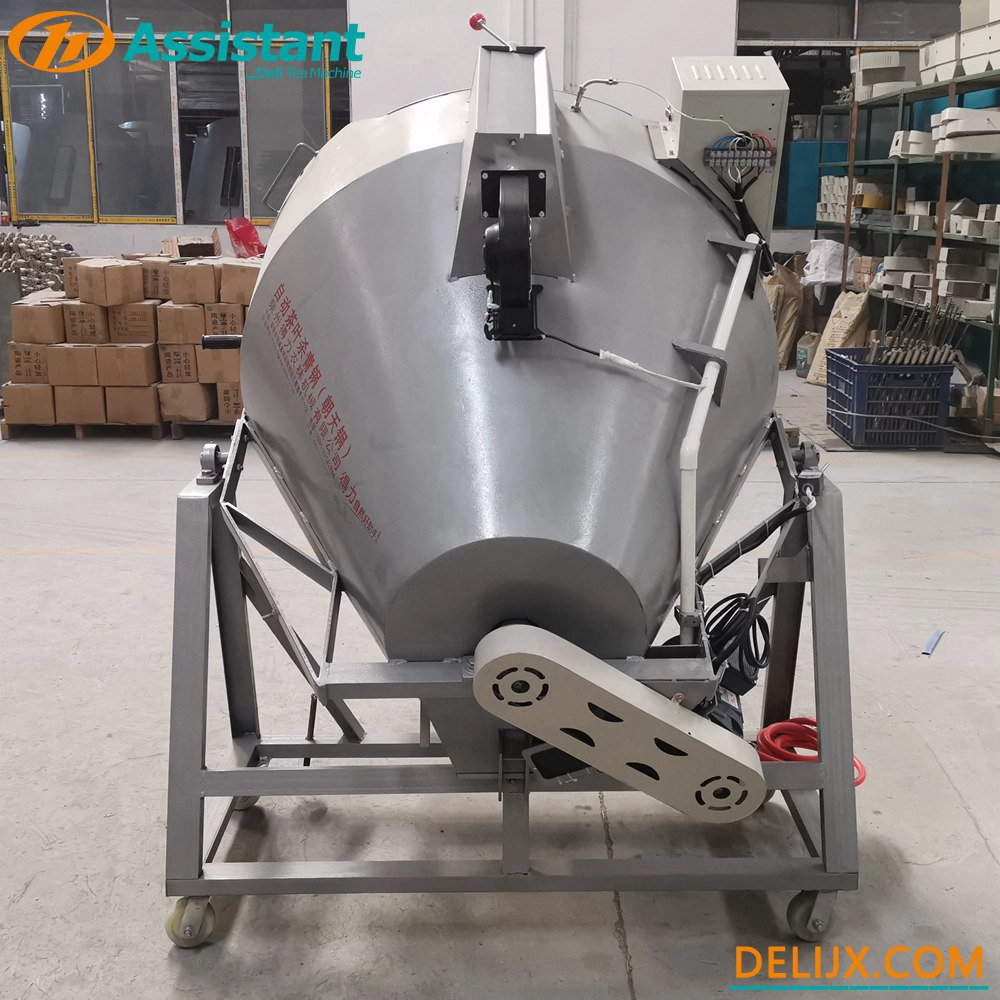

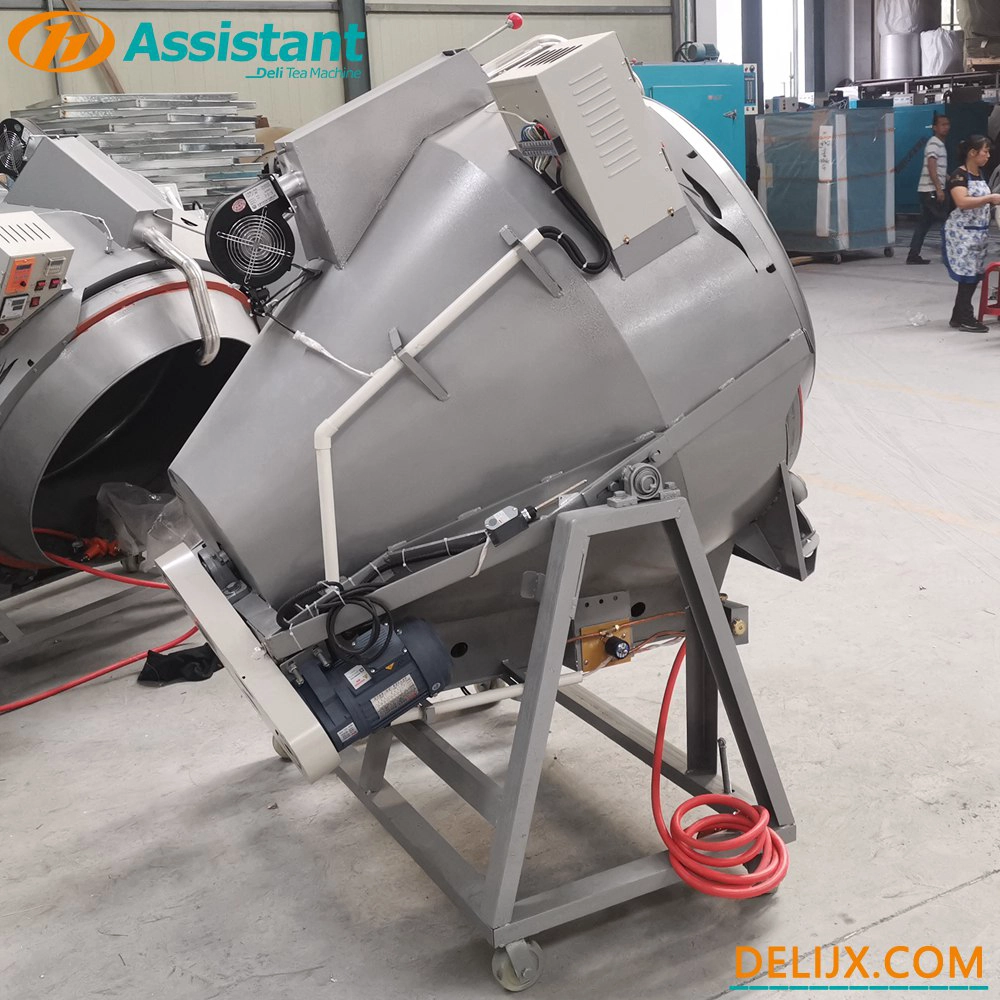

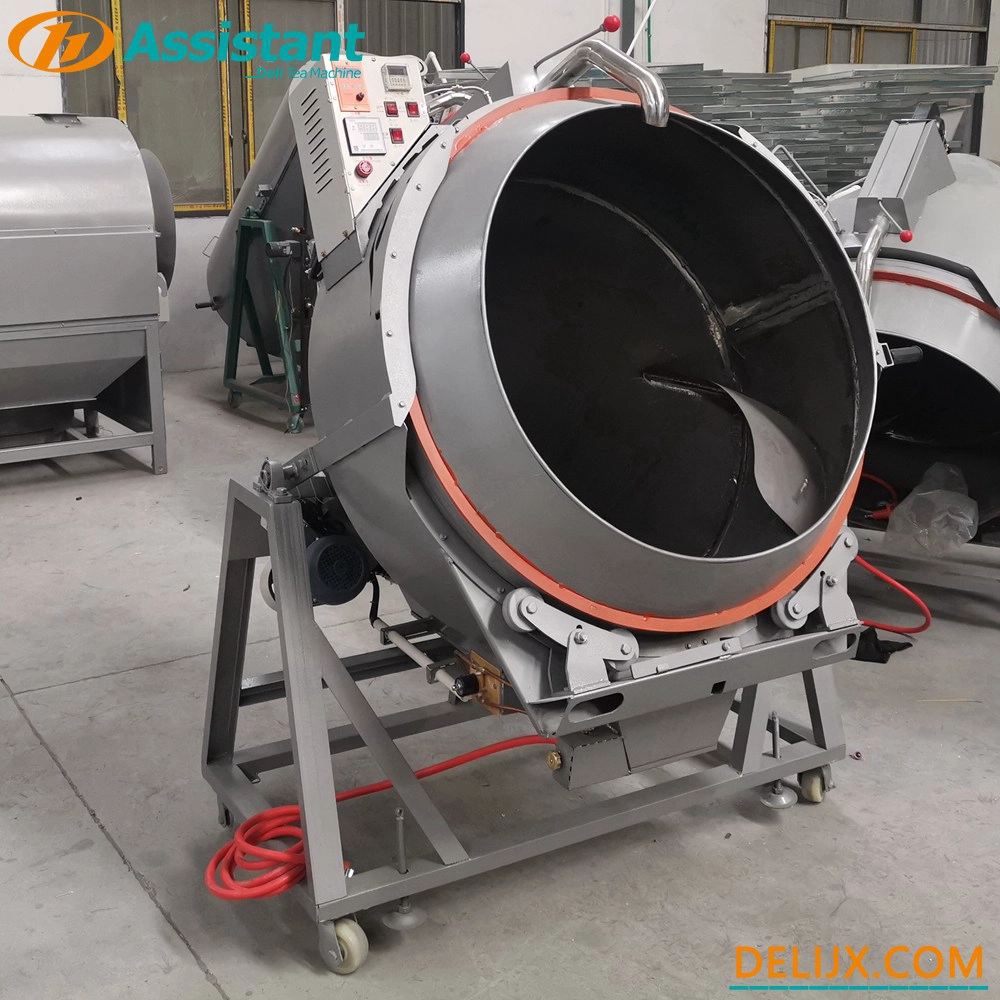

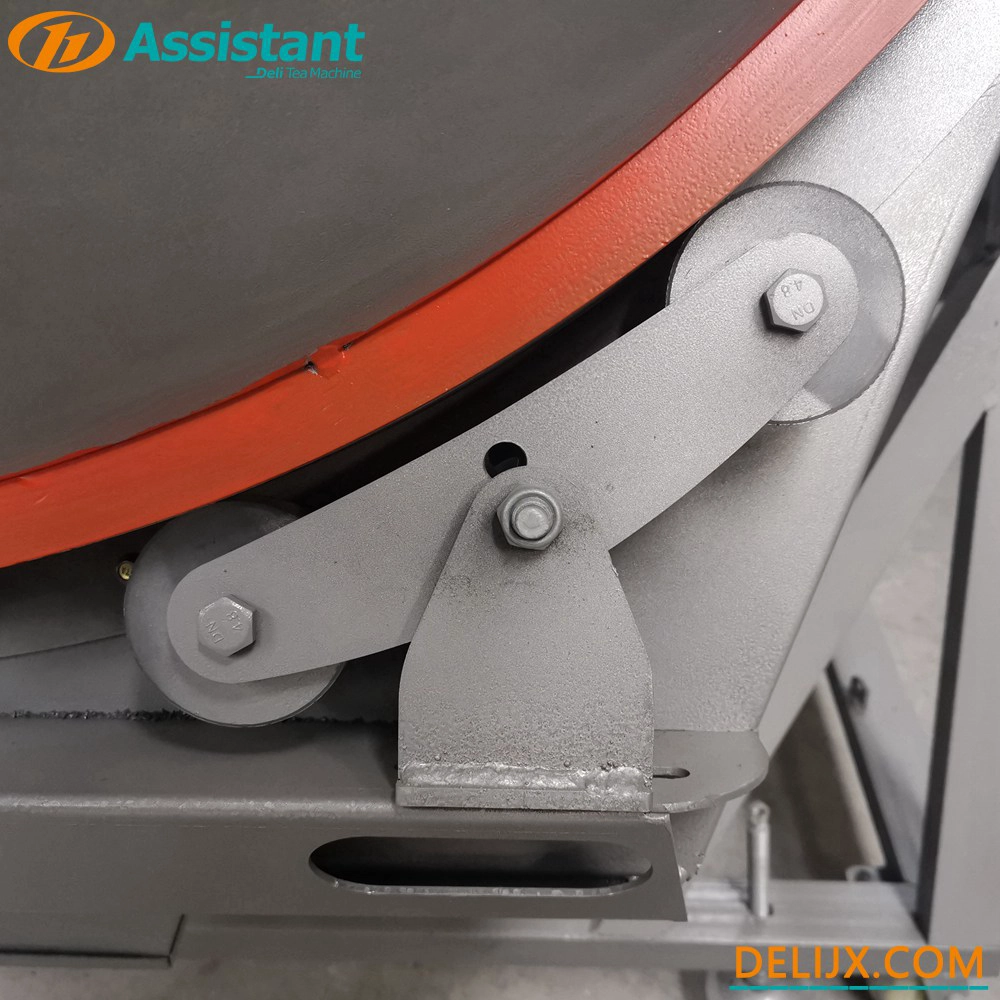

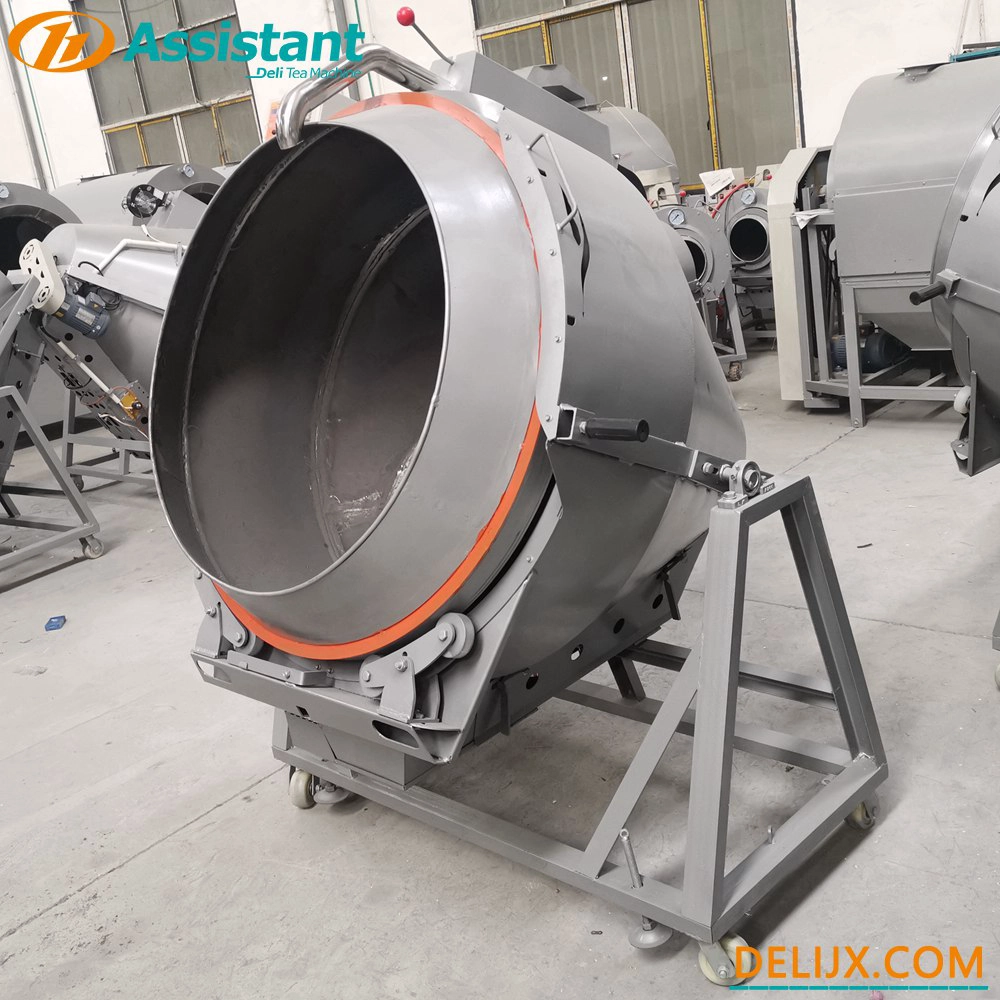

   PHOTOS

Green Tea Factory Manufacturing Processing Machinery Supplier

Green Tea Factory Manufacturing Processing Machinery Supplier

Green Tea Factory Manufacturing Processing Machinery Supplier

Green Tea Factory Manufacturing Processing Machinery Supplier
