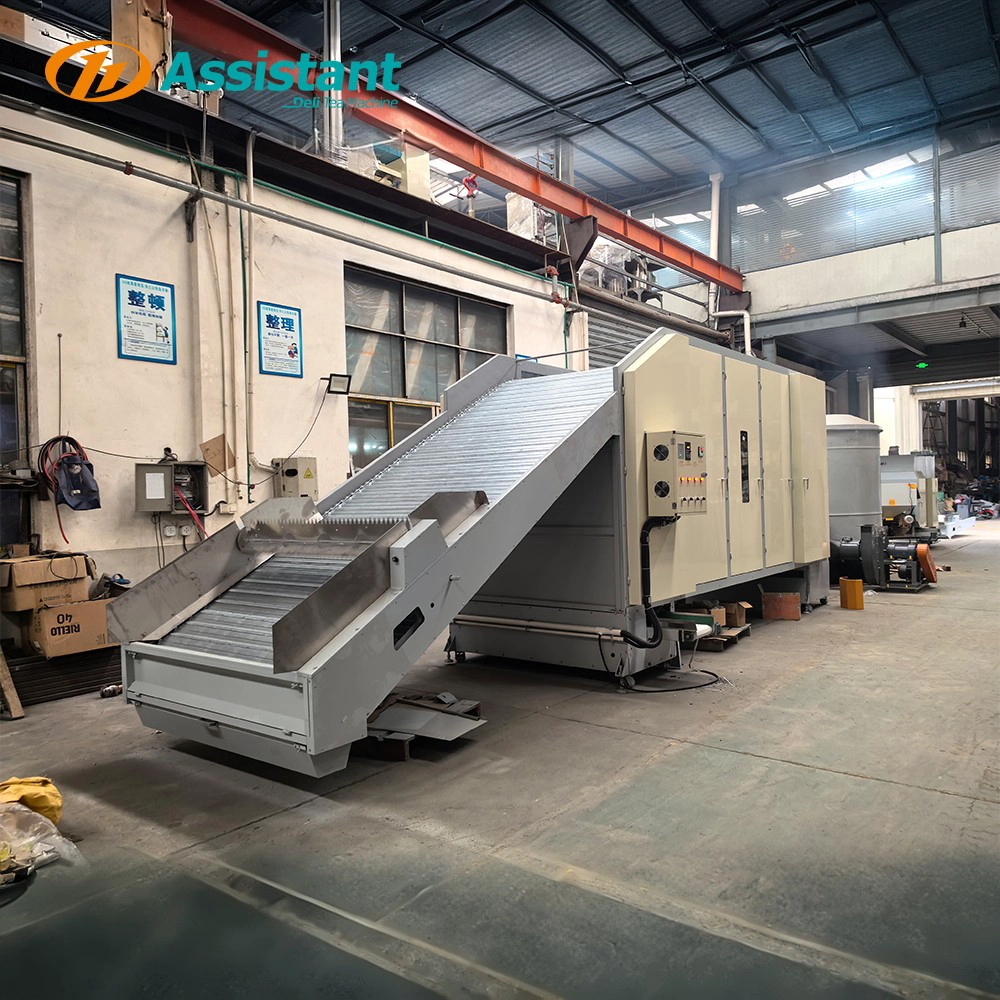

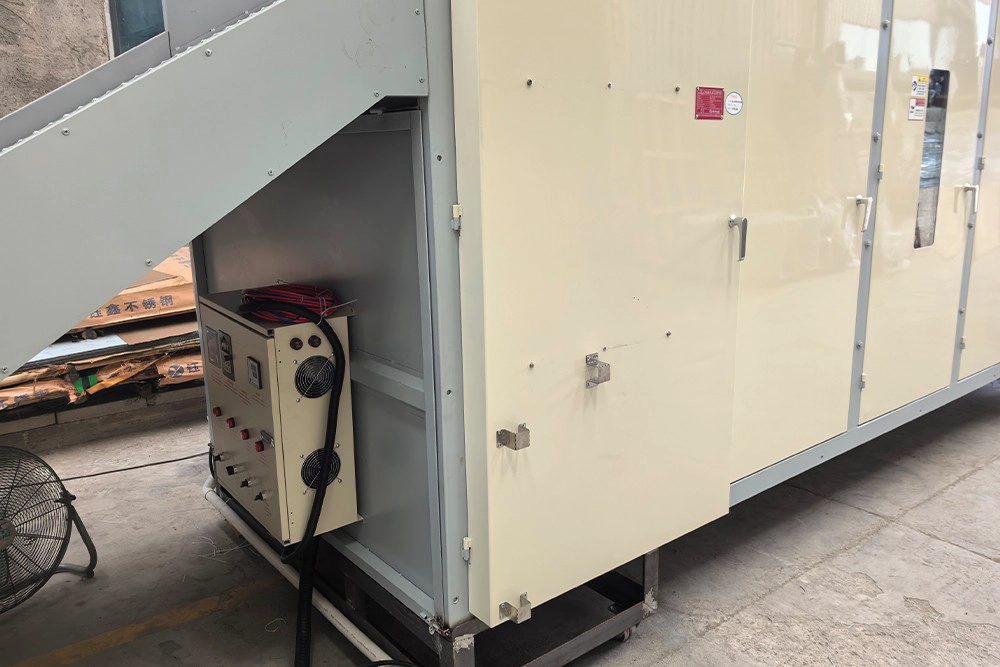

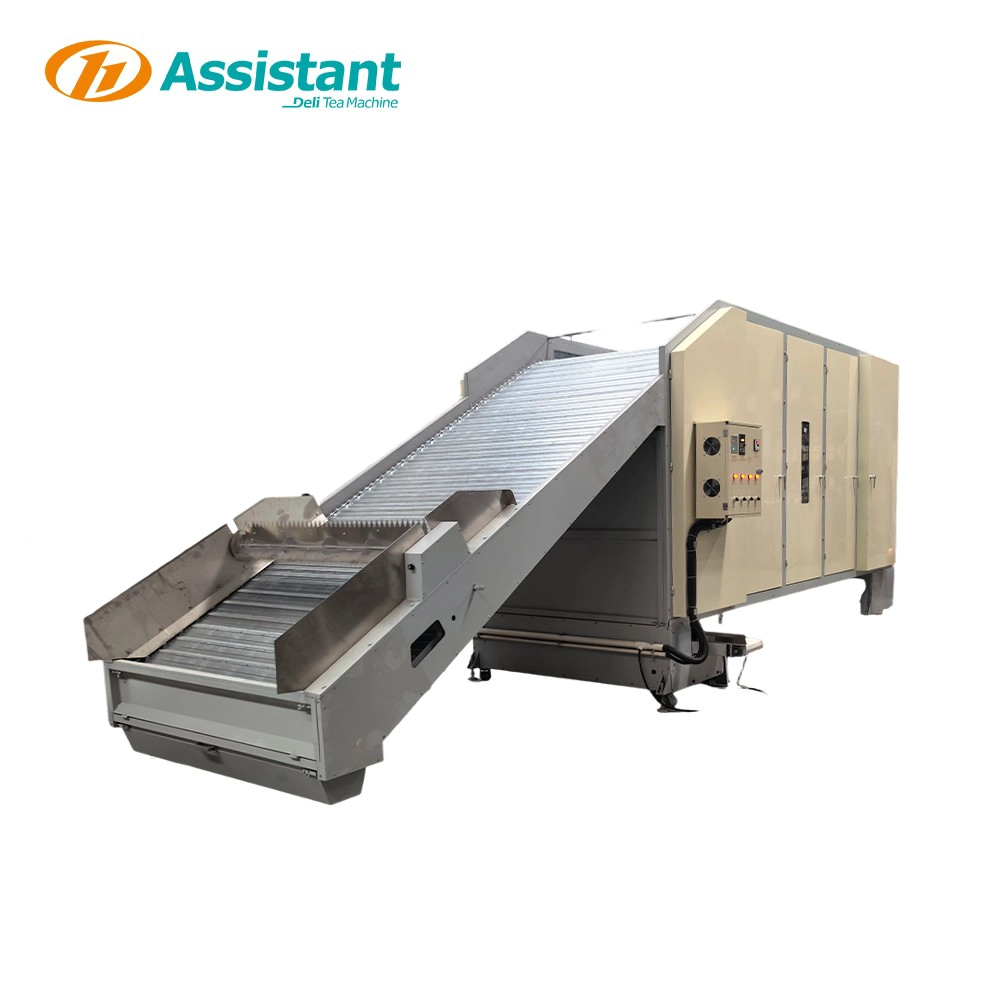

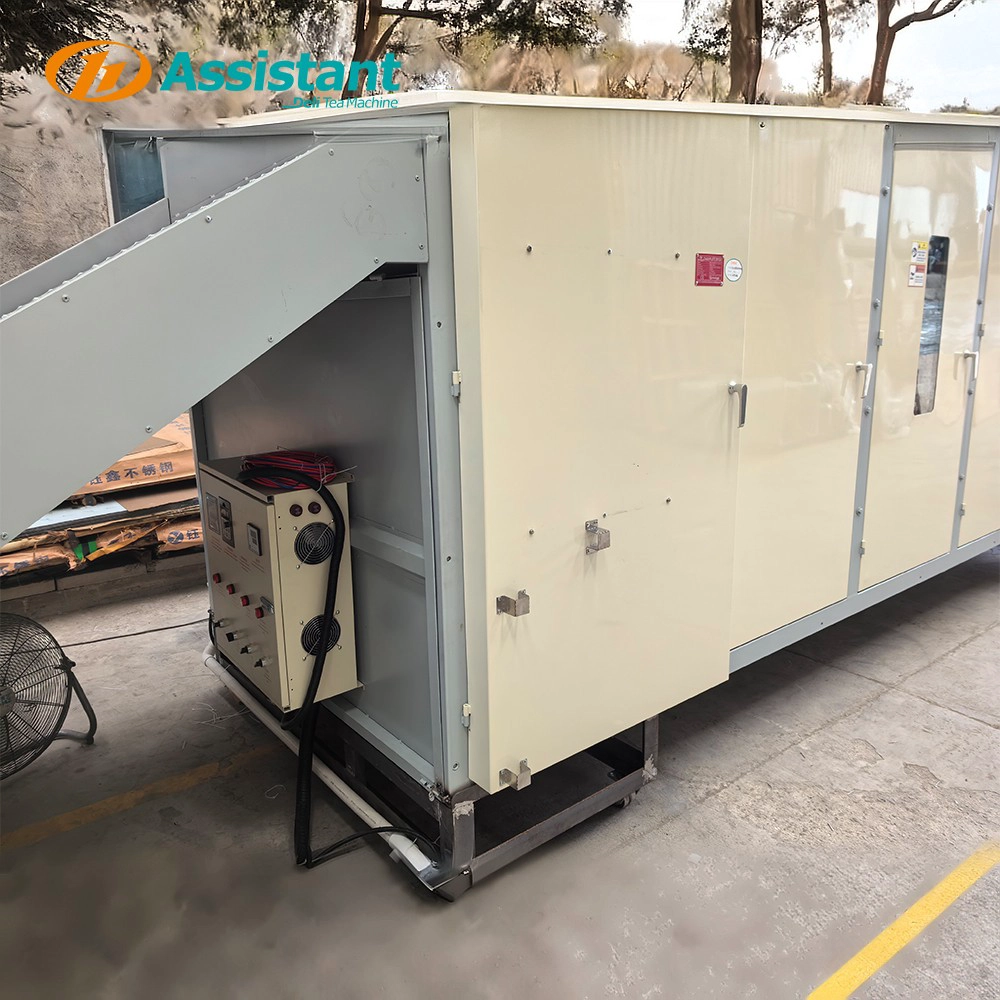

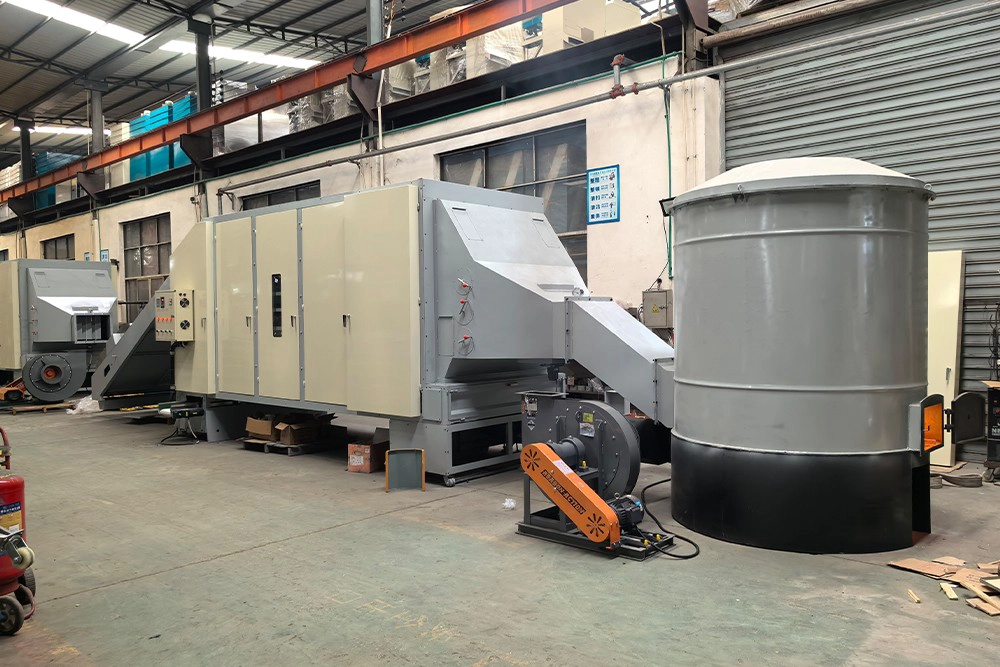

DL-6CHL-CM60 Chain Plate Wood/Coal Drying Machine is suitable for continuous tea production lines and drying fruits, vegetables, meat, etc., saving labor and energy. Made of 6mm super alloy steel with high-quality diesel burners and efficient heat exchange devices, it features rapid heating and low heat loss.
DL-6CHL-CM60 Chain Plate Wood/Coal Drying Machine is suitable for continuous tea production lines and drying fruits, vegetables, meat, etc., saving labor and energy. Made of 6mm super alloy steel with high-quality diesel burners and efficient heat exchange devices, it features rapid heating and low heat loss. Equipped with a high-power motor + hot air circulation system, it dehumidifies stably, saves fuel (120kg wood per hour tested), adjusts air volume and drying time, operates quietly with minimal tea damage to ensure quality. Supporting stainless steel and size customization, it’s the preferred choice for mass production.
ADVANTAGE
Fuel Flexibility：Supports wood and coal as fuel, with low fuel cost and strong adaptability to regions with abundant biomass resources (e.g., tea-growing mountains).

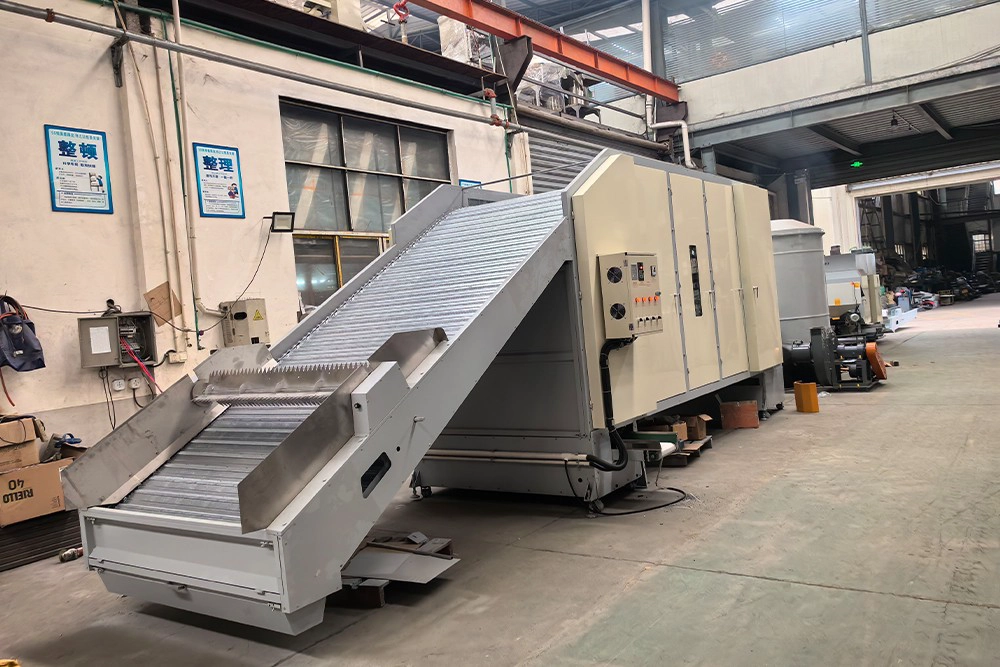

Continuous Operation：Chain plate conveyor enables continuous feeding and discharging, avoiding the inefficiency of batch drying, and is suitable for medium and small tea processing plants with stable output.
Uniform Drying：Even hot air distribution and stable conveyor speed ensure that each part of the tea is heated consistently, reducing the rate of substandard products (e.g., over-dried or damp tea).
Simple Operation & Maintenance：The structure is relatively simple, with low requirements for operators; the chain plate and combustion chamber are easy to clean and maintain.
APPLICATION
Tea Variety：Suitable for the drying process of green tea, black tea, oolong tea, dark tea, and other major tea types (adjustable temperature to match different tea processing techniques).
Production Scale：Medium and small tea processing plants, family workshops, or tea cooperatives (with estimated processing capacity of 30-80 kg/h, matching the output of small and medium-sized production lines).
Regional Adaptation：Areas with convenient access to wood/coal (e.g., mountainous tea areas in southern China, Southeast Asia) – no dependence on electricity or natural gas, reducing energy constraints.
Chain Plate Tea Drying Machine is suitable for processing black / green / oolong / white / dark / herbal tea, the following is the working time required for the above tea production.
Type Of Tea
Working Time
Black Tea
10-30 Minutes
Green Tea
10-30 Minutes
White Tea
10-30 Minutes
Oolong Tea
10-30 Minutes
Herbal Tea
10-30 Minutes
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.
The above data source: our local loose leaf tea, moisture content of wet tea : ≈ 50%, moisture content of dried tea : ≤5%.
If you have special need, it can be customized according to the needs of customers.
PHOTOS
CONTACT
If you are interested in this product, please contact us to get the price.
↑ ↑ Click the icon to get the latest price directly ↑ ↑
↓ ↓ You can also leave your contact information at the bottom. We usually contact you in about 10 minutes ↓ ↓
Tea Production Knowledge
Ideal for continuous tea production lines, also suitable for drying fruits, vegetables, meat and other agricultural products, a high-efficiency equipment for large-scale drying.
60㎡ drying area with 8 layers of drying plates, adjustable drying time 8-90min, 210-240kg/h wood consumption, suitable for large-scale mass production.

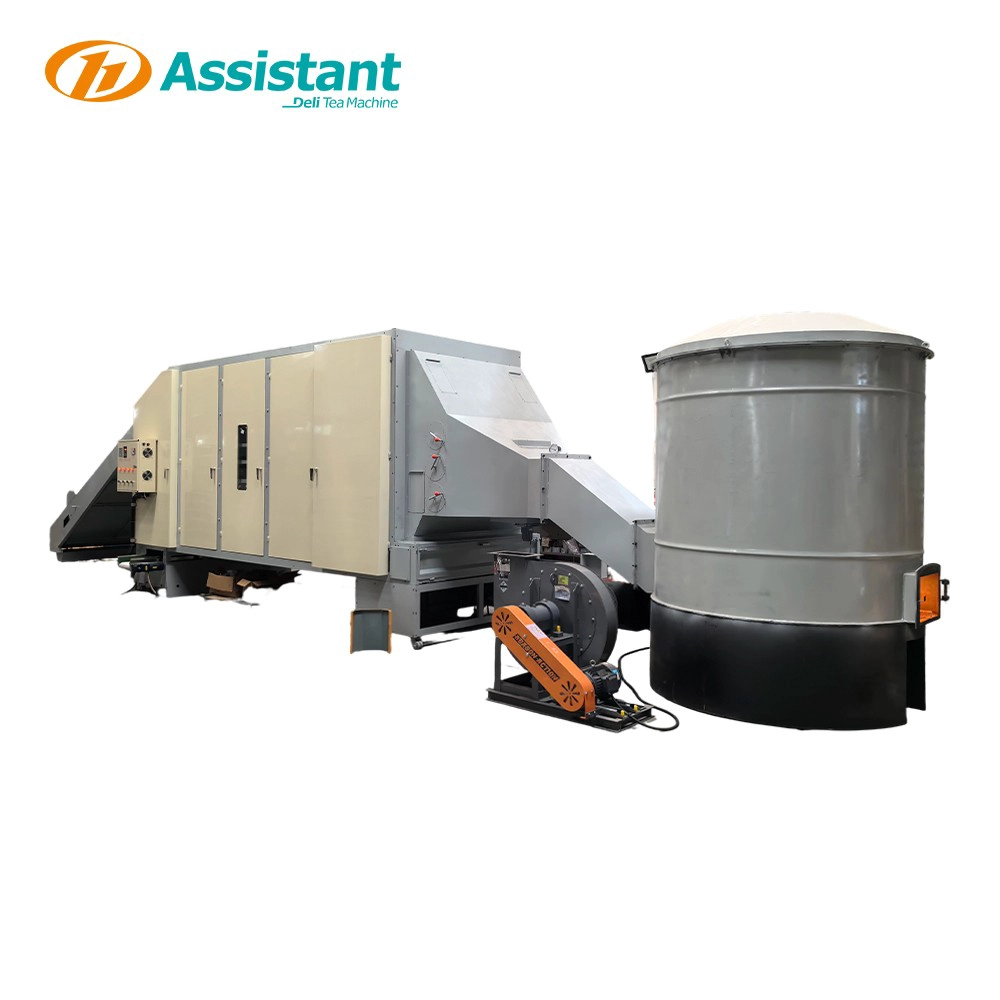

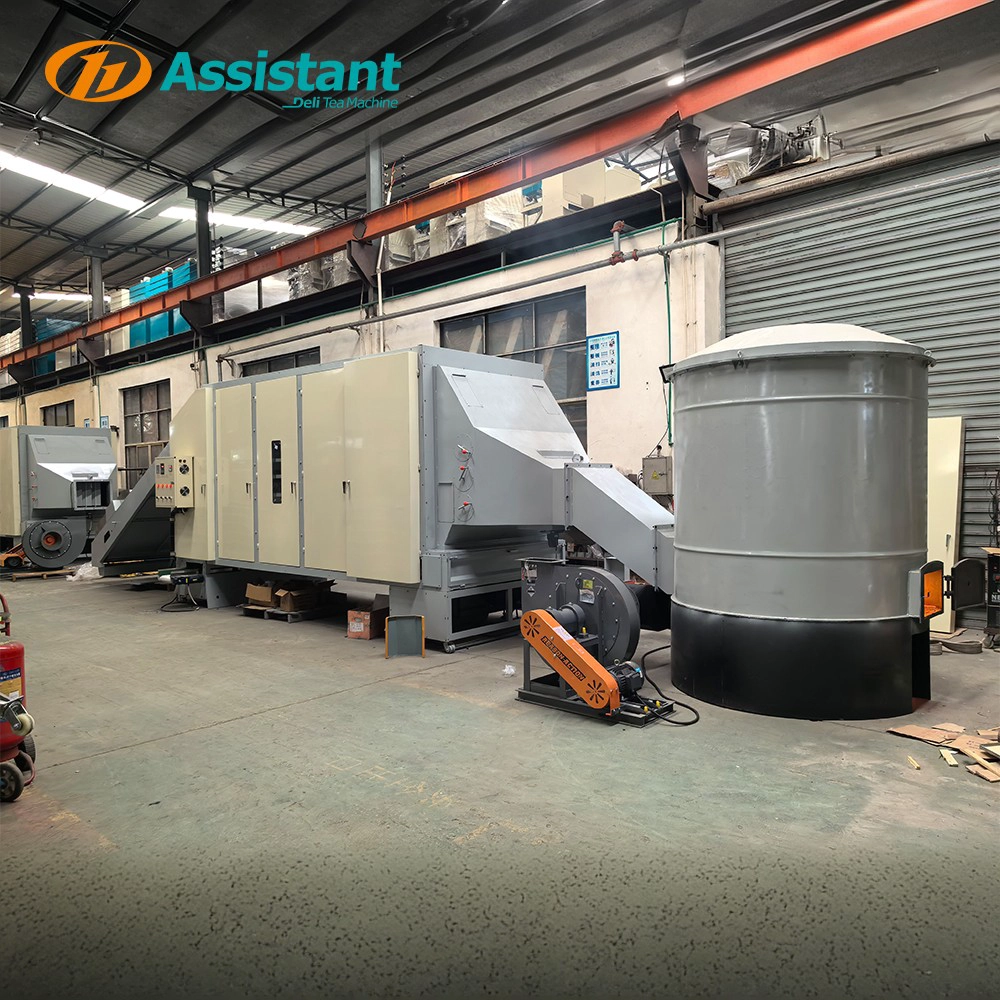

Hot air stove heating, compatible with wood/coal/pellet fuels, rated voltage 380V for industrial three-phase power, drive motor power 5KW.
