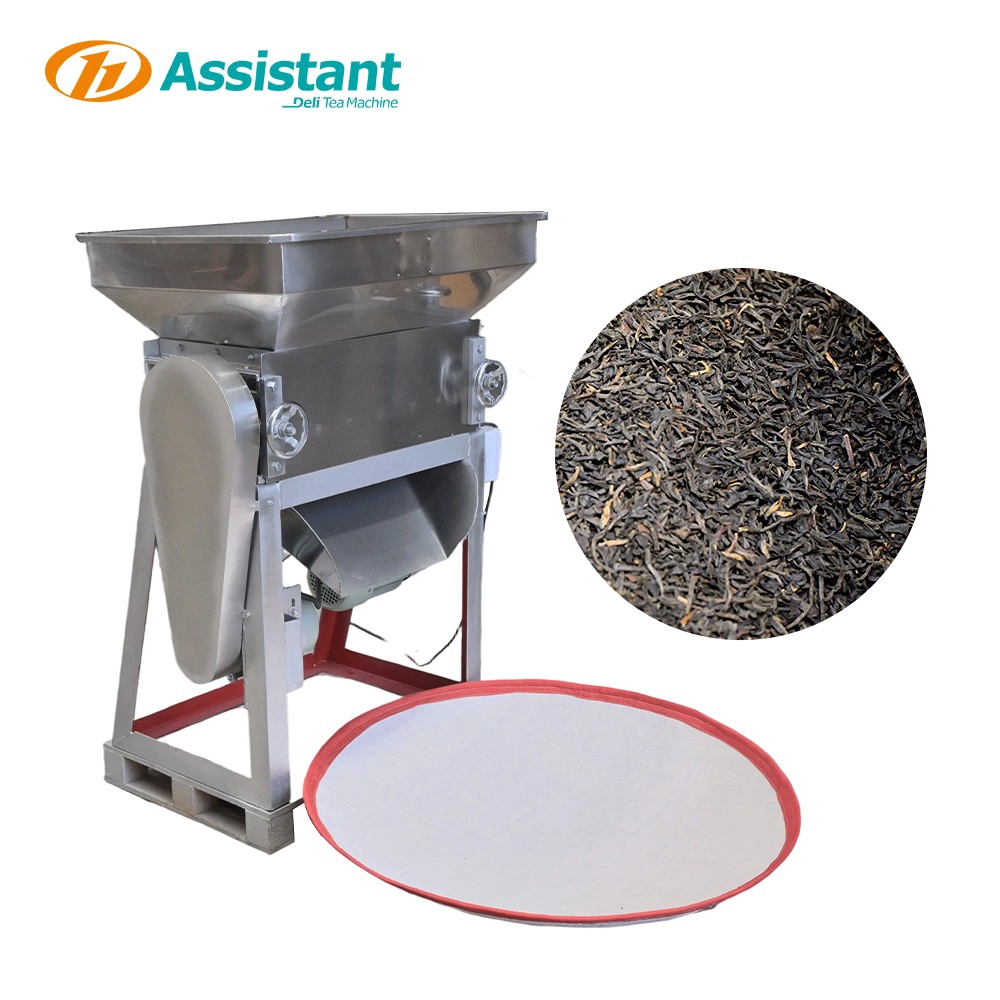

.jpg.webp "China Stainless Steel Toothed Dried Black Tea Leaf Crusher Shredder Machine DL-6CCQ-263QB manufacturer")

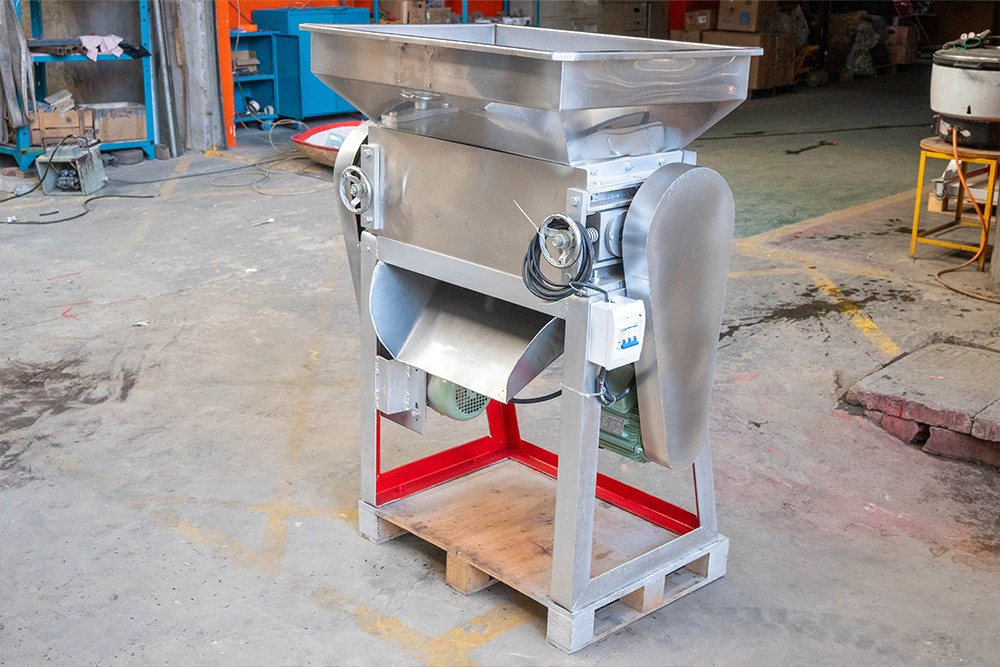

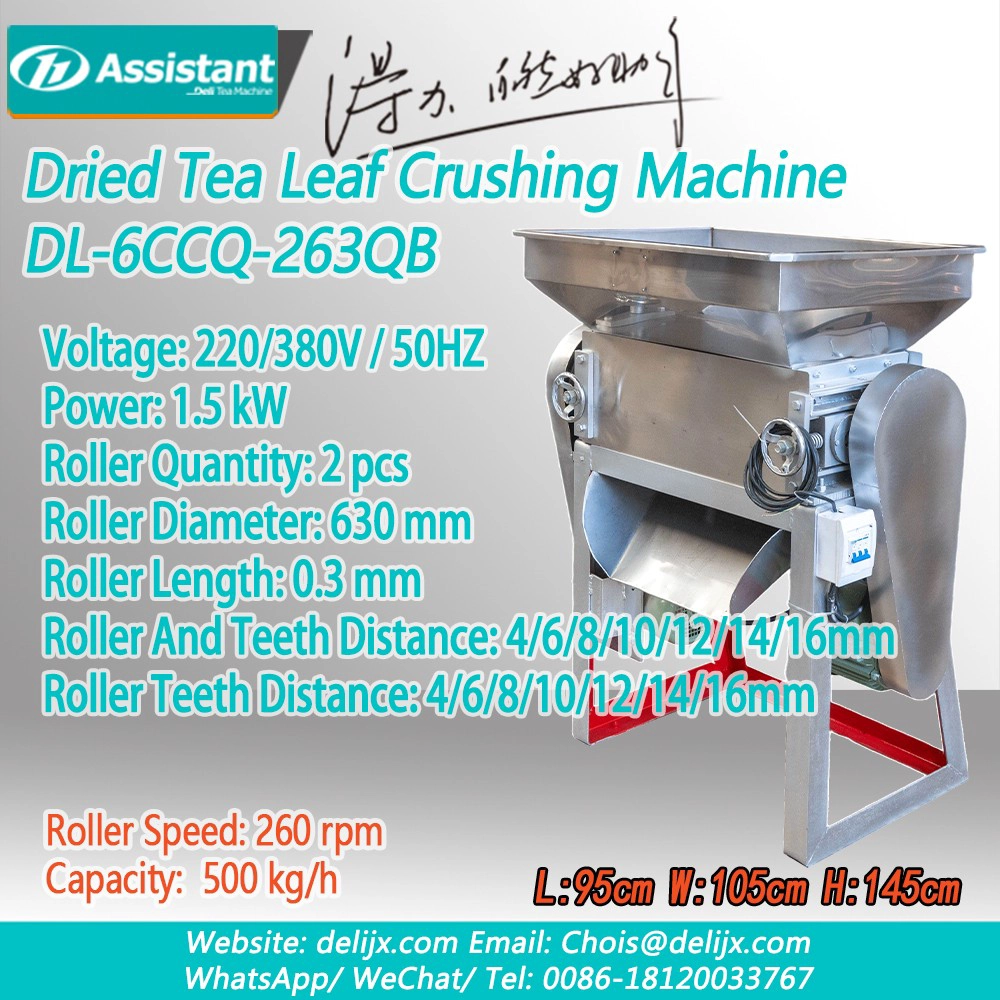

DL-6CCQ-263QB mainly used for shredding/crushing/grinding finished tea, make tea into fragment, then it is used to package tea bags for sale, high efficiency, tea fragment size adjustable, It's a good assistant for making tea bags.
| ***DESCRIPTION*** |
Tea fragments shredder machine is mainly used in the subsequent processing of tea.Shred the finished tea into small pieces of about 1-3 mm which is convenient for packaging into tea bags for sale.
Not only can shredding tea leaves, but also shredding plant leaves such as herbs, mint, lotus leaves, etc. Using high-strength alloy steel as a grinding roller, and the size of tea powder can be adjusted, which is the ideal supporting equipment for making teabags.

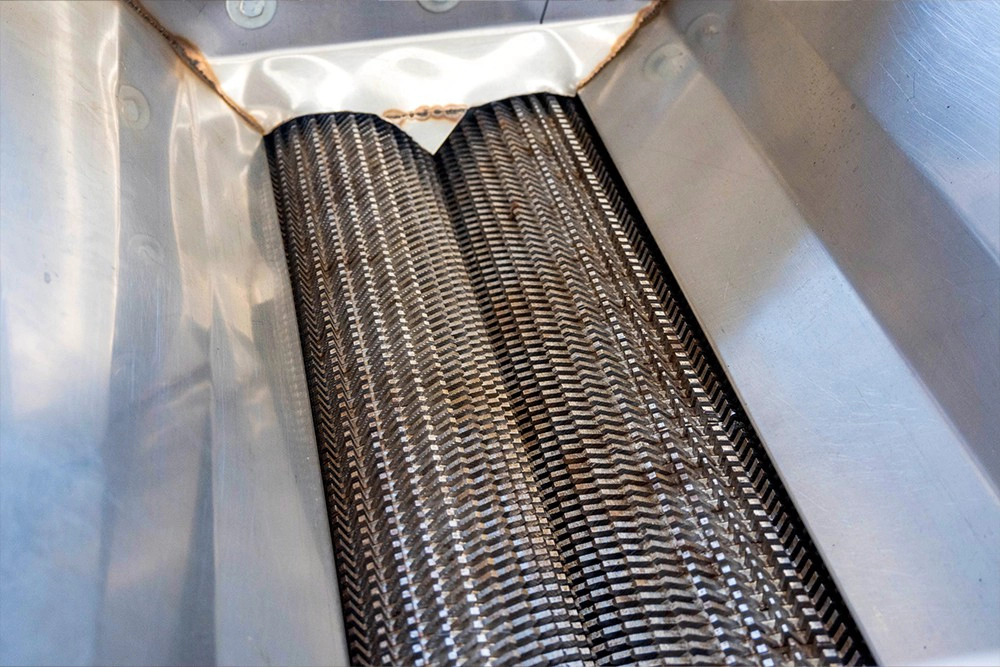

The spacing between each tooth has 4mm, 6mm, 8mm, 10mm and 12mm, you can choose different teeth roller according to your needs.
| ***ADVANTAGE*** |
1. Use high hardness alloy steel as grinding roll, which is more durable.

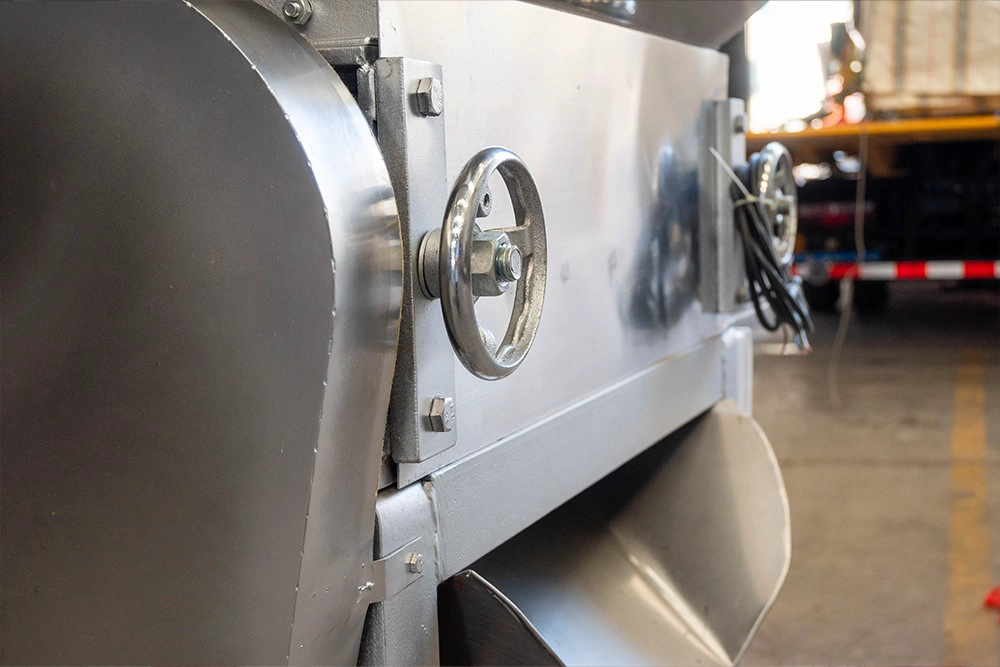

2. Adjustable size and fineness of tea fragments.
3. Reasonable layout, more uniform pulverization of tea.
4. It can not only crush tea, but also process dry mint, dried flowers and other materials.
| ***APPLICATION*** |
Tea Shredder Machine is suitable for processing all kind tea,and packing the powder and tea fragment into tea bags, the following is the Shredding Size required for the above tea production.
 |
|
 |
 |
 |
 |
| Type Of Tea | Shredding Size |
| Black Tea |
4/6/8/10/12/14/16mm
|
| Green Tea | |
| White Tea | |
| Oolong Tea | |
| Herbal Tea |
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.
| ***SPECIFICATION*** |
Tea Crushing Shredding Machine specification list:
| Model | DL-6CCQ-263QB |
| Dimension |
950×1050×1450 mm
|
|
Voltage
|
220/380V / 50HZ
|
|
Power
|
1.5 kW
|
|
Roller Quantity
|
2 pcs
|
|
Roller Diameter
|
96 mm
|
|
Roller Length
|
630 mm
|
|
Roller And Teeth Distance
|
0.3 mm
|
|
Roller Teeth Distance
|
4/6/8/10/12/14/16mm
|
|
Roller Speed
|
260 rpm
|
|
Capacity
|
500 kg/h
|
If you have special need, it can be customized according to the needs of customers.
