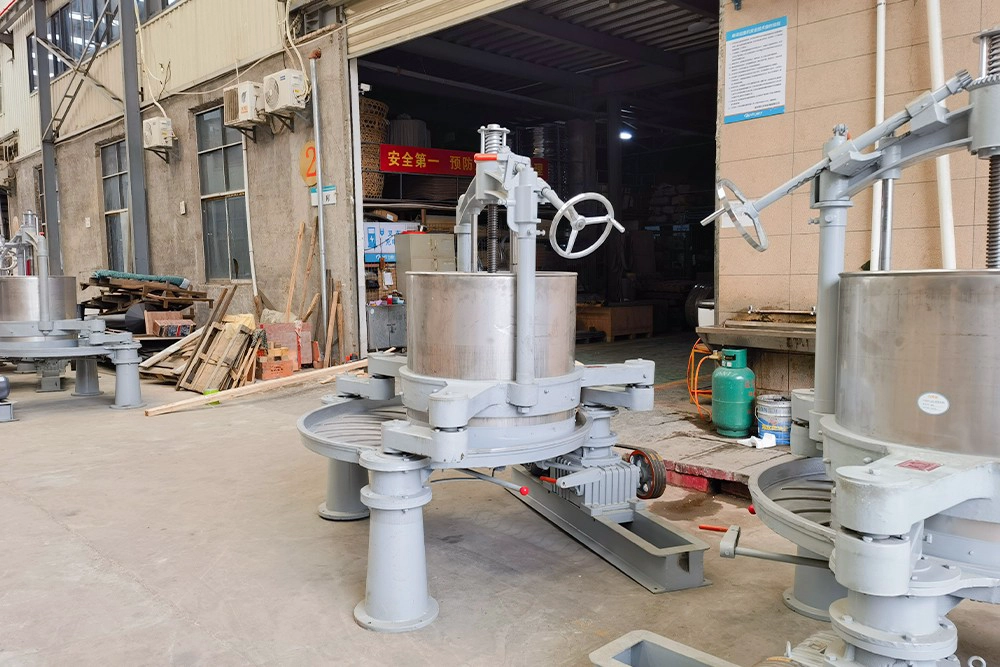

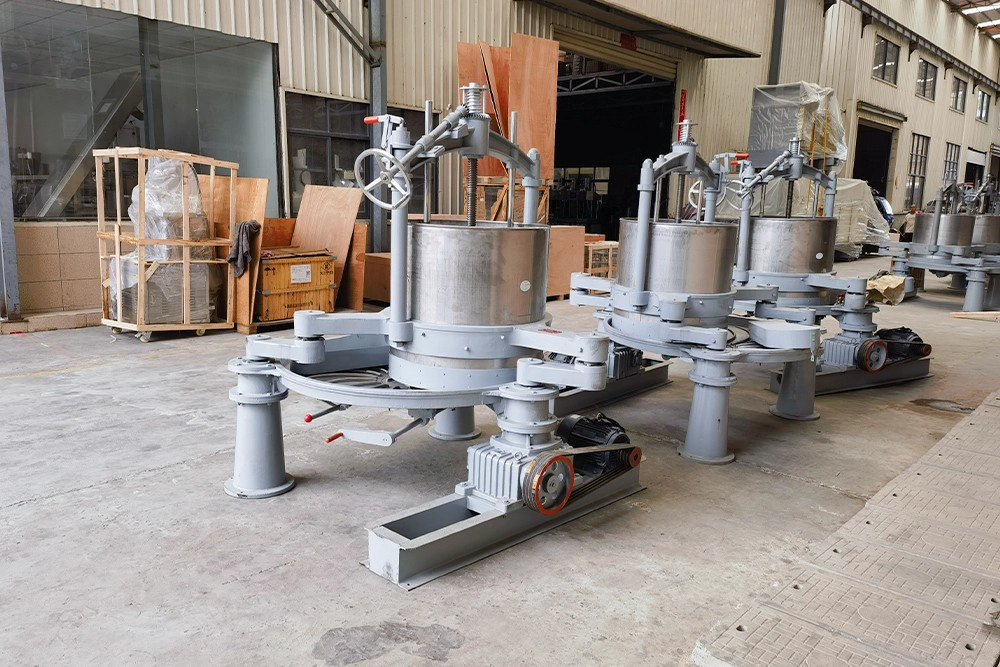

Model DL - 6CRT - 85 is an industrial electric tea rolling machine, with dimensions 2000×1800×2250mm. It has a 1550mm rolling disc, 850mm×830mm drum (35rpm), 380V/50Hz voltage, 5.5kW power and a capacity of 200kg/h, suitable for large - scale tea processing.
| DESCRIPTION |
DL-6CRT-85 tea rolling machine has double action, mainly for tea twisting, drum diameter 85cm, capacity about 200 kg per batch.
The surface of the disk is in one run pressed from stainless steel plate to make the panel and the joists become an integral, which decreases the breaking ratio of tea and increases its striping ratio.

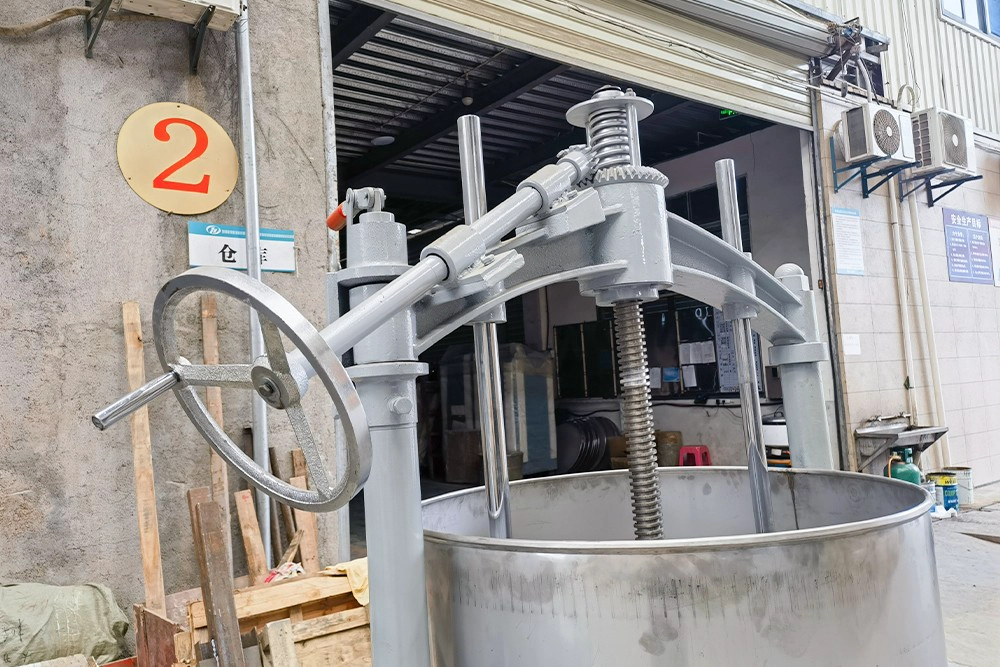

The kneading machine uses worm gears, and the kneading drum is driven through mechanical-connected parts. The centrifugal movement in the fixing disk built with joists makes the tea in the kneading drum suffer from the kneading action generated between the upper gland and the joists of the lower fixing disk. The kneading degree of the tea can be adjusted by regulating the pressure of the gland.
| ADVANTAGE |
1. Turbine worm gearbox design, deceleration is stable and durable.
2. The bottom discharge handle design, gently push the handle, the tea can fall easily.
3. The heightened design of the rolling barrel can prevent the tea leaves from falling.
4. The supporting part of the machine is made of cast iron, which is strong and durable.
5. The arc of the rolling bar has been improved for decades, and the optimal design has been obtained. The efficiency of tea leaves been the strip-type is increased by 30%.
| EXPLODED VIEW |
| ① | Transverse arm | ⑧ | Press spring |
| ② | Barrel cover | ⑨ | Support column |
| ③ | Stainless steel Drum | ⑩ | Handwheel |
| ④ | Crank | ⑪ | Support frame |
| ⑤ | Transmission case | ⑫ | Rolling disc |
| ⑥ | Transmission belt | ⑬ | Tea outlet |
| ⑦ | Drive motor | ⑭ | Support leg |
| APPLICATION |
Tea Twisting Machine is suitable for processing black / green / oolong / white / dark / herbal tea, the following is the working time required for the above tea production.
| Type Of Tea | Working Time |
| Black Tea | 30-90 minutes |
| Green Tea | 4-6 minutes |
| Oolong Tea | 4-6 minutes |
| Herbal Tea | 4-6 minutes |
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.

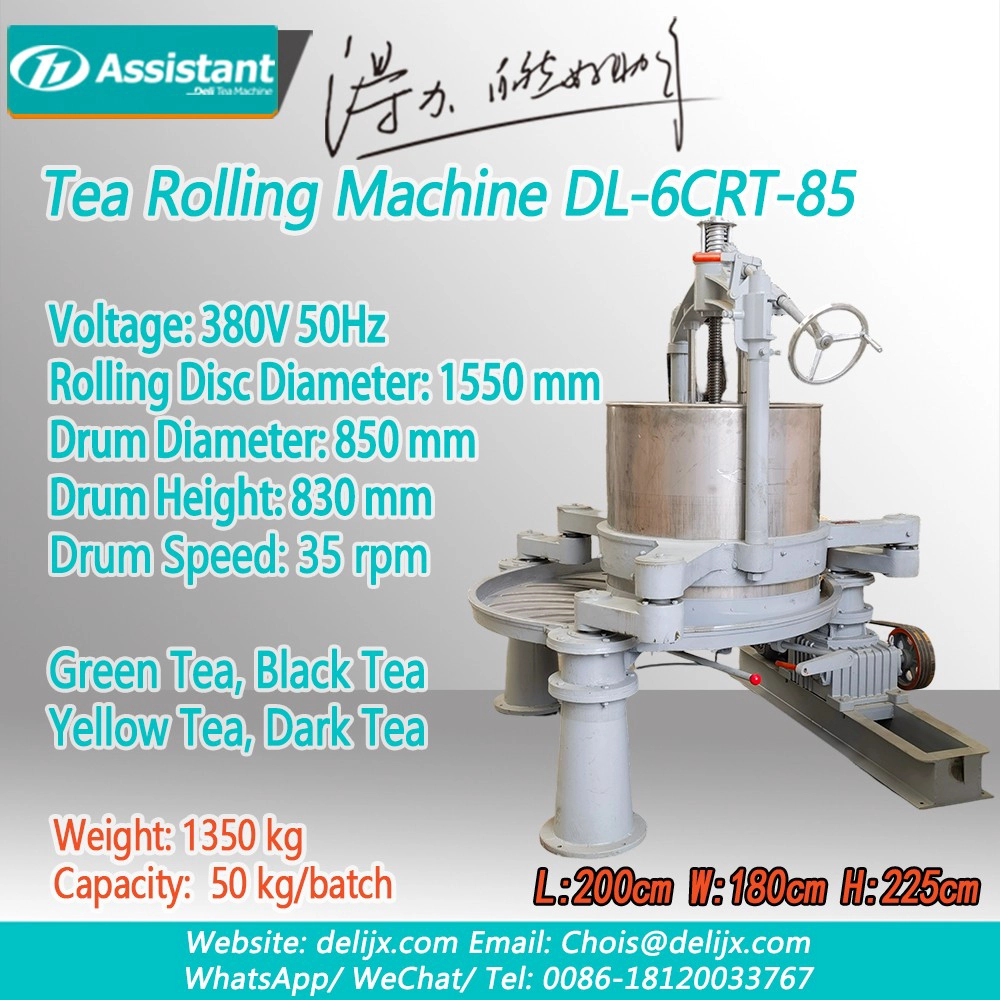

| SPECIFICATION |
Tea Twisting Machine specification list:
| Model | DL-6CRT-85 | |
| Dimension |
2000×1800×2250 mm
|
|
| Input voltage | 380V / 50Hz | |
| Tea disc diameter | 1550 mm | |
| Barrel diameter | 850 mm | |
| Barrel height | 830 mm | |
| Matching motor | Power | 5.5 kW |
| Speed | 1430 RPM | |
| Rated voltage | 380 V | |
| Barrel speed | 35 RPM | |
| Weight | 1075 Kg | |
| Max capacity per batch | 200 kg/batch | |
| Capacity for green tea | 120-1200 kg/h | |
| Capacity for black tea | 120-240 kg/h | |
Specification of all of Tea Rolling Table Machine.
| Model | Barrel Diameter | Barrel Height | Capacity |
| 6CRT-25 | 25 cm | 18 cm | 3 kg/batch |
| 6CRT-30 | 30 cm | 21 cm | 5 kg/batch |
| 6CRT-35 | 35 cm | 26 cm | 8 kg/batch |
| 6CRT-40 | 40 cm | 25 cm | 11 kg/batch |
| 6CRT-45 | 45 cm | 28 cm | 15 kg/batch |
| 6CRT-50 | 50 cm | 28 cm | 20 kg/batch |
| 6CRT-55 | 55 cm | 40 cm | 35 kg/batch |
| 6CRT-65 | 65 cm | 48 cm | 60 kg/batch |
| 6CRT-75 | 75 cm | 58 cm | 100 kg/batch |
| 6CRT-85 | 85 cm | 83 cm | 200 kg/batch |
If you have special need, it can be customized according to the needs of customers.
| DETAILS |
The distance between the rolling barrel and the rolling disc of each machine is different to ensure that each machine can make the best quality tea.
The supporting part of the machine is made of cast iron, which is strong and durable.
The double arms adopt a double-arm open cover structure, which has a strong bearing capacity and stable operation.
The unique design of rolling disc and rolling bar inclination angle, the speed is increased by 30% compared with other companies.

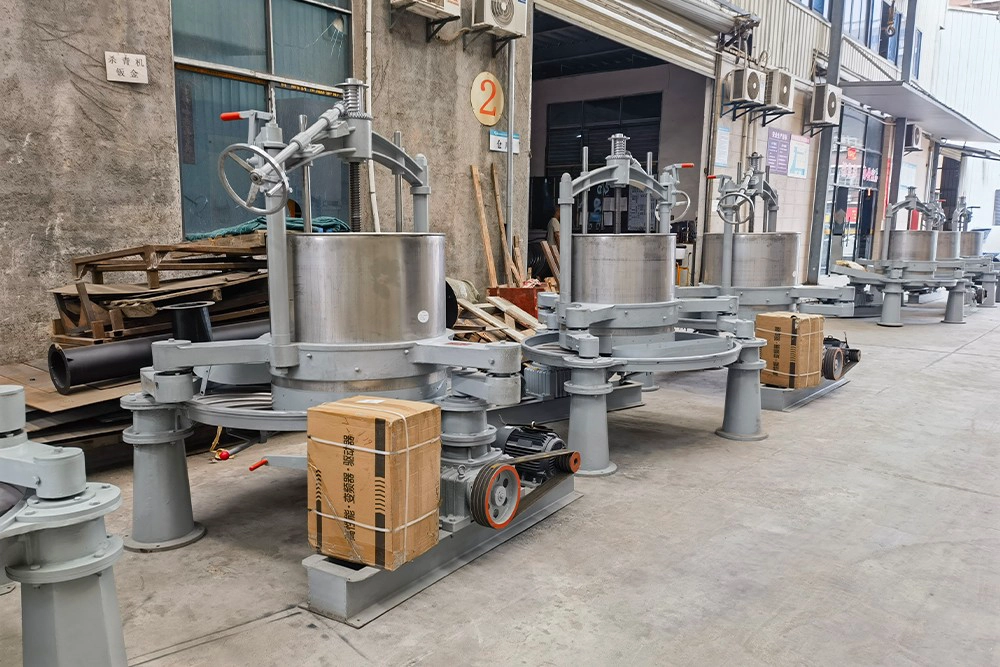

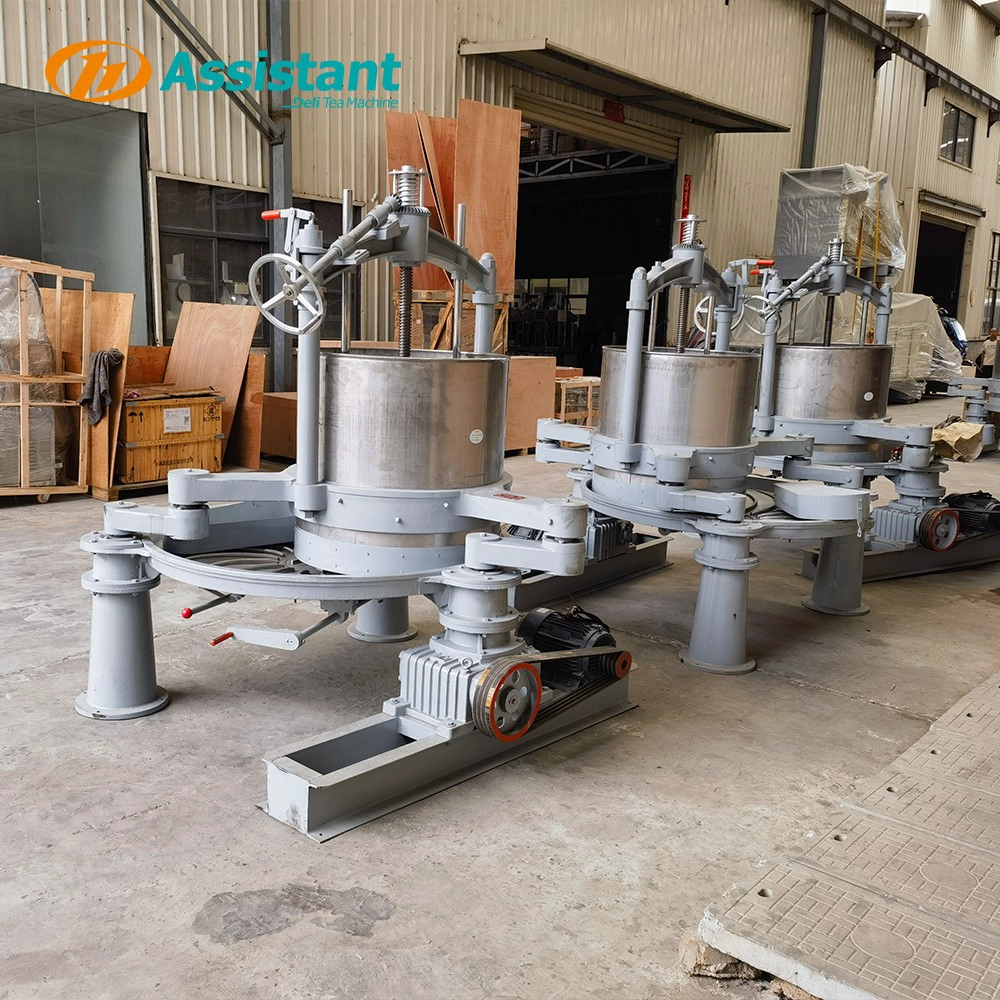

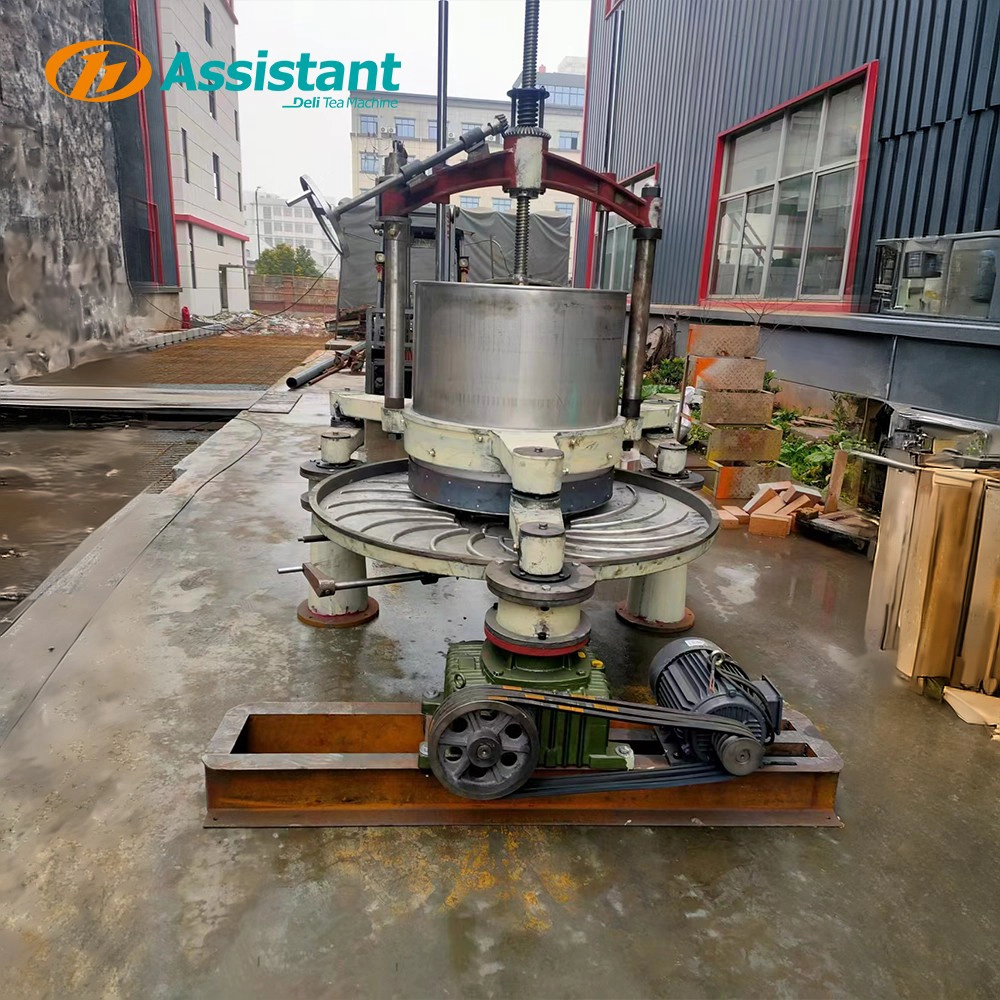

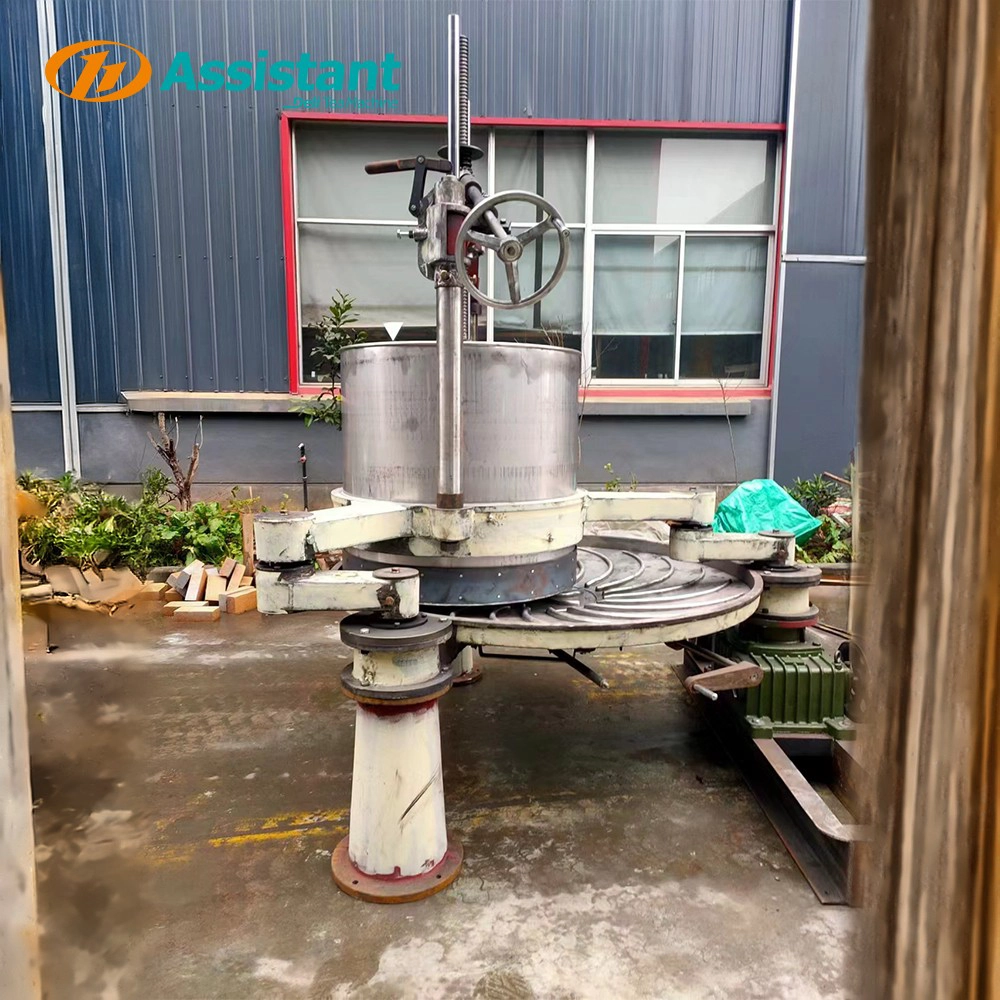

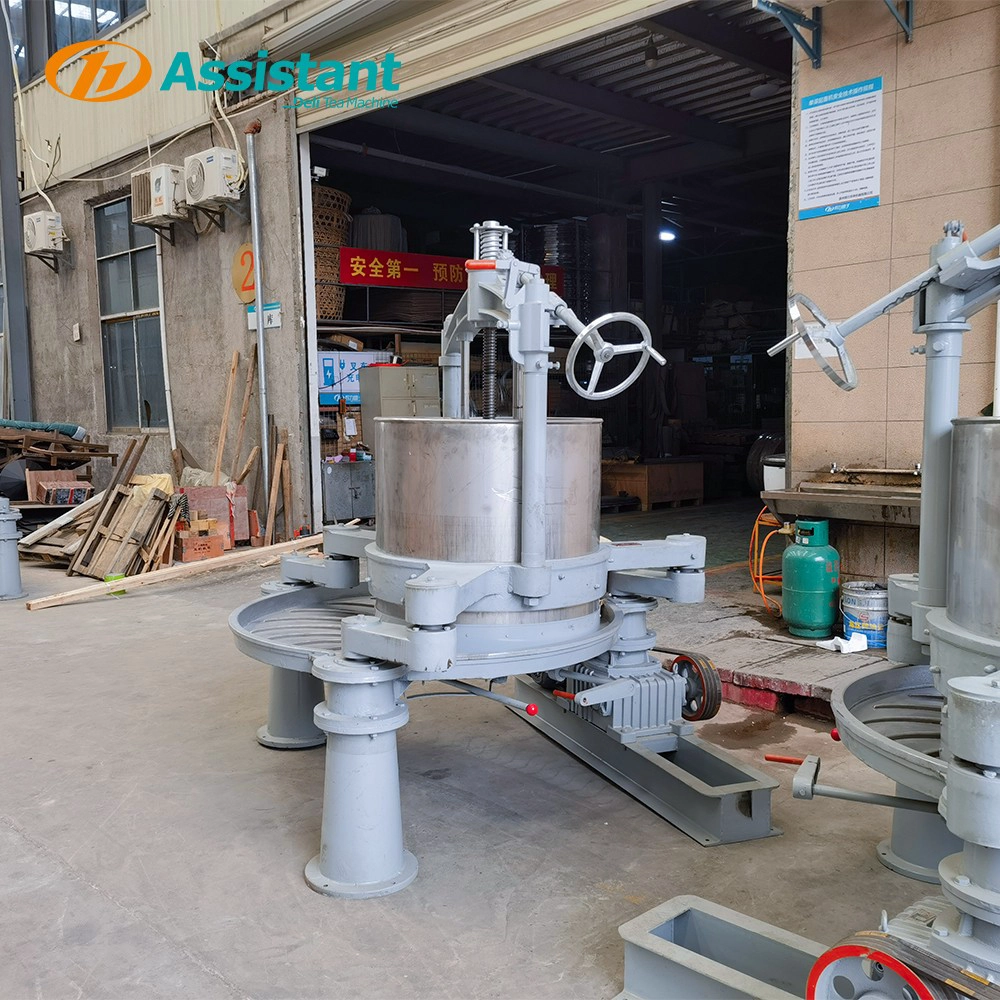

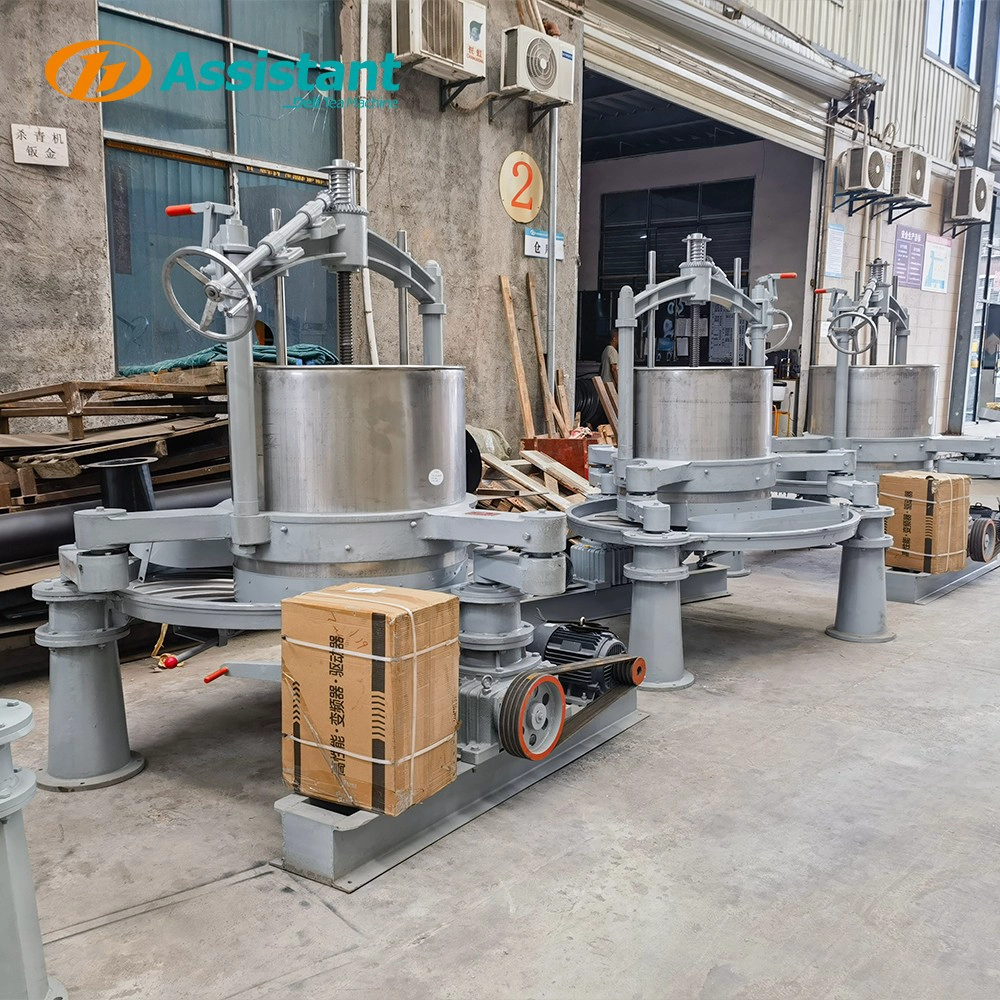

| PHOTOS |
