Tea rolling machine can use for most of tea such as black tea, green tea, and oolong tea, for green tea ( non-fermented ) is mainly used for shaping the strip type, for black tea ( fermented tea ) is mainly used to destroy the cells of fresh tea leaves, so that the juice in tea can flow out and facilitate subsequent fermentation.
Through the external force of the tea roller machine, the tea leaf's juice overflows, the tea cells are damaged, fresh tea leaf is twisted and curled into a strip shape, the juice in the fresh tea leaves is squeezed out. When brewing, the taste is stronger, the color of the tea soup is brighter and the quality of the tea is better.

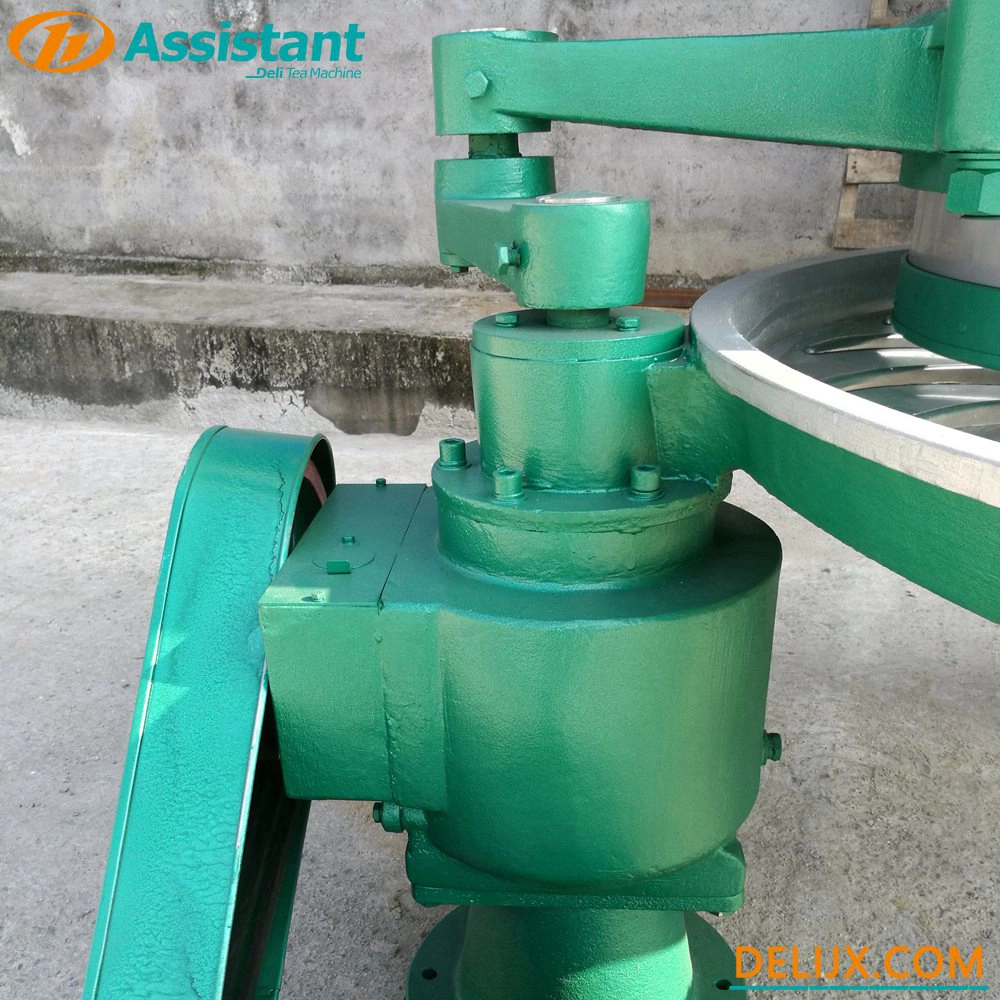

1. Turbine worm gearbox design, deceleration is stable and durable.

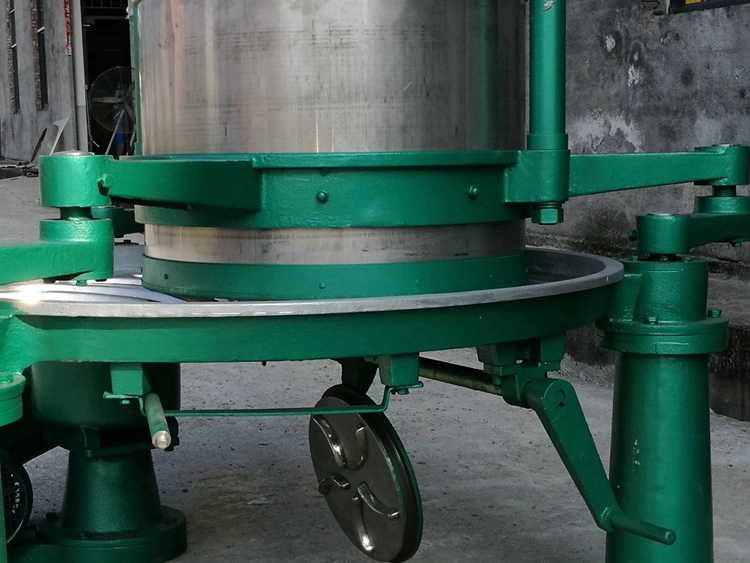

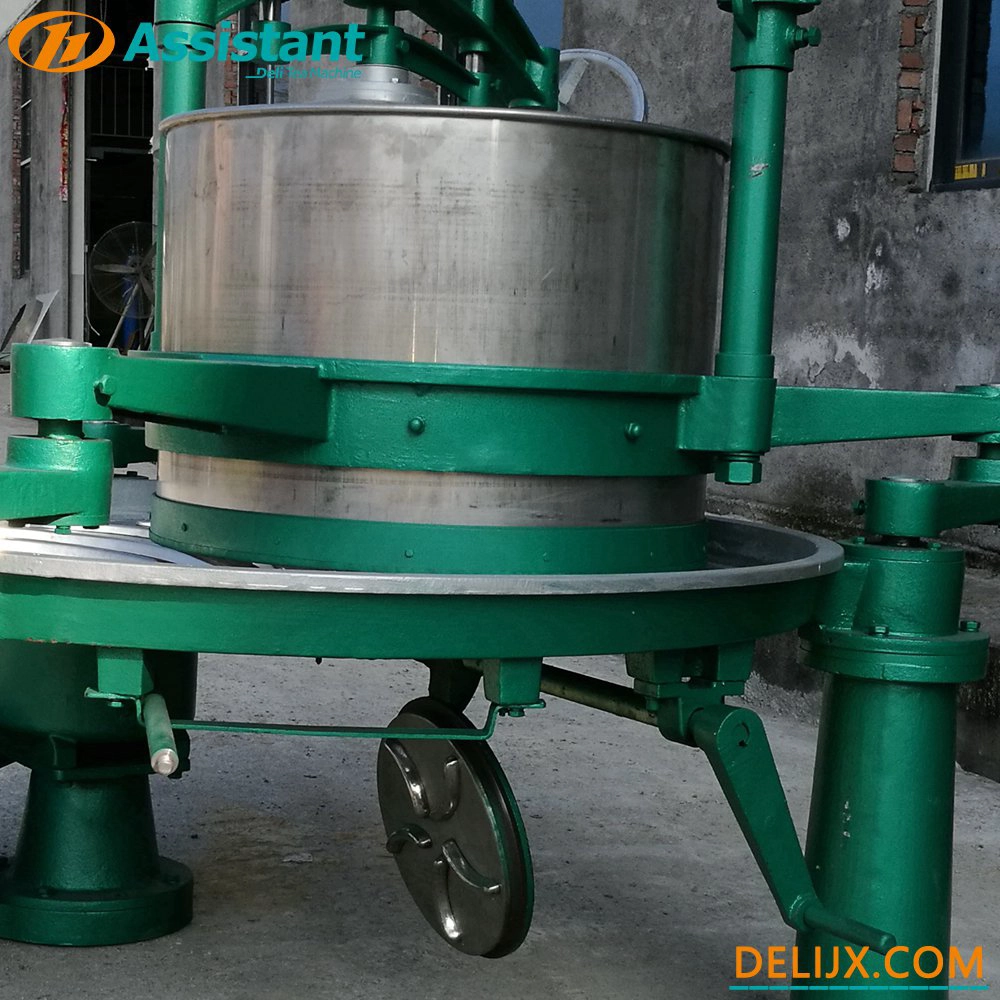

2. The bottom discharge handle design, gently push the handle, the tea can fall easily.

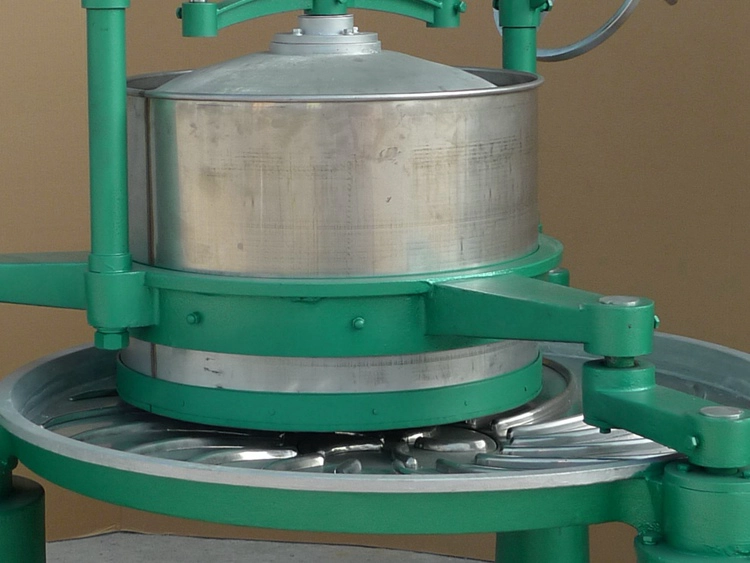

3. The heightened design of the rolling barrel can prevent the tea leaves from falling.
4. The supporting part of the machine is made of cast iron, which is strong and durable.
5. The arc of the rolling bar has been improved for decades, and the optimal design has been obtained. The efficiency of tea leaves been the strip-type is increased by 30%.

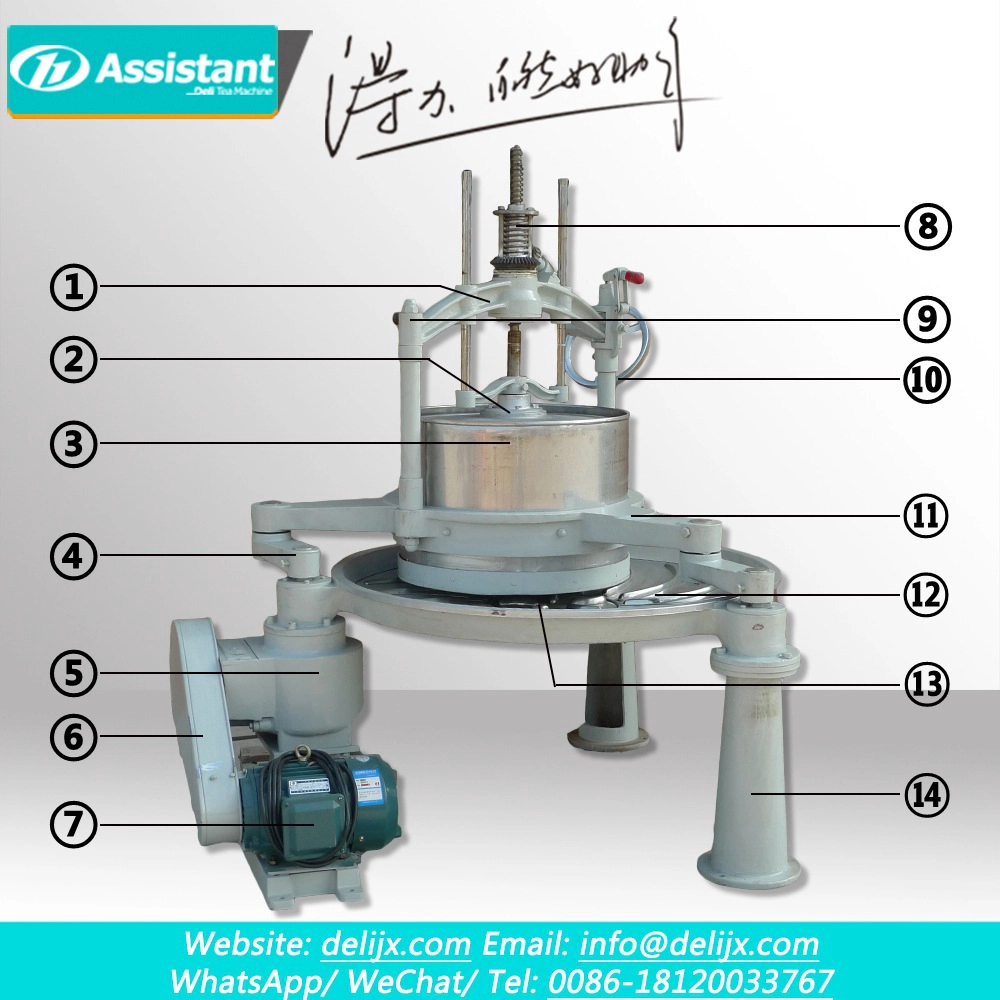

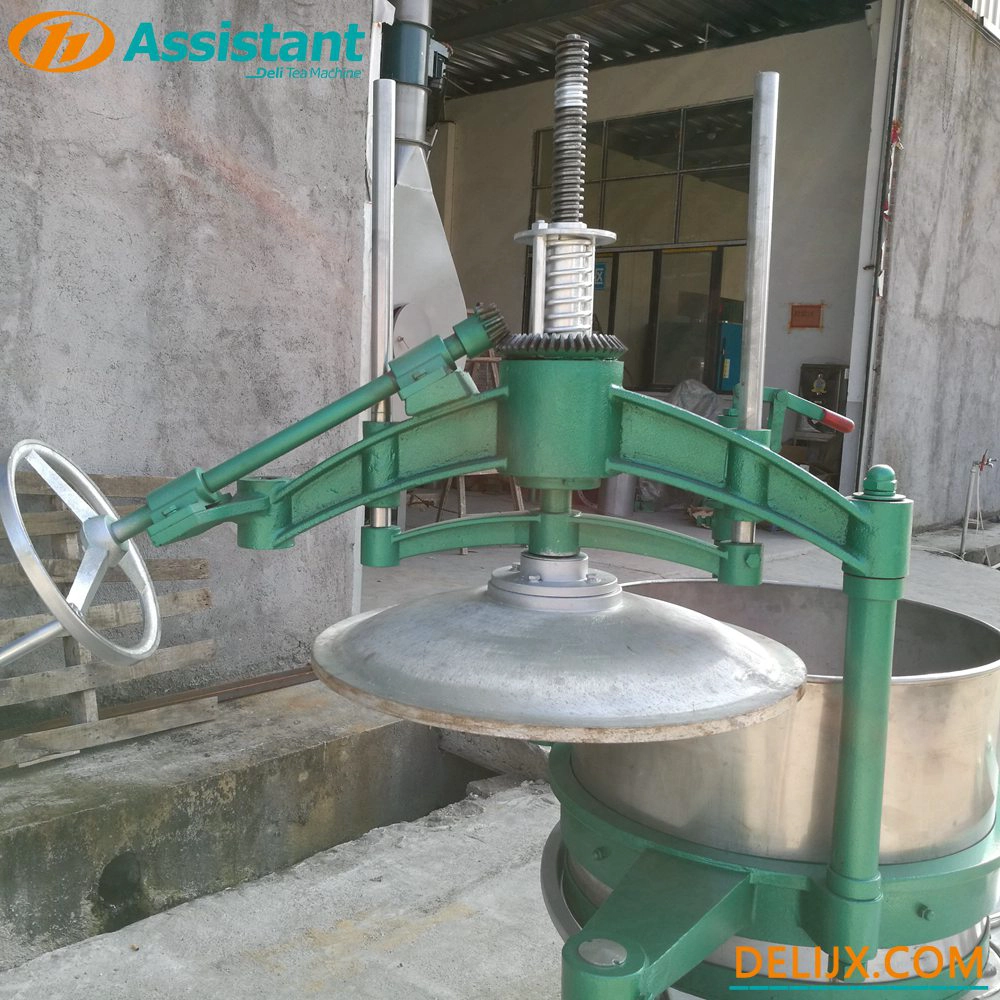

|①||Transverse arm||⑧||Press spring|
|②||Barrel cover||⑨||Support column|
|③||Stainless steel Drum||⑩||Handwheel|
|⑤||Transmission case||⑫||Rolling disc|
|⑥||Transmission belt||⑬||Tea outlet|
|⑦||Drive motor||⑭||Support leg|
Tea Rolling Table Machine is suitable for processing black / green / oolong / white / dark / herbal tea, the following is the working time required for the above tea production.
|Type Of Tea||Working Time|
|Black Tea||30-90 minutes|
|Green Tea||4-6 minutes|
|Oolong Tea||4-6 minutes|
|Herbal Tea||4-6 minutes|
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.
Tea Rolling Table Machine specification list:
|Input voltage||380V / 50Hz|
|Tea disc diameter||1210 mm|
|Barrel diameter||650 mm|
|Barrel height||480 mm|
|Matching motor||Power||3 kW|
|Rated voltage||380 V|
|Barrel speed||44 RPM|
|Max capacity per batch||60 kg/batch|
|Capacity for green tea||60-600 kg/h|
|Capacity for black tea||60-120 kg/h|
Specification of all of Tea Rolling Table Machine.
|Model||Barrel Diameter||Barrel Height||Capacity|
|6CRT-25||25 cm||18 cm||3 kg/batch|
|6CRT-30||30 cm||21 cm||5 kg/batch|
|6CRT-35||35 cm||26 cm||8 kg/batch|
|6CRT-40||40 cm||25 cm||11 kg/batch|
|6CRT-45||45 cm||28 cm||15 kg/batch|
|6CRT-50||50 cm||28 cm||20 kg/batch|
|6CRT-55||55 cm||40 cm||35 kg/batch|
|6CRT-65||65 cm||48 cm||60 kg/batch|
If you have special need, it can be customized according to the needs of customers.
The distance between the rolling barrel and the rolling disc of each machine is different to ensure that each machine can make the best quality tea.
The supporting part of the machine is made of cast iron, which is strong and durable.

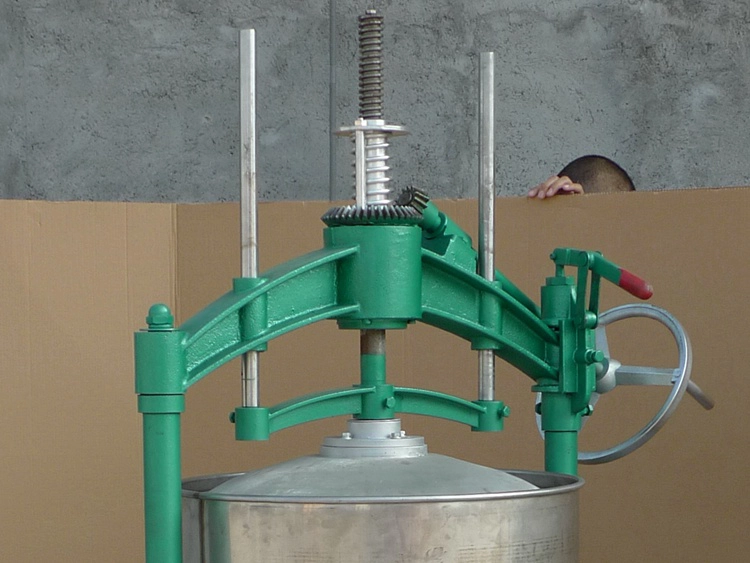

The double arms adopt a double-arm open cover structure, which has a strong bearing capacity and stable operation.

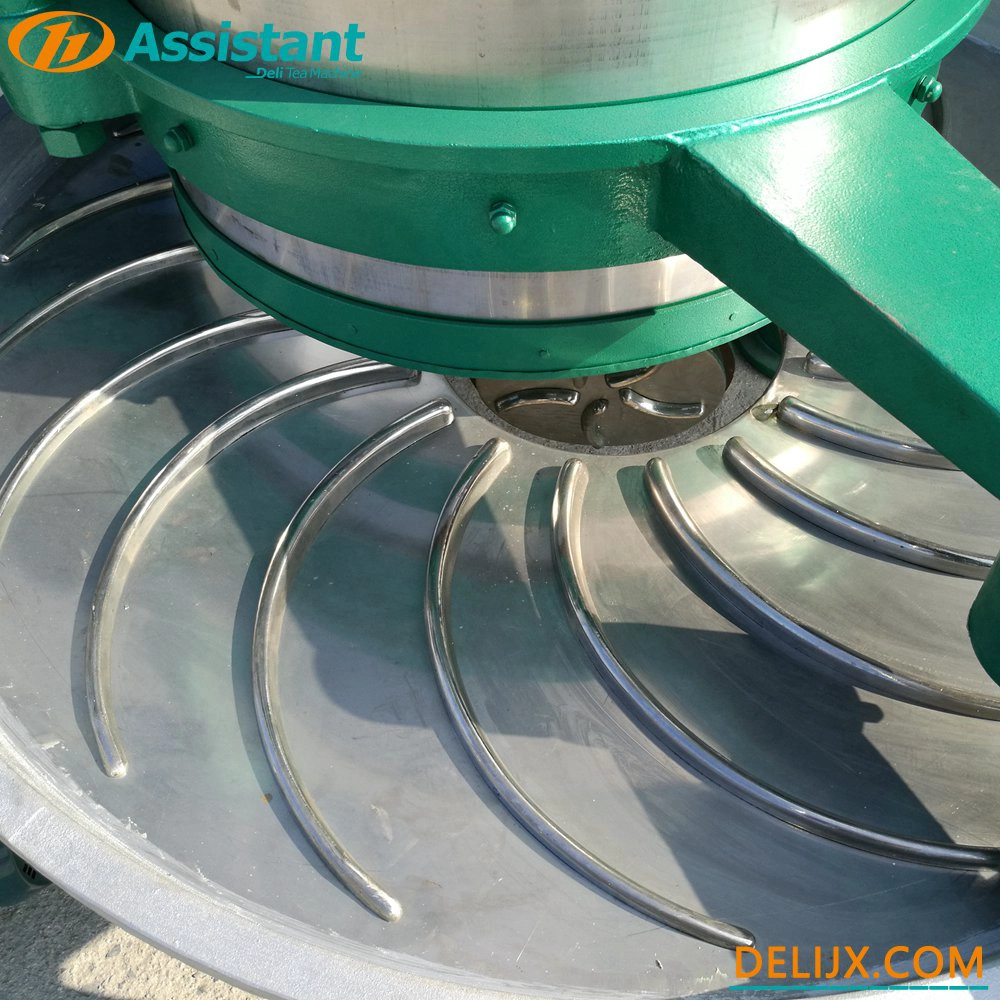

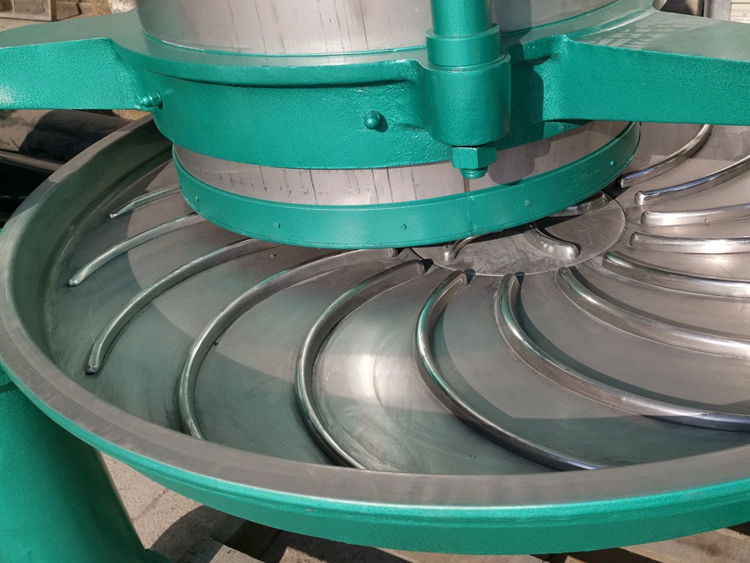

The unique design of rolling disc and rolling bar inclination angle, the speed is increased by 30% compared with other companies.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
DL-6CRT-25 can process almost all kind tea, the part contacted with tea is made of stainless steel, drum diameter 25cm, height 18cm, capacity about 3 kg per batch.
DL-6CRT-30 can process almost all kind tea, the part contacted with tea is made of stainless steel, drum diameter 30cm, height 21cm, capacity about 5 kg per batch.
DL-6CRT-35 can process almost all kind tea, the part contacted with tea is made of stainless steel, drum diameter 35cm, height 26cm, capacity about 8 kg per batch.
DL-6CRT-40 can process almost all kind tea, the part contacted with tea is made of stainless steel, drum diameter 40cm, height 25cm, capacity about 11 kg per batch.
DL-6CRT-45 can process almost all kind tea, the part contacted with tea is made of stainless steel, drum diameter 45cm, height 28cm, capacity about 16 kg per batch.
DL-6CRT-50 can process almost all kind tea, the part contacted with tea is made of stainless steel, drum diameter 50cm, height 30cm, capacity about 20 kg per batch.
DL-6CRT-65 can process almost all kind tea, the part contacted with tea is made of stainless steel, drum diameter 65cm, height 48cm, capacity about 60 kg per batch.
DL-6CRT-55 can process almost all kind tea, the part contacted with tea is made of stainless steel, drum diameter 55cm, height 40cm, capacity about 35 kg per batch.
