1.This Rotating Tea Drying Machine has 16 sieve trays, the diameter of each tray is 110 cm, total drying area of 14.6 m². It can process 20-25 kg of wet tea per batch.

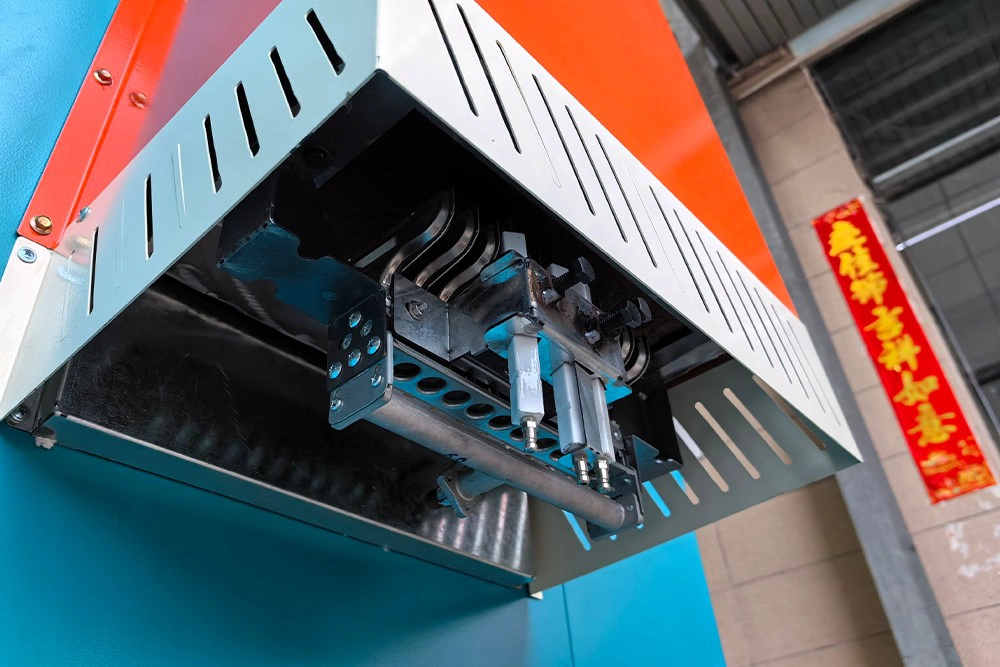

2.Adopt turbine air-intake structure, the air volume is large enough to take away more humid and hot air, and the tea drying speed is increased by 30%, with durable electric heating wire with a diameter of 1mm and a high-temperature resistant polymer insulation cake, the service life of the heating wire is increased by 40% compared with other companies.
3.A new type of environmentally friendly high-temperature heat-resistant insulation material, with a thickness of 3 cm, and completely covering the machine to ensure that no heat is wasted and 30% energy saving. The door is lined with high-temperature resistant elastic rubber strips, which can seal the door of the machine to prevent hot air from escaping.

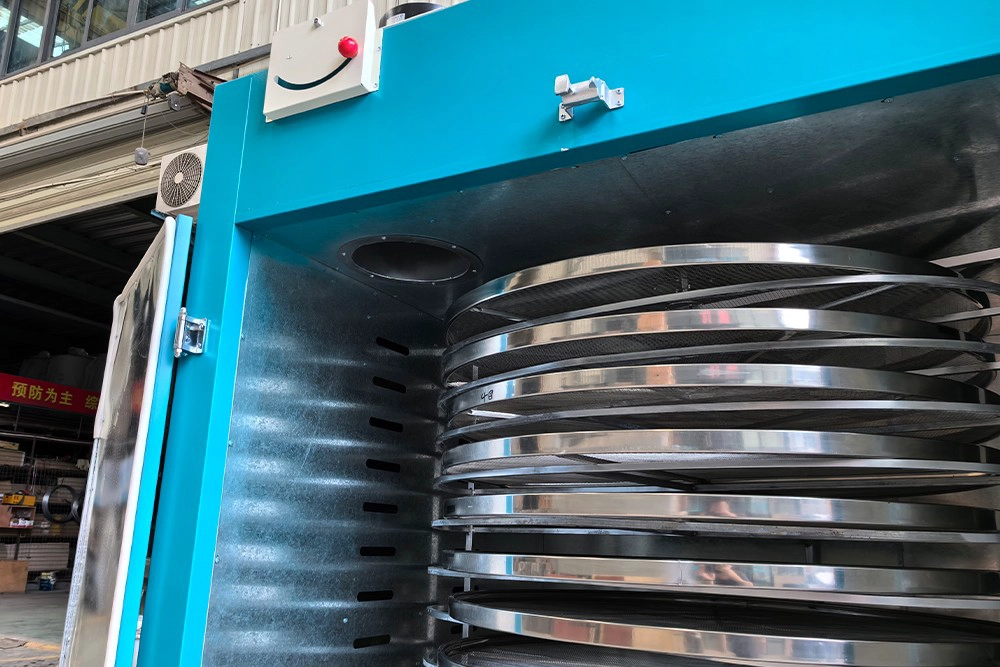

1. Rotary drying design, the tea leaves are heated evenly and drying more quickly.
2. The use of stainless steel sieve trays will not produce harmful substances, ensuring the cleanliness of tea production.
3. Using high-strength steel hinges and door handles, the service life of the machine is increased by 40% compared with other companies.
4. The patented air duct design allows the bottom of each sieve tray to enter the air, which quickly removes the moisture in the tea and improves the drying efficiency.
Small Tea Drying Machine is suitable for processing black / green / oolong / white / dark / herbal tea, the following is the working time required for the above tea production.
| Type Of Tea |
Temperature |
Working Time |
| Black Tea |
80-120℃ |
20-60 Minutes |
| Green Tea |
80-120℃ |
20-60 Minutes |
| White Tea |
80-120℃ |
20-60 Minutes |
| Oolong Tea |
80-120℃ |
20-60 Minutes |
| Herbal Tea |
80-120℃ |
20-60 Minutes |
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.
Tea Dryer Machine specification list:
| Model |
DL-6CHZ-QD14 |
| Dimension |
1693×1310×2290 mm
|
| Voltage |
220/380V 50Hz
|
| Heating element |
Gas + Electric (Hybird)
|
|
Electric Heating Power
|
24 KW |
|
Fan Motor Power
|
0.55 KW
|
|
Tray Rotate Motor Power
|
60 W
|
|
Tray Speed
|
6 rpm
|
|
Tray Shape
|
Round |
|
Tray Diameter
|
108-110cm
|
|
Tray Quantity
|
16 Layers
|
|
Effective Drying Area
|
14.6 m²
|
| Capacity per batch |
42-56 kg/batch
|
Specification of all of Orthodox Tea Dryer Machine.
| Model |
DL-6CHZ-QD14
|
DL-6CHZ-QD14B
|
DL-6CHZ-QD14QB
|
|
Tray Materials
|
Stainless Steel
|
Stainless Steel
|
Stainless Steel |
|
Inner Board Materials
|
Galvanized Steel
|
Stainless Steel |
Stainless Steel |
|
Outer Board Materials
|
Painted Steel Board
|
Painted Steel Board
|
Stainless Steel |
If you have special need, it can be customized according to the needs of customers.
