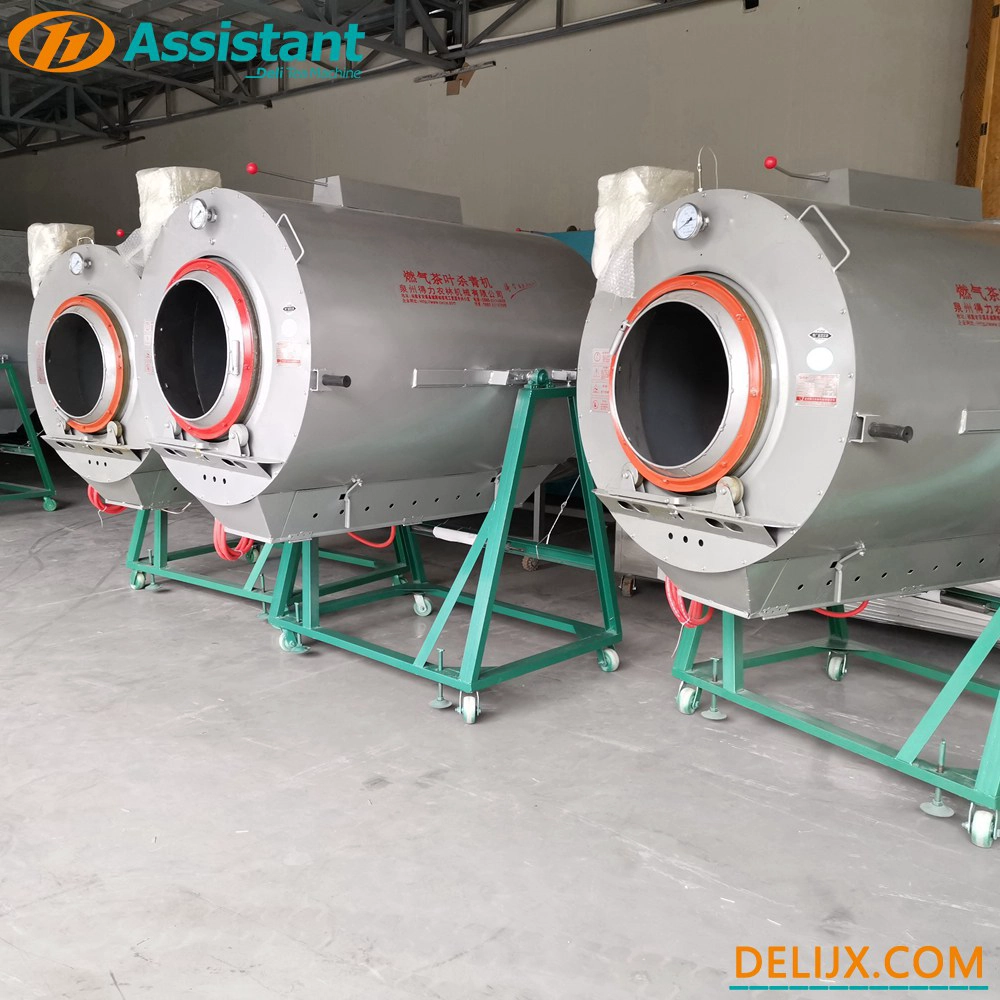

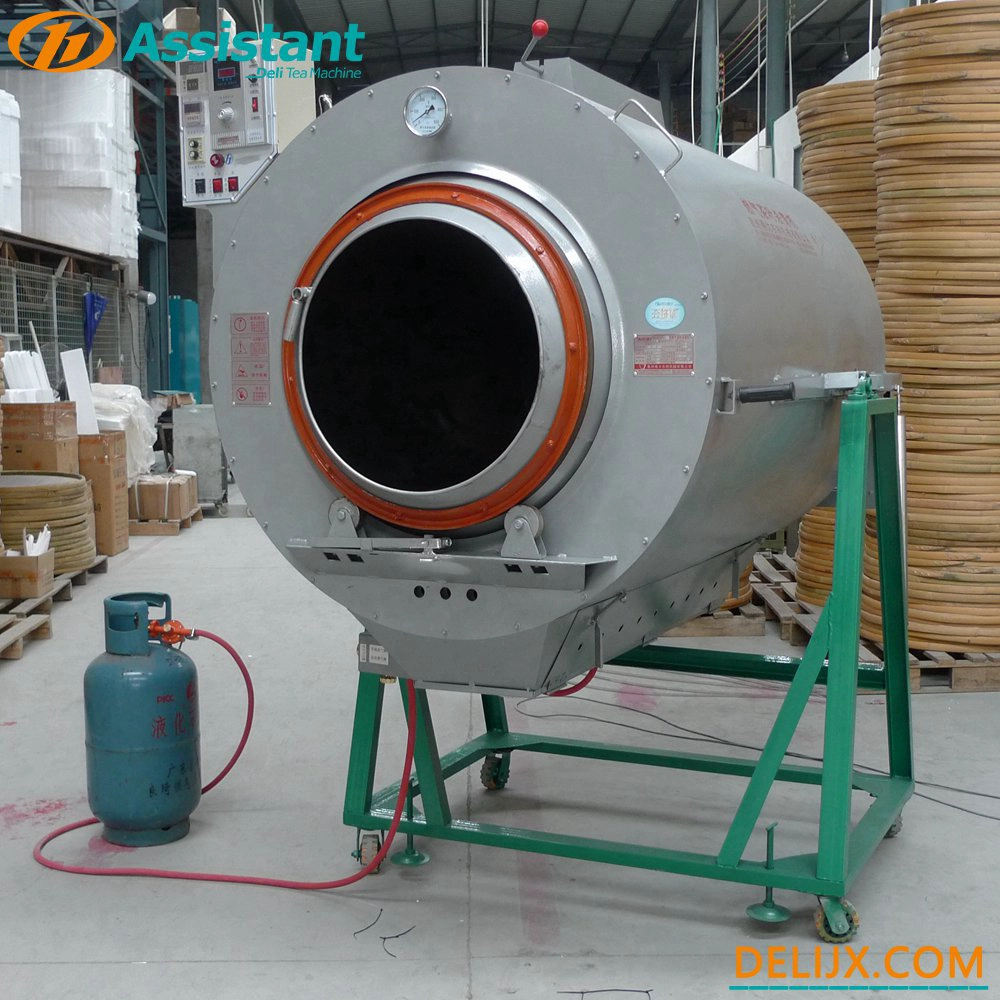

100cm Diameter LPG/LNG Heating Green Tea Roaster Machine DL-6CST-100
DL-6CST-100 mainly used for Green/Oolong/Yellow tea processing, inside drum diameter 90cm, length 125cm, use gas heating, speed and temperature adjustable. Capacity about 150 kg per hour.

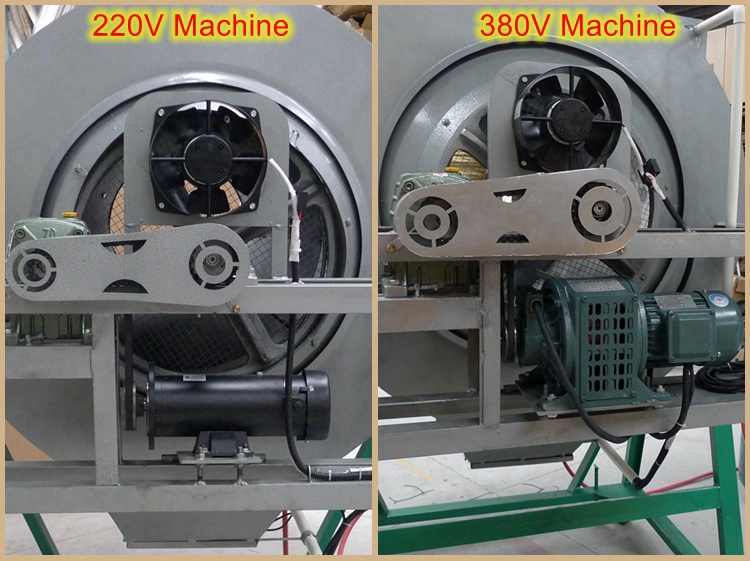

The diameter of this Tea Roaster Machine is 100cm, and the length of the inner straight section is 1250mm. Using 220V/380 voltage, it can process 15 kg of fresh leaves per batch.
Integrated microcomputer control system, the fixation time can be intelligently controlled, adopt dual temperature control design, ensure the precise control of temperature and ensure the quality of tea, when tea fixation, the speed of the machine can be adjusted, according to the tea of different producing areas, different speed can be adjusted.
Using 2.5mm ultra-thick steel plate, the temperature change is small and good heat preservation, the tea leaf will not be damaged, ( other factory only use 1.6mm steel plate ), preserve the design of the combustion head of the constant burning flame, reserve the constant burning flame after the ignition is successful, re-ignite from the constant burning flame, reduce the pressure of the ignition needle and the ignition coil, and improve the service life.

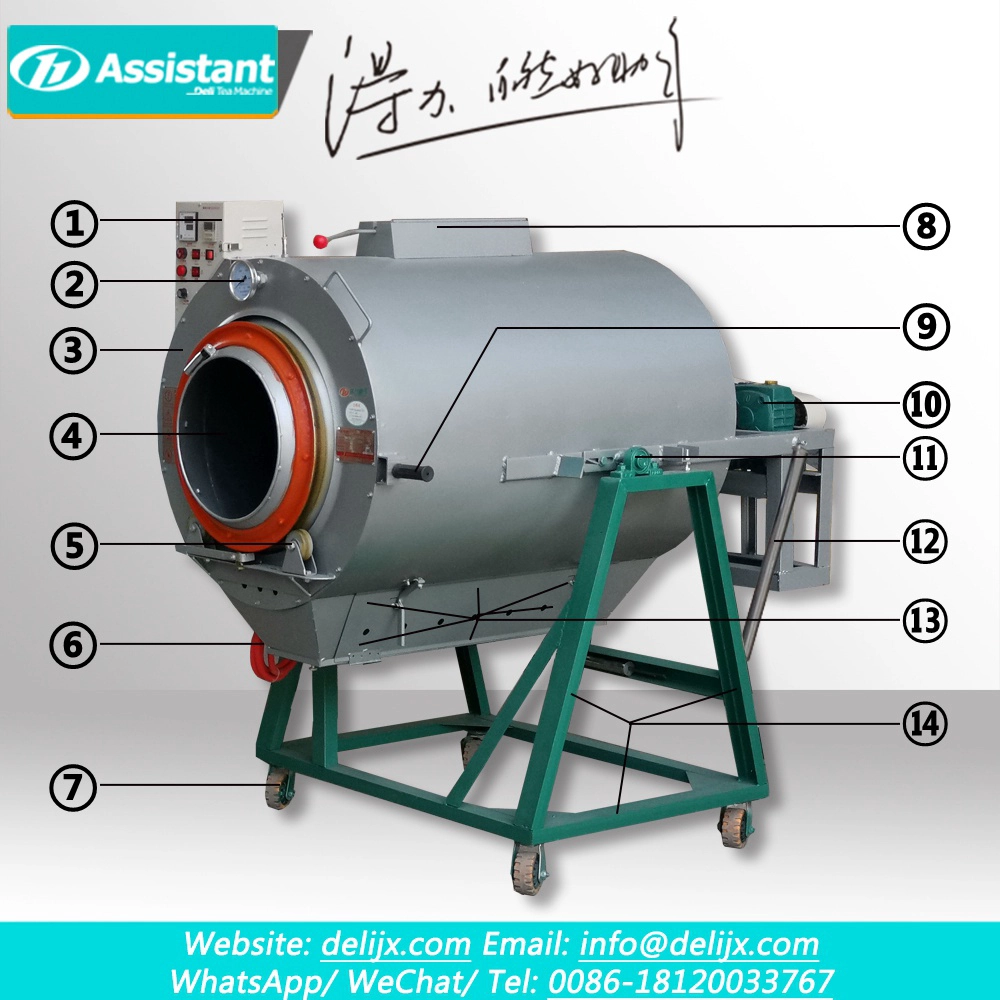

EXPLODED VIEW
①
Control Pannel
⑧
Heat Sink
②
Thermometer
⑨
Handle
③
Outer Barrel
⑩
Gearbox
④
Inner Barrel
⑪
Balance bolt
⑤
Support Wheel
⑫
Reduction cylinder
⑥
Ignition Switch
⑬
Combustion Zone
⑦
Bottom Wheel
⑭
Support Frame
ADVANTAGE
1. Alarm device, automatic alarm can be given at the end of the set time.
2. There is a handle on the drum, which can be manually roasting in case of a sudden power failure, so that the tea is not wasted.
3. Optimized deceleration system, the machine speed is stable, while ensuring that the torque is large enough and running smoothly.
4. The inner barrel uses a new type of environmentally friendly fireproof insulation material, thickness up to 20mm, greatly reduces heat loss and saves energy by 30%.
5. An exhaust fan is added to the rear, which can be turned on and off manually, which can quickly blow away the hot and humid air inside the machine to prevent the tea from being stuffy and affecting the taste.
APPLICATION
Green Tea Roaster is suitable for processing green / oolong / herbal tea, the following is the working time required for the above tea production.
Type Of Tea
Working Time
Green Tea
4-8 Minutes
Oolong Tea
4-8 Minutes
Herbal Tea
4-8 Minutes
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.
If you have special need, it can be customized according to the needs of customers.
DETAILS

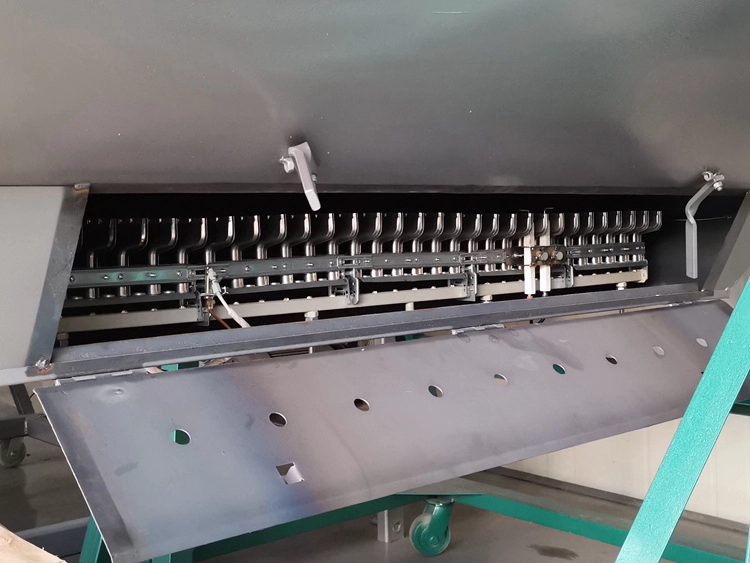

T-shaped combustion fire platoon covering the tea fixation barrel, burning area up to 100%.

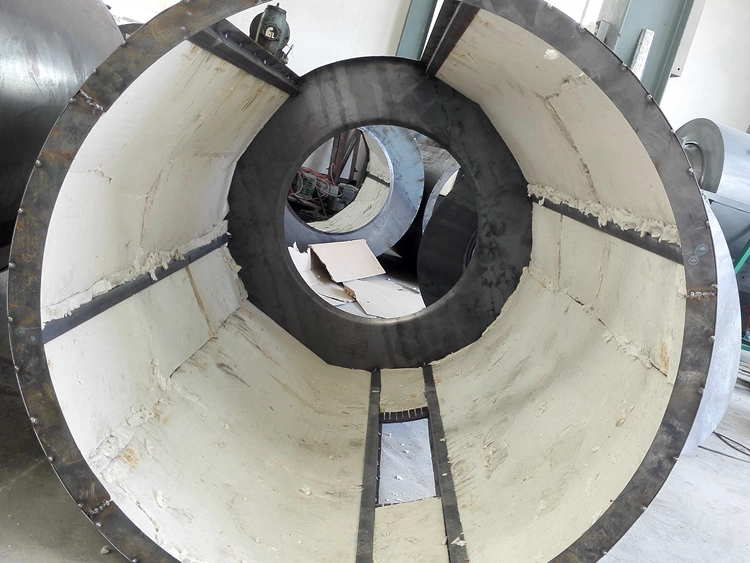

The inner barrel uses a new type of environmentally friendly fireproof insulation material, thickness up to 20mm, greatly reduces heat loss and saves energy by 30%.

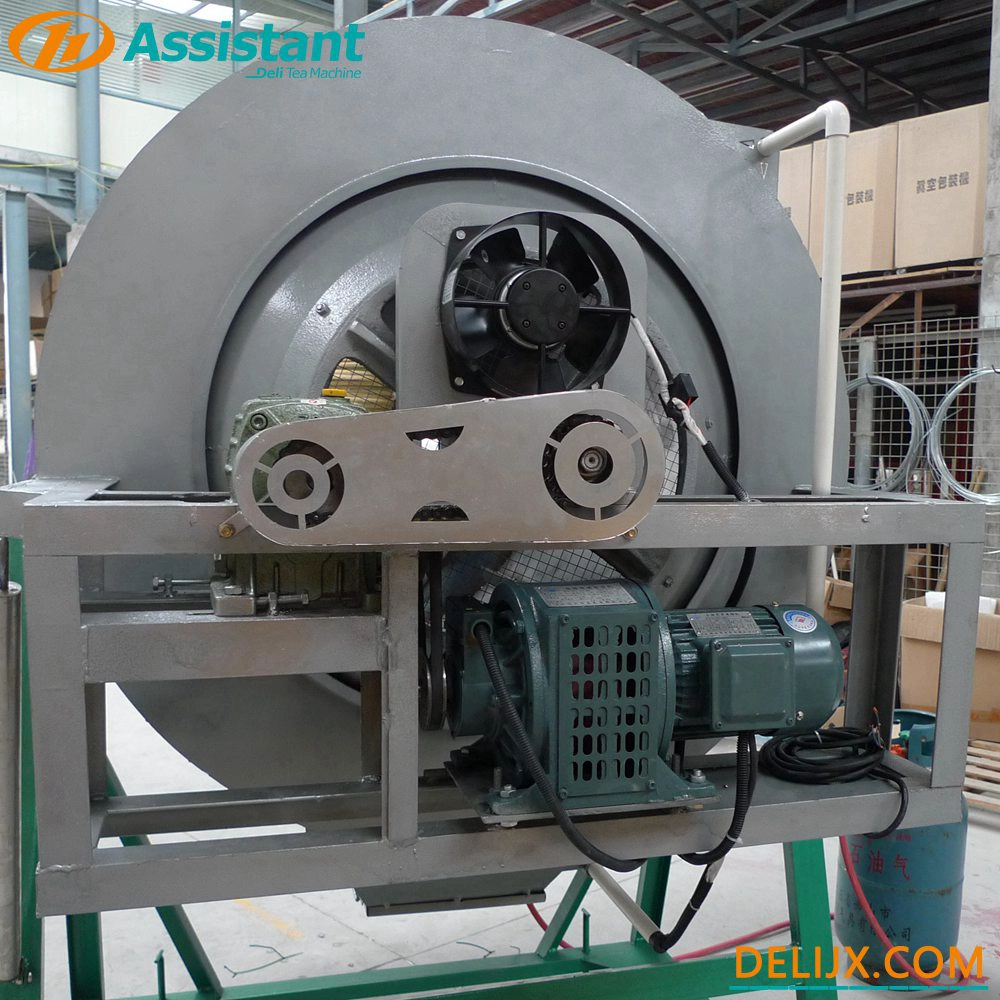

Optimized deceleration system, the machine speed is stable, while ensuring that the torque is large enough and running smoothly.

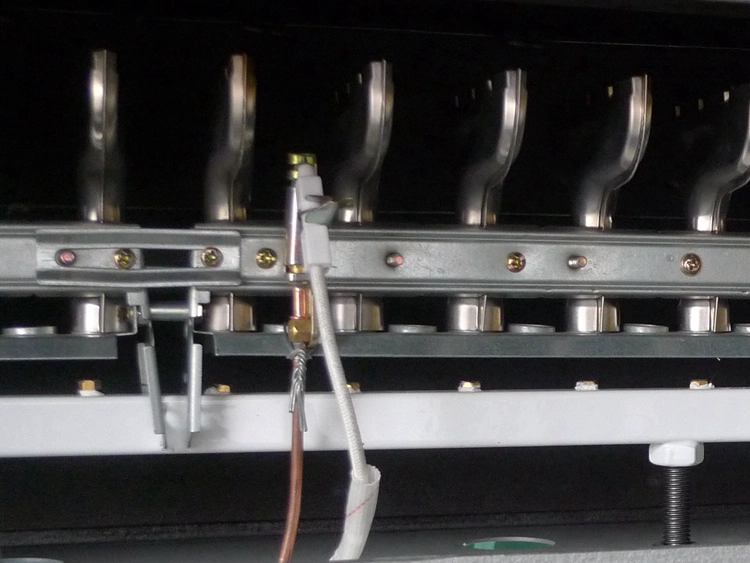

Preserve the design of the combustion head of the constant burning flame, reserve the constant burning flame after the ignition is successful, re-ignite from the constant burning flame, reduce the pressure of the ignition needle and the ignition coil, and improve the service life.
Using 2.5mm ultra-thick steel plate, the temperature change is small and good heat preservation, the tea leaf will not be damaged, ( other factory only use 1.6mm steel plate )

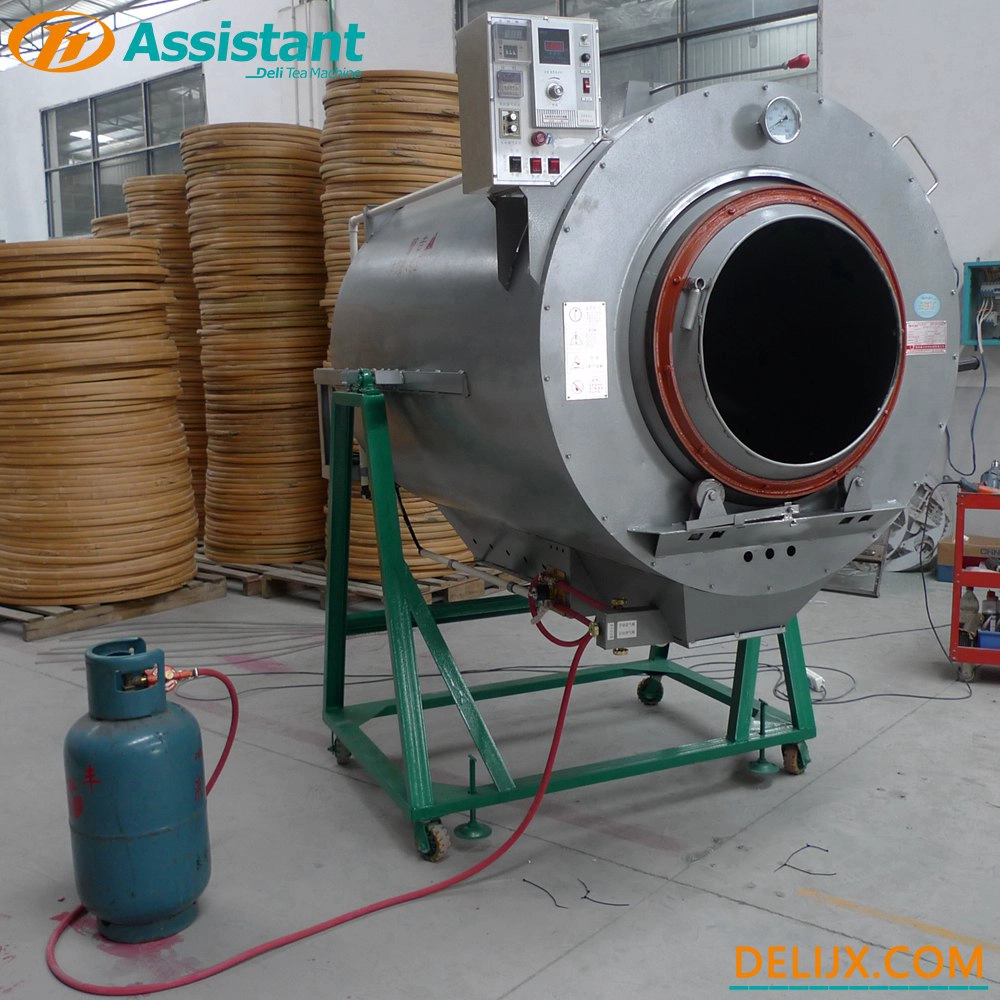

PHOTOS
